SEL-5020 SETTINGS ASSISTANT SOFTWARE FOR LEARNING, SETTING, AND
COMMUNICATING WITH THE SEL-2020
The SEL-5020 Settings Assistant is a graphical user interface that provides an intuitive
Windows
®
environment for setting and communicating with the SEL-2020. The SEL-5020 helps
the user create or edit settings and establish communications (using a serial connection) between
the SEL-5020 on the PC and the SEL-2020. Complex strings and SEL
OGIC control equations are
facilitated using String and Expression Builders in the SEL-5020. While special software is not
required to communicate with and set the SEL-2020, the SEL-5020 can be a valuable tool,
especially when programming multiple SEL-2020s.

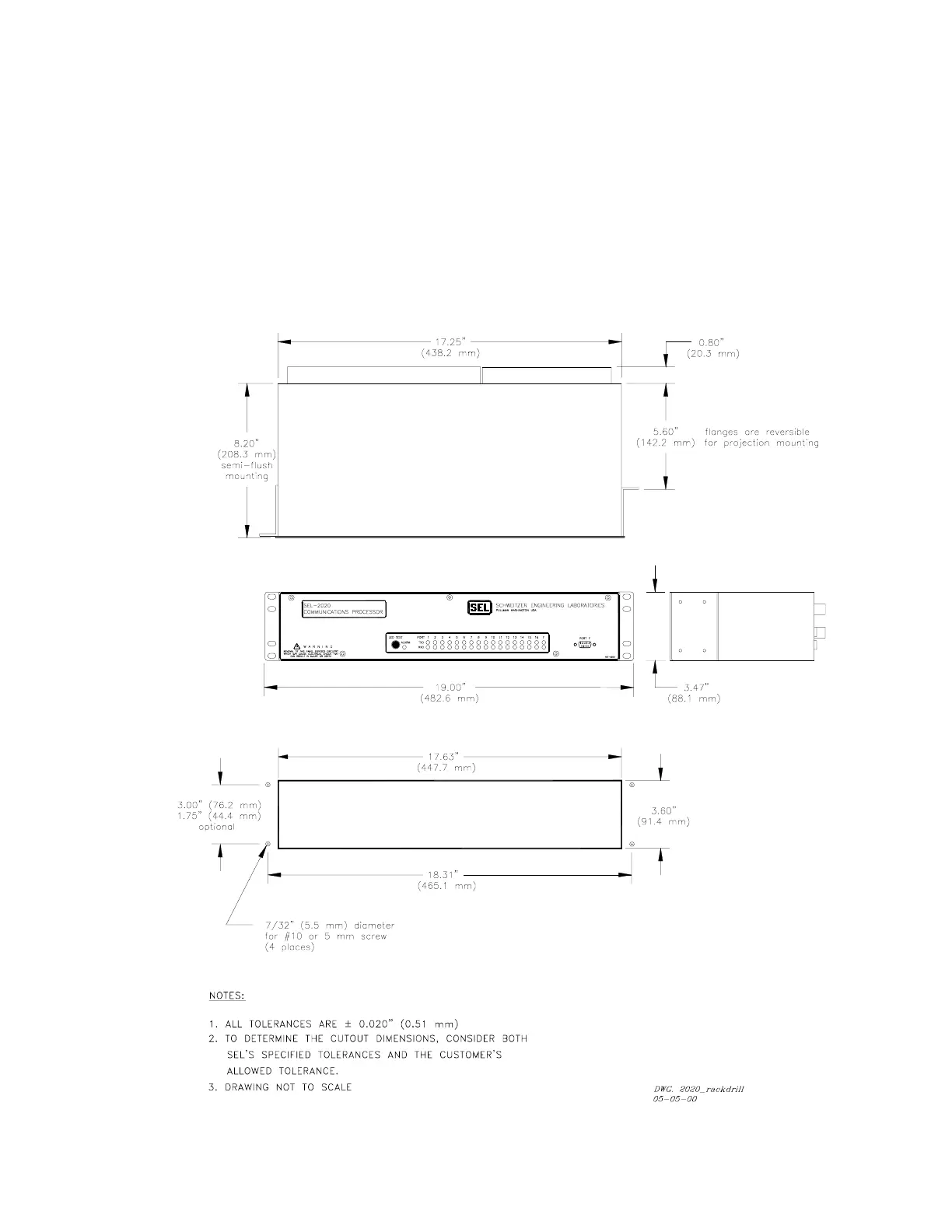

Figure 5: SEL-2020 Dimensions, and Drill Plan for Rack-Mount Model
