Schwing CPC III - Cable;Radio Remote Box

14
Operation
CPC III Manual

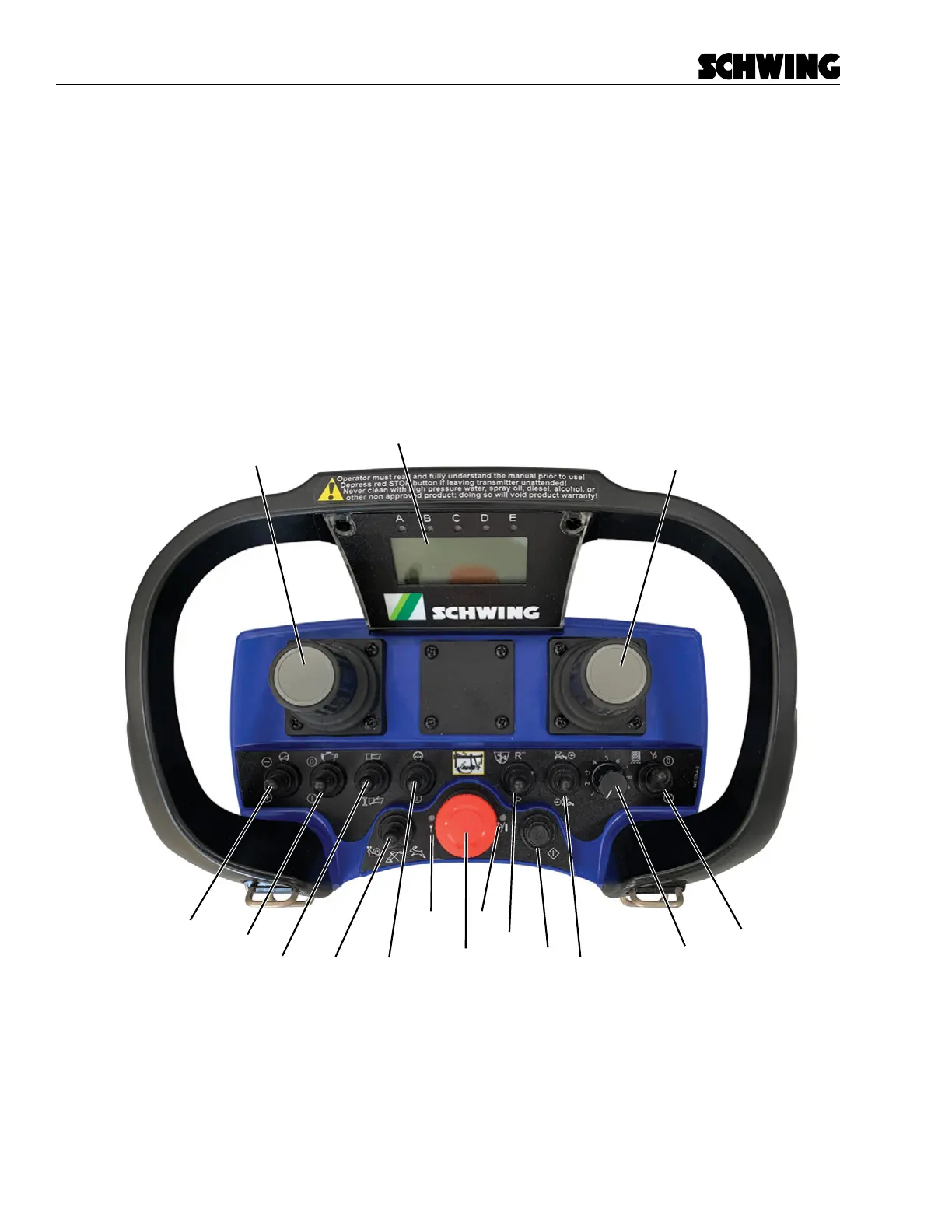

Cable/Radio Remote Box
A. LCD Display
B. Joysticks
C. Throttle Up / Down Switch
D. Engine Start / Stop Switch (disabled)
E. Horn / Reset Switch
F. Boom Speed Selector Switch
G. Compressor / Water Pump Switch
H. LED Antenna Light
I. Emergency Stop Button (E-Stop)
J. LED Power/Battery Indicator Light
K. Agitator Forward / Reverse Switch
L. Power On Button
M. Concrete Pump Forward / Reverse Switch
N. Stroke Limiter Dial
O. Vibrator On / O󰀨 Switch
