Schwing CPC III - LCD Screens; Homepage Screen - with Installed Options; Menu Screen

8
Operation
CPC III Manual
LCD Screens

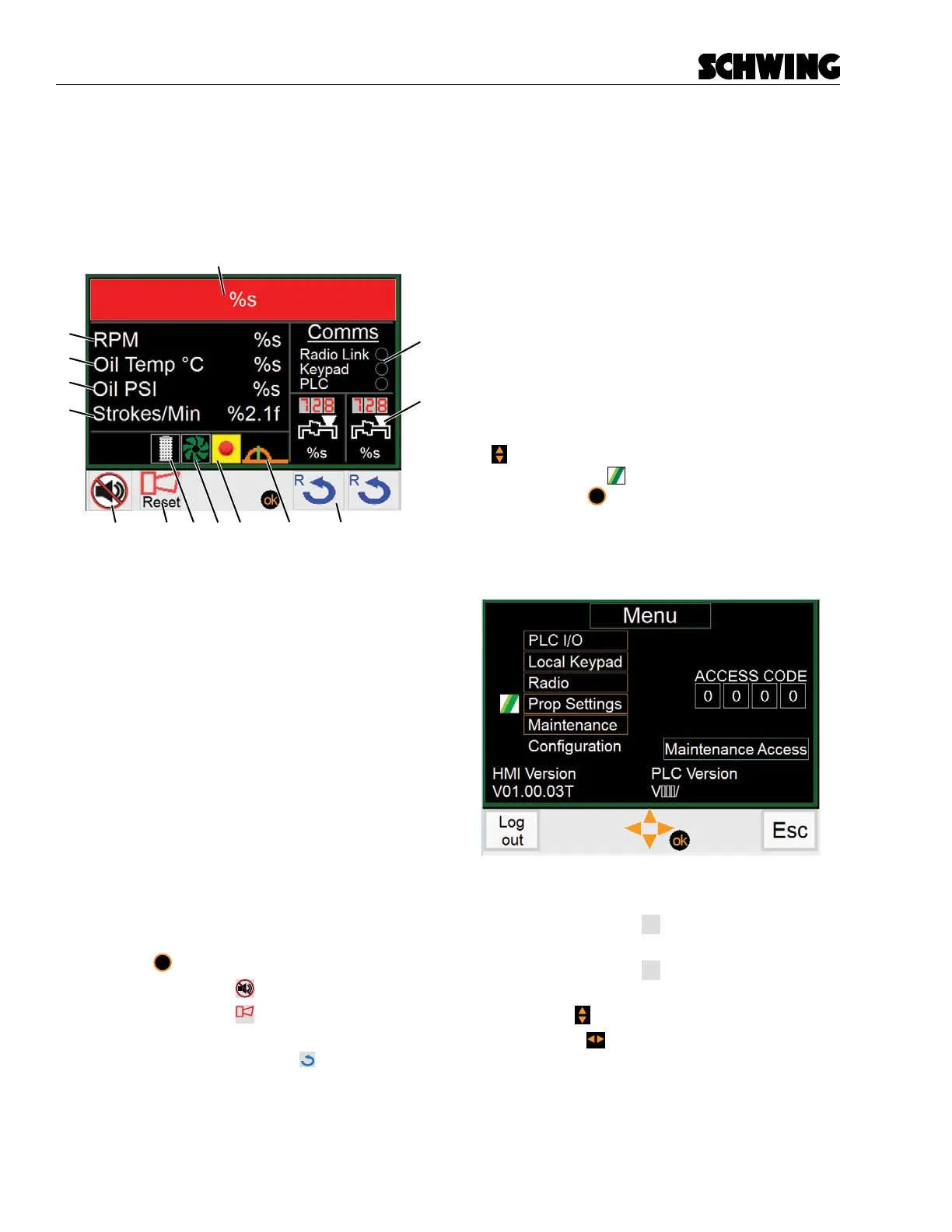

Homepage Screen - with installed options
When the ignition switch is engaged, power will be sup-
plied to the CPC III Controller. The Homepage screen
will appear on the HMI LCD display.
B
N
M
C
D
E
F
G
L
A
H
I
J
K
Displays:
A. Status Message Display
B. RPM
C. Hydraulic Oil Temperature
D. Oil Pressure PSI (if equipped)
E. Stokes Per Minute (if equipped)
F. Silent Alarm Symbol
G. Estop Reset Symbol (if keypad disconnected)
H. Dirty Oil Filter Indicator Symbol
I. Oil Cooler ON Symbol
J. E-Stop Pressed Symbol
K. Local / Remote Indicator Symbol
L. Stroke Counter Reset Symbol
M. Stroke Counter Indicator
N. Comms Link Indicator
Functions:
- Press
ok
to go to the Menu screen.
- Press (F1) button to silence the alarm
- Press (F2) button
Reset
to reset the E-stop (if
keypad is disabled)
- Press and hold (F4) button
R
to reset the
stroke counter
Menu Screen
The Menu Screen displays additional status, parameter
settings screens and software version:
• PLC I/O Status
• Local Keypad
• Radio
• Prop Settings
• Maintenance
• Conguration
• HMI Software Version
• PLC Software Version
A small Schwing logo indicates which menu item is
currently selected. Menu items with an orange outline
around them, don’t require a password to access. Use
the
to scroll up and down the menu items. When
you have moved the to the screen you would like to
access, press the
ok
button.
Software versions for the HMI and PLC are displayed
in the lower corners of the screen. This information is
useful for troubleshooting.
Functions:
- Press (F4) button
Esc
to return to the Homep-
age Screen.
- Press (F1) button
Log
out
to log out of Mainte-
nance Access
- Use the to scroll up/down menu items
- Press the to enter a password, if required.
