Operation
CPC III Manual

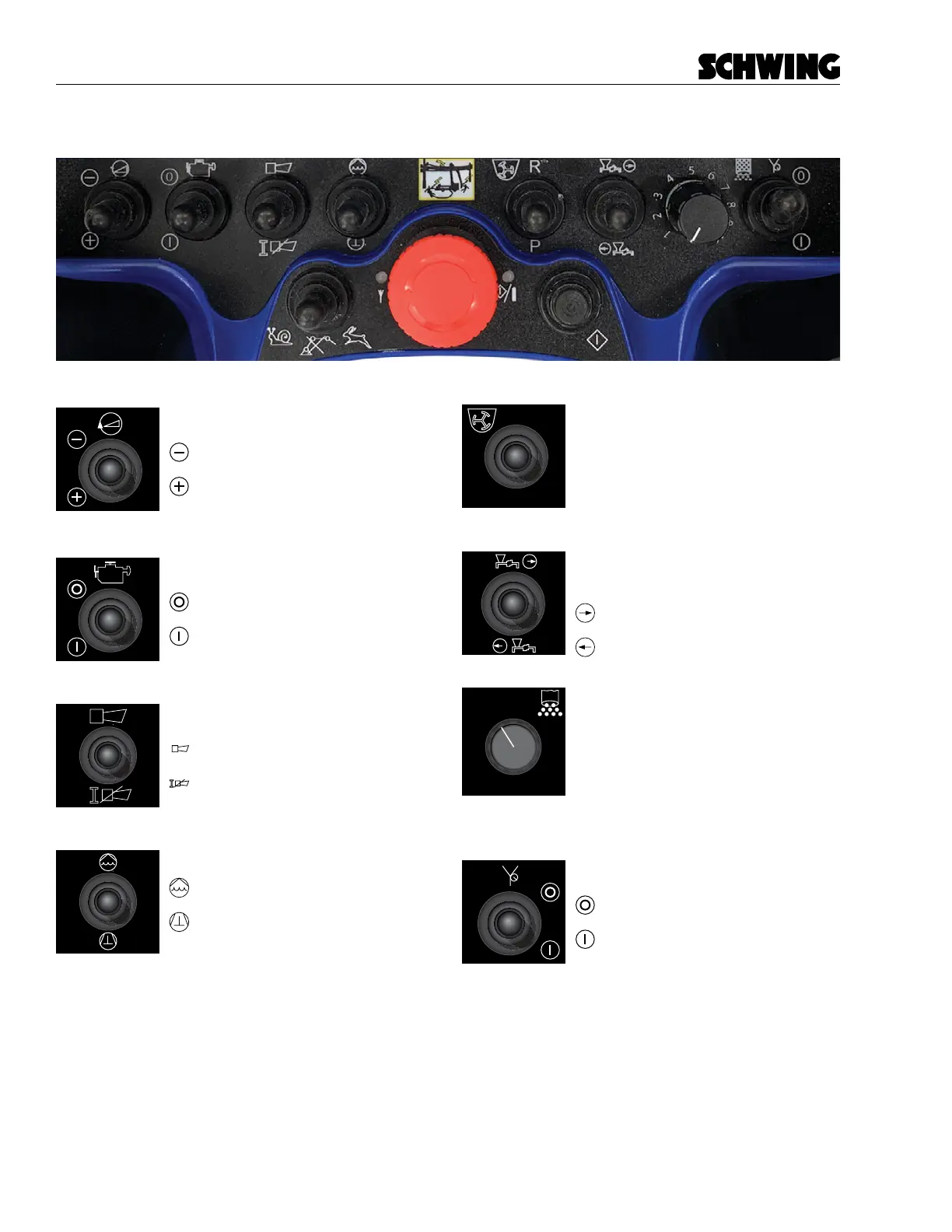

Radio/Cable Remote Buttons/Switches
Throttle Up/Down Switch
= decrease throttle
= increase throttle
Motor Start / Stop Switch (disabled)
= o󰀨 (stop)
= on (start)
Horn / Reset Switch
= Activate Horn
= Horn / Reset
Water Pump / Compressor Switch
= Water Pump Activated
= Compressor Activated
R
P
Agitator Forward/Reverse Switch
R = Reverse
P = Forward
Concrete Pump Forward/Reverse
Switch
= Reverse
= Forward
5
4
3
2
1
10
9
8
7
6
Stroke Limiter Dial
Increases concrete pump strokes per
minute when turned clockwise. De-
creases concrete pump strokes per
minute when turned counter-clock-
wise.
Vibrator Switch
= o󰀨 (stop)
= Automatic (pump Fwd/Rev)
