Operation
CPC III Manual
CPC III (Concrete Pump Controller)
CPC III is a drop-in replacement of the previous CPC/
C32 systems. CPC III system is an upgraded system for
C32, CPC and CPC2, as well as all the variations and
revisions of each one. Due to this, CPC III may vary
depending on what the original system was and how
it was changed over the years and what options were
originally installed.

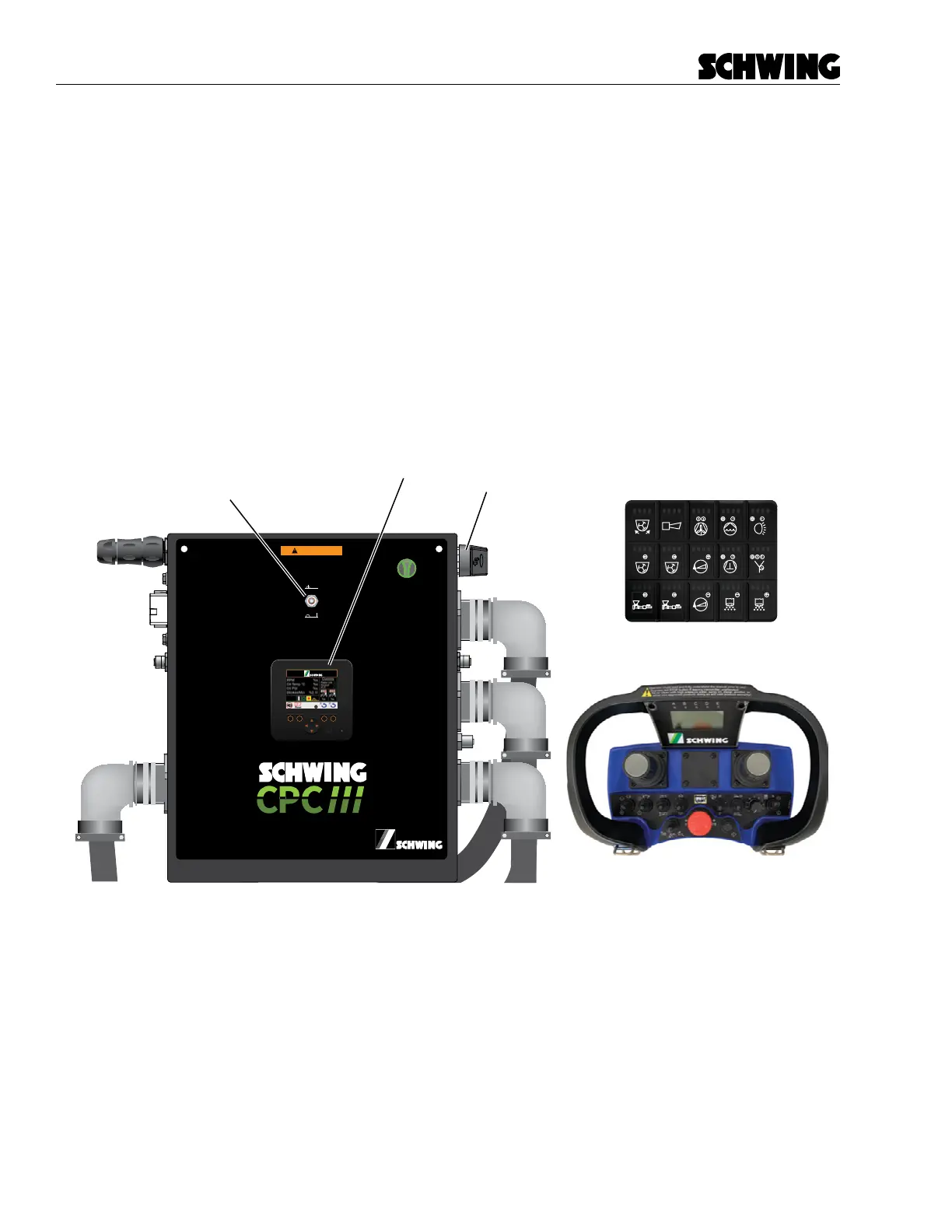

CPC III controller contains the following item:
A. HMI (Human Machine Interface)
B. Local / Remote Switch
C. Maintenance Switch
Radio/Cable Remote
Rear Control Panel
98465796-00
Panel Assembly:
Schematic:
98458772
98455320
Boom Harness
(PBC)
Radio A
(PRADA)
Front Harness
(PFC)
Rear Harness
(PRC)
Programming Port
(PPPT)
I/O Harness
(PIOE)
Oil Temperature
(POTS)
Power
(PPG)
Pairing Port
Maintenance Switch
(PMS)
Radio C
(PRADC)
OFF
ON
In Maintenance mode, all CPC
safety features will be disabled
WARNING
k
A
B
C
