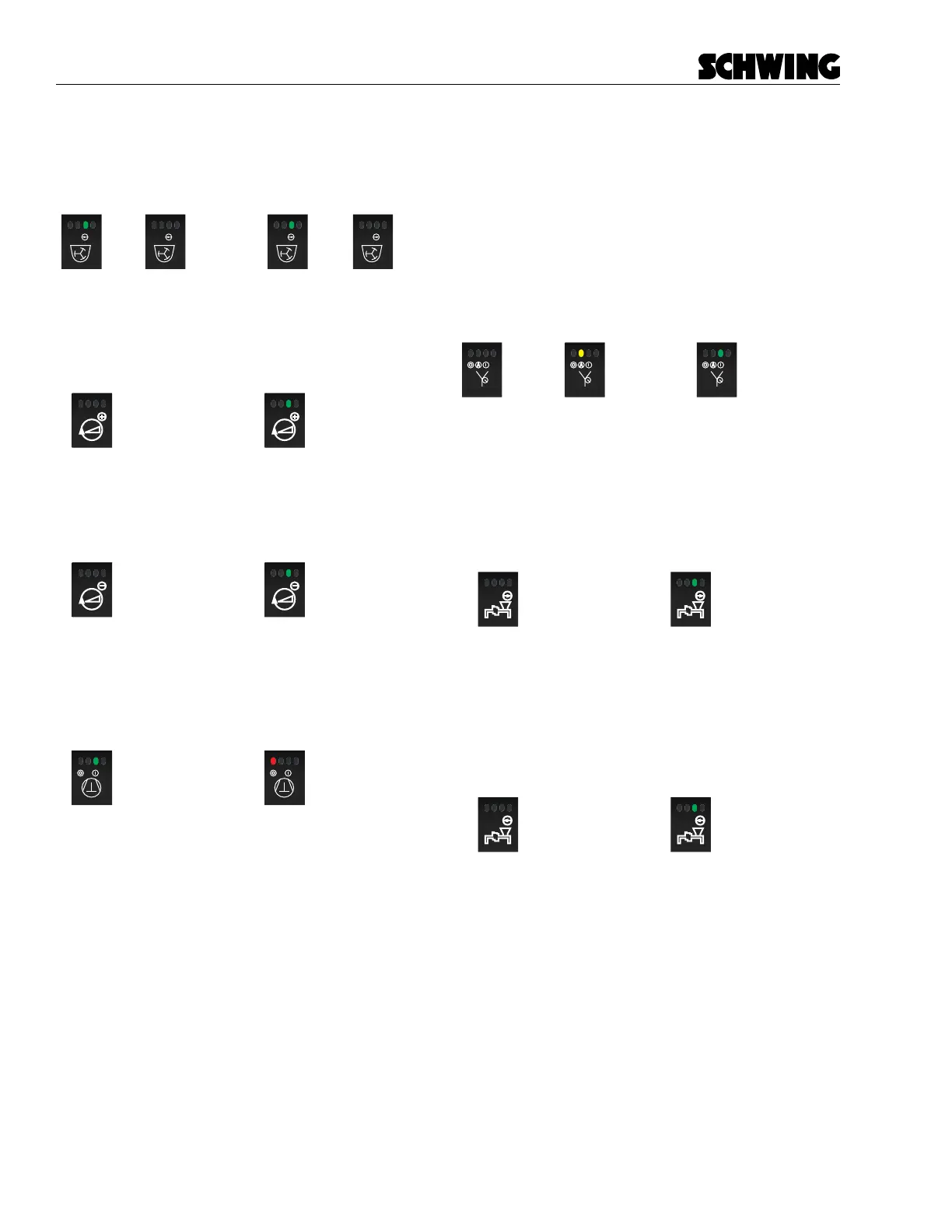

Agitator Forward / Reverse
Press to turn on the agitator in either the forward or re-
verse position - green light, press again to turn o󰀨.
= On
ReverseForward
= On
= Off
= Off
Throttle (+)
Press once to increase engine throttle. Press and hold
or press multiple times to ramp up engine throttle.
= Inactive
= Throttle (+)
(Push/Hold)
Throttle (-)
Press once to decrease engine throttle. Press and hold
or press multiple times to ramp down engine throttle.
= Inactive
= Throttle (-)
(Push/Hold)
Compressor On/O󰀨
Press to turn on the compressor - Green light. Press
again to shut the compressor o󰀨 - Red light.
= On
= Off
Vibrator Auto/Manual/O󰀨
This button works in conjunction with the Concrete
Pump-Forward and Reverse button. When the Vibrator
Auto button is pressed once, the Vibrator will turn on
when the concrete pump is in the forward or reverse
position. When the concrete pump is o󰀨, the vibrator
will shut o󰀨. If you press the vibrator button again, the
vibrator will be in manual mode and will run until the
vibrator is shut o󰀨. Pressing the button a third time will
turn the vibrator o󰀨.
= Vibrator
OFF
= Vibrator Auto
ON
= Vibrator Manual
ON
Concrete Pump - Forward
Puts the concrete pump into forward. This is called the
pumping position. Press once to put the concrete pump
in forward. If the concrete pump is in reverse, press and
hold to change from pump reverse to pump forward.
= Inactive
= Pump/Forward
Concrete Pump - Reverse
Puts the concrete pump in the reverse. This is typically
used for cleaning out or unclogging jams in the pipeline.
Press once to put the concrete pump in reverse. If the
concrete pump is in forward, press and hold to change
from pump forward to pump reverse.
= Inactive
= Pump/Reverse
