Schwing CPC III - Page 28

28 CPC III Manual
Material-Nr./Part-No.: Version:
Anziehdrehmomente für Schrauben,
Muttern, Verschraubungen und
Hydr.-Schläuchen sind im Vorwort,
soweit nicht anders angegeben.
The preface include tightening torques
for screws, nuts, fittings and hydr. hoses
unless otherwise indicated.
Datum/Date:
98458772
00
17.12.2020
210
90, 91, 92
90, 91, 92
90, 91, 92
120
Install
M12
Bulkhead
Place Tape Over
Key to Prevent it
from Falling out
During Installation.
50
Use Decal Names for
Connector Locations
JPPT
Programming CAP
98465796-00

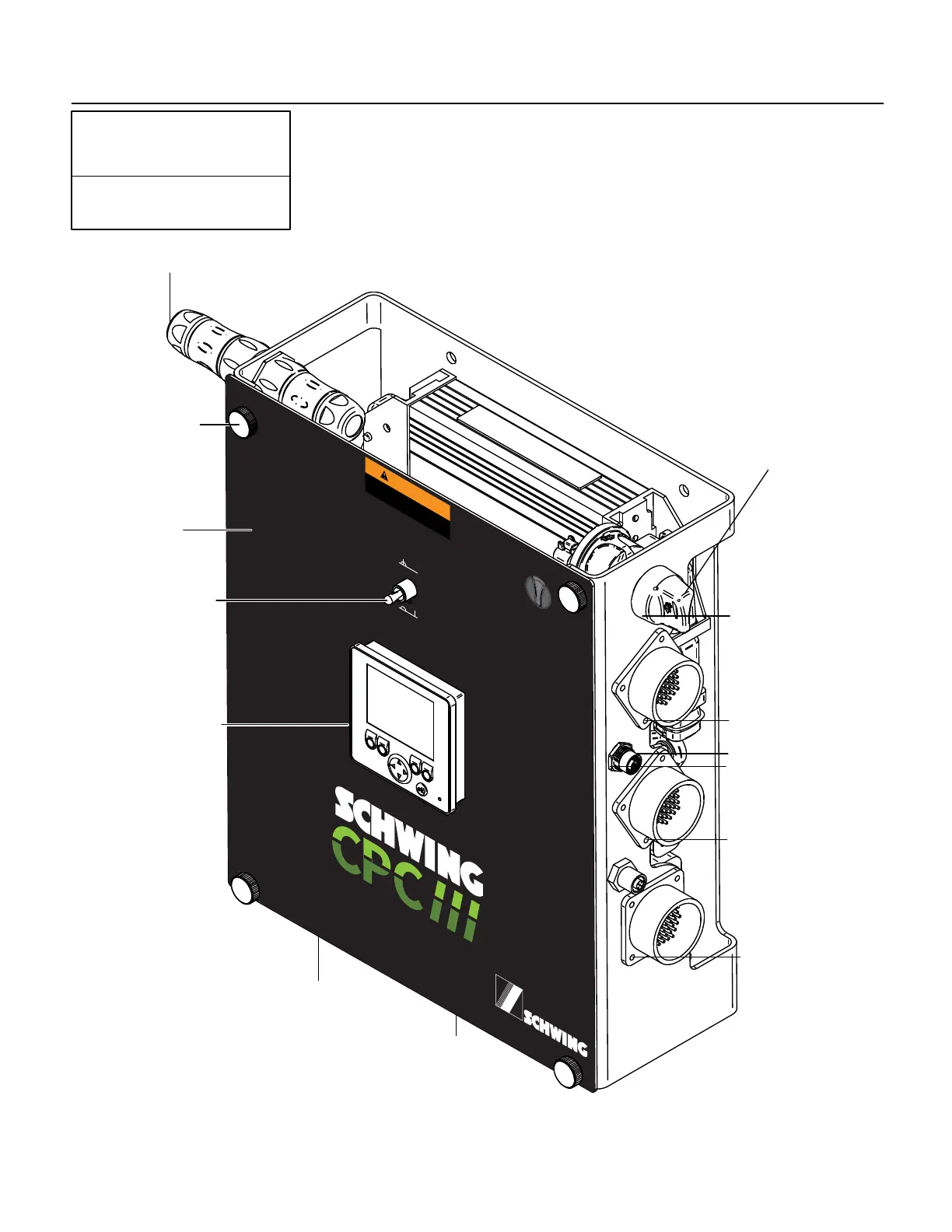

Panel Assembly:
Schematic:
98458772
98455320
Boom Harness
(PBC)
Radio A
(PRADA)
Front Harness
(PFC)
Rear Harness
(PRC)
Programming Port
(PPPT)
I/O Harness
(PIOE)
Oil Temperature
(POTS)
Power
(PPC)
Pairing Port
Maintenance Switch
(PMS)
Radio C
(PRADC)
OFF
ON
In Maintenance mode, all CPC
safety features will be disabled
WARNING
51 (4X)
230
52
Install Decal
190, 191
