30 CPC III Manual

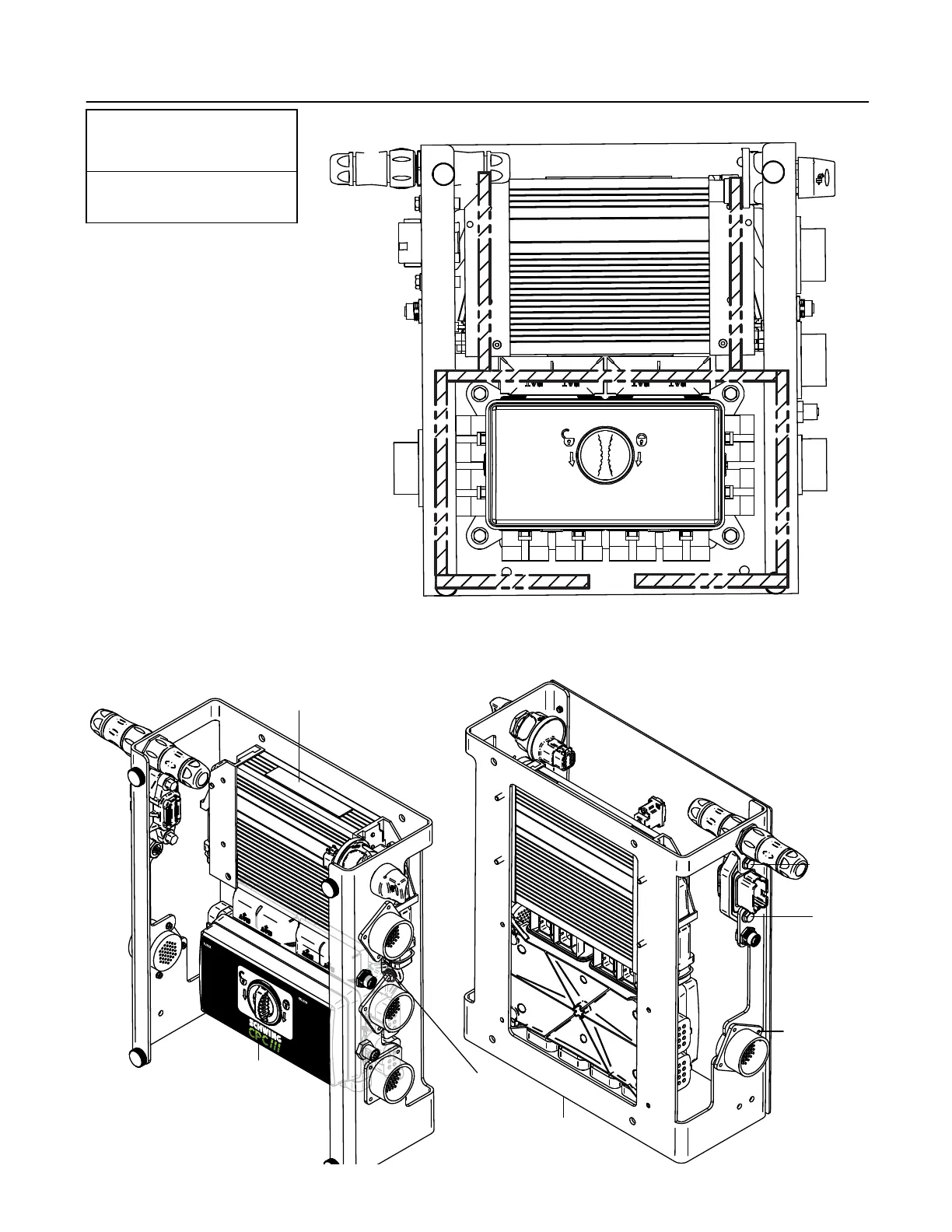

Install Harness (Item 60)
According to Images
Harness Routing
Use Zipties to Secure Harness out of the way.
Do NOT Block the PDM Cover
Material-Nr./Part-No.: Version:
Anziehdrehmomente für Schrauben,
Muttern, Verschraubungen und
Hydr.-Schläuchen sind im Vorwort,
soweit nicht anders angegeben.
The preface include tightening torques
for screws, nuts, fittings and hydr. hoses
unless otherwise indicated.
Datum/Date:
98458772
00
17.12.2020
130, 131
150, 151
Install PDM
Decal on Cover
90, 91, 92
10
70, 71
70, 71
152, 153
98465798-00
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
VIBRATOR (15A)
CONTROLLER POWER (5A)
CONTROLLER POWER (10A)
VBB0 (10A)
VBB1 (10A)
VBB2 (10A)
VBB3 (10A)
OIL COOLER (30A)
VBB4 (10A)
RADIO (5A)
HOPPER LIGHT (10A)
SENSORS (7.5A)
HANDVALVE E-STOP (5A)
RADIO E-STOP (5A)
REAR E-STOP (5A)
BOOM HORN (15A)
TOWER HORN (10A)
DISPLAY (2A)
HOPPER SWITCH (2A)
SLEW LIMITS (10A)
I/O HARNESS (10A)
K1
K2
K3
K4
-
-
-
-
VIBRATOR
OIL COOLER
BOOM HORN
TOWER HORN
