Schwing CPC III - Page 50

DATE
SHEET NUMBER
REV.
SIZE
DRAWING NUMBER
B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
A
B
B
C
C

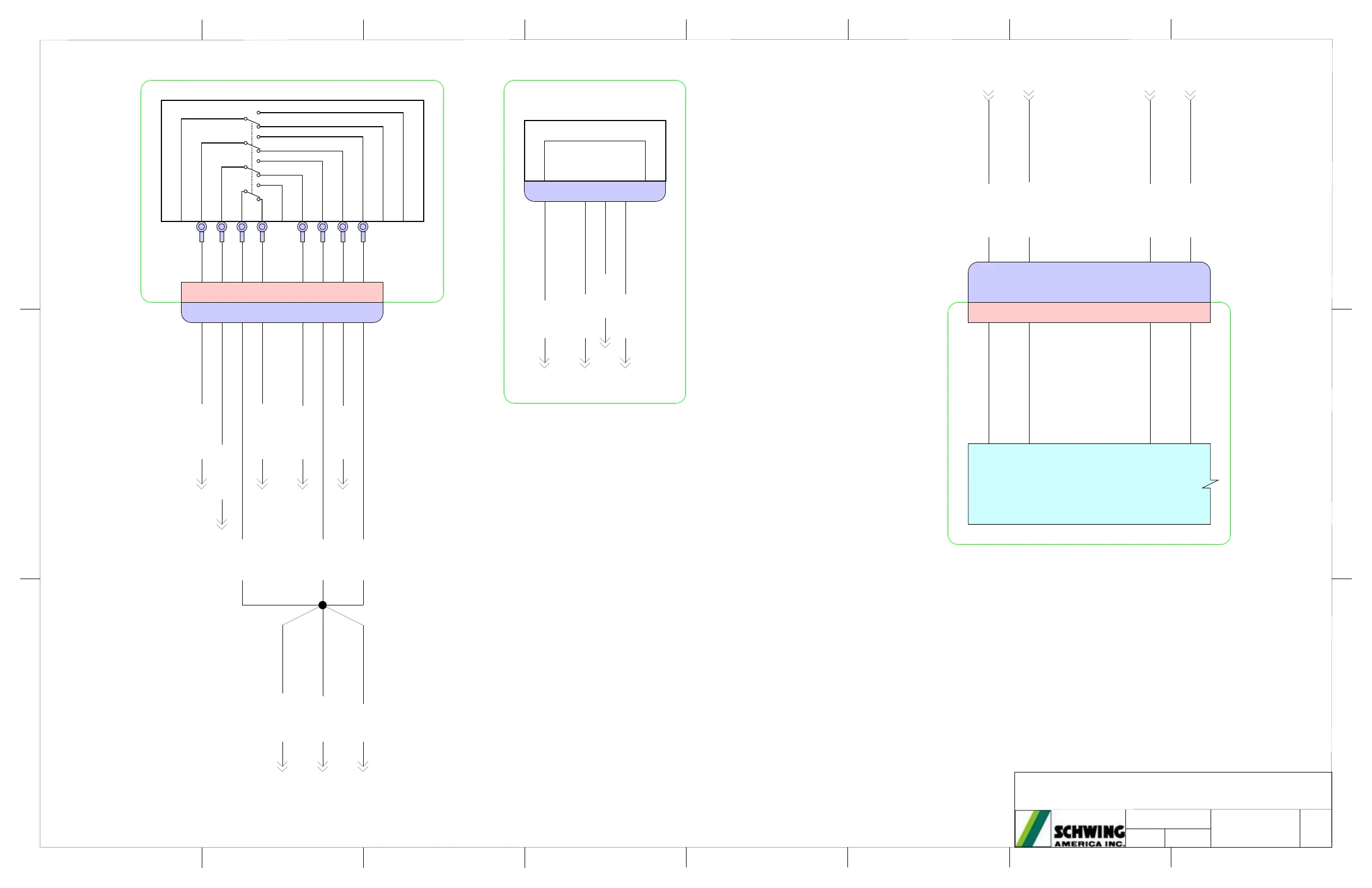

Schematic CPC3
01
98455320
18 of 18
6/10/20
98463189
98461655
ONLY REQUIRED IN
OVERRIDE MODE
OVERRIDE SWITCH
T9
-
T2
-
T5
-
T4
-
T7
-
T6
-
T8
-
T1
-
PPRS
4 2 1 3 5 6 8 7
JPRS
4 2 1 3 5 6 8 7
SP17
CABLE C
2 4 3 5
PRADC
2-WHT
4-BLK
3-BLU
5-GRY
PMS
1 4 5 2 3 6
PENDANT/RADIO SWITCH
2 1
3
5
4
68
7
9
11
10
12
4PDT TOGGLE SWITCH
P
P
P
P
R
R
R
R
RADIO RECEIVER
E-STOP CH1 OUT
E-STOP CH1 IN
E-STOP CH2 OUT
E-STOP CH2 IN
MAINTENANCE SWITCH
98449359
1 2
3
4
5
6
BATT
BATT
IGN
IGN
ACC START
PPRS:5-SP17
RD 0.8mm²
PPRS:2-SP17
RD 0.8mm²
PPRS:8-SP17
RD 0.8mm²
PLCEX:40-PPRS:1
WH 0.8mm²
P7/B-5
PLCST:54-PPRS:4
RD 0.8mm²
P4/B-7
PLCST:35-PPRS:7
RD 0.8mm²
P4/B-6
PRADC:2-PPRS:3
WH 0.8mm²
P18/C-3
PRADC:4-PPRS:6
BK 0.8mm²
P18/C-2
PMS:1-SP17
RD 0.8mm²
P18/B-5
PDM12:F-SP17
RD 0.8mm²
P3/A-3
PLCEX:10-SP17
RD 0.8mm²
P14/B-1
PMS:1-SP17
RD 0.8mm²
P18/A-7
PDM4:C-PRADC:3
BU 0.8mm²
P3/A-7
PDM4:F-PRADC:5
GY 0.8mm²
P3/A-6
PRADC:2-PPRS:3
WH 0.8mm²
P18/B-7
PRADC:4-PPRS:6
BK 0.8mm²
P18/B-7
PMS:3-PDP1:2
WH 0.8mm²
P8/C-7
PMS:4-PDP2:2
WH 0.8mm²
P8/C-8
PMS:5-PDP3:2
WH 0.8mm²
P9/C-8
