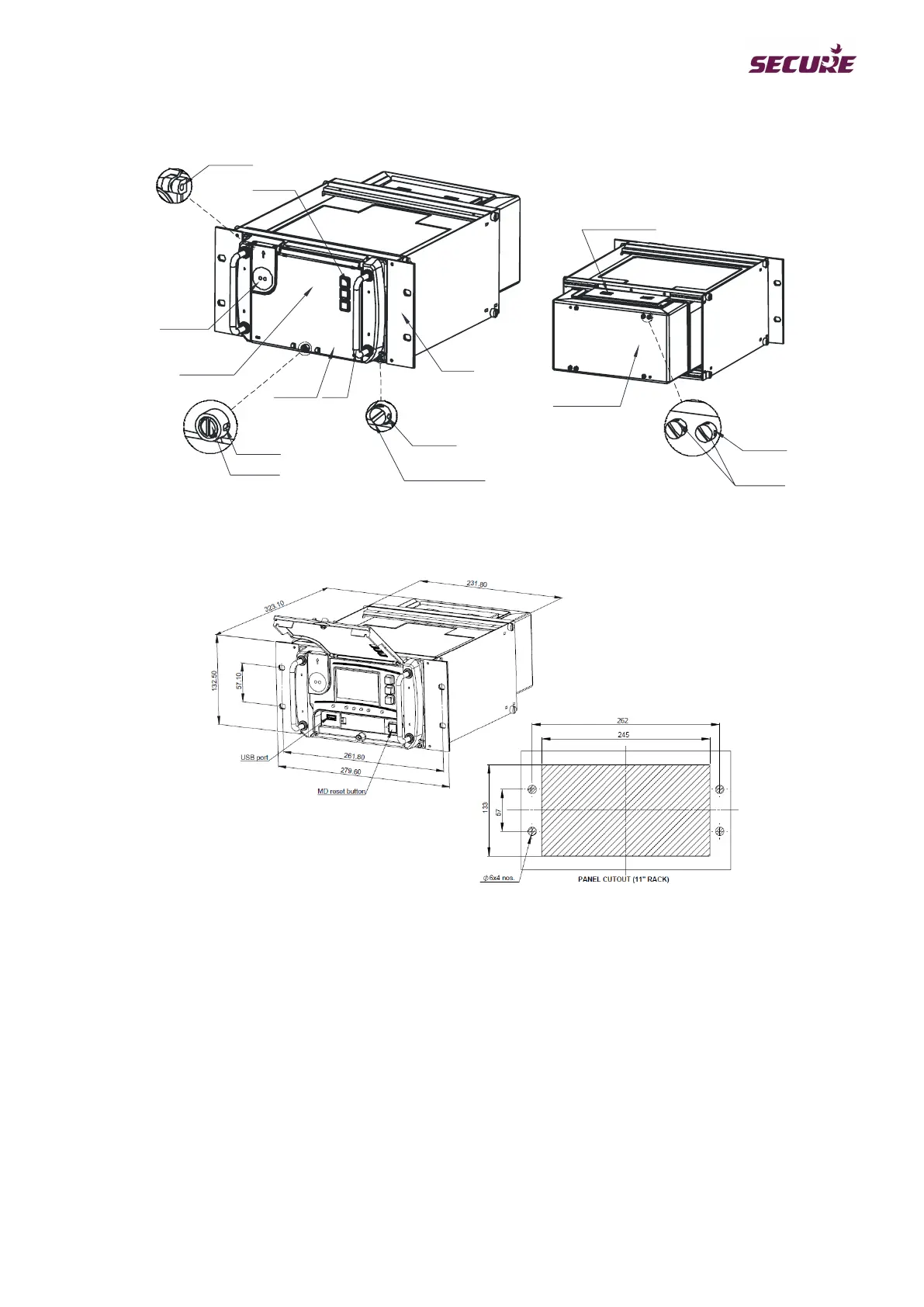

The following diagrams show the front and rear sealing points.
1107
Sealing cover
Push button
Hinge cover Handle
Display window
(68mmx42mm)
Rack 11''
Sealing screw
Sealing hole
Sealing hole
Sealing screw for front
cover and rack
sealing (2 locations.)
Back sealing cover
Connector mounting
back plate
Sealing screw
(2 locations)
Sealing hole
Sealing hole
The following diagrams shows the Apex 100 Rack mounted with panel cut out details.
Figure 21: Panel cut out details
