BGX501-742-R01, APEX100 User Manual
4 Using the Display
There are two types of display: Auto Scroll and Manual Mode. The two types of display and their associated
settings and parameters are discussed in this section. All single parameters, e.g. voltage, will be displayed with
their OBIS codes.

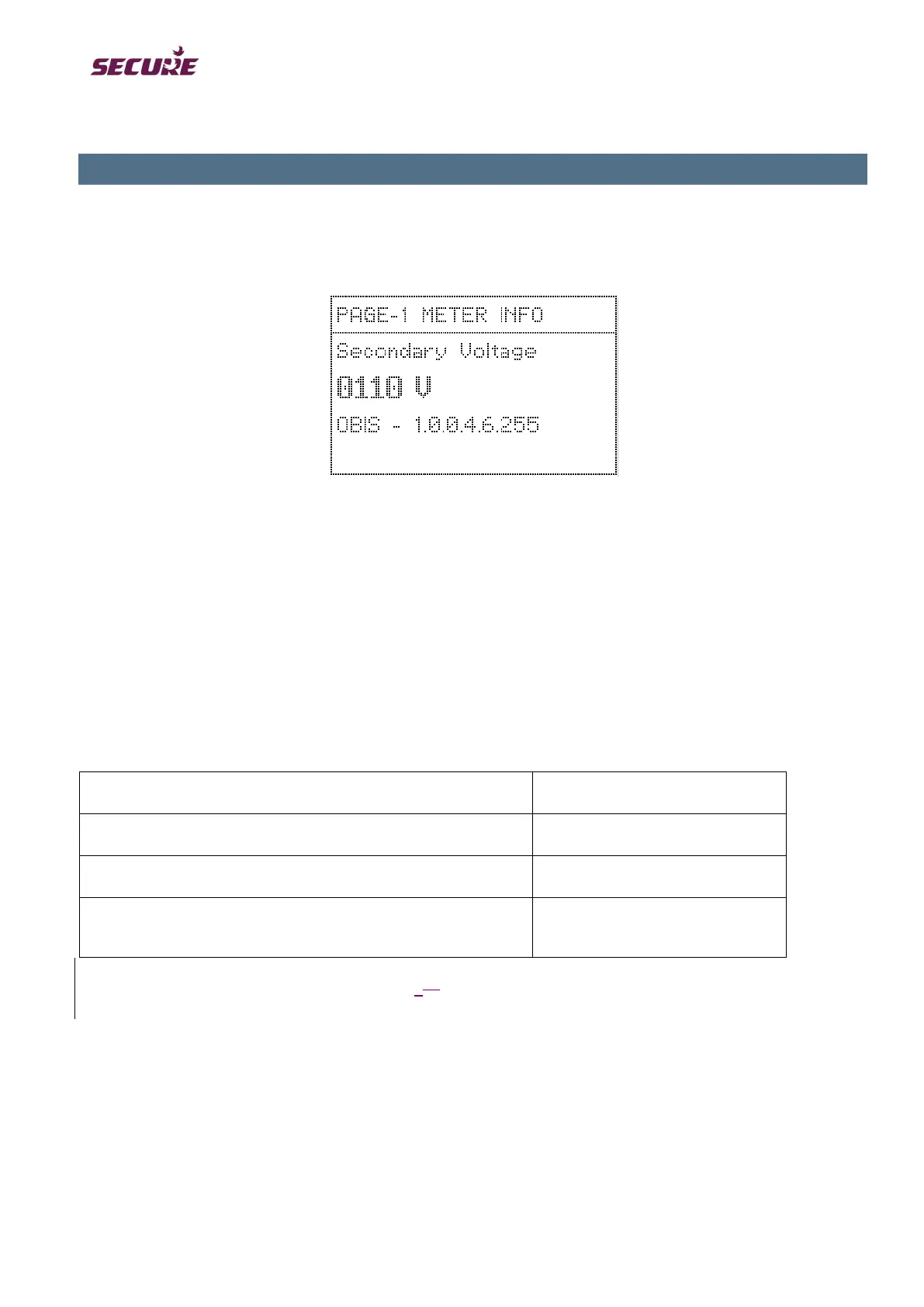

Figure 23: Example screen showing OBIS code
4.1 Auto Scroll
Auto Scroll is the default mode. A maximum of two hundred parameters can be selected for this mode. The
display time out time can be configured in the field using M-Cubed or by the display keys. Once the display
button is pressed, the Auto Scroll mode will be interrupted and will switch to manual mode. If no button is
pressed in manual mode, the display will time out time and revert to auto mode. The display will resume from
the last displayed parameter or from the first parameter, (depending on the configuration). The default time out
configurations are shown below. The LCD is not backlit in idle mode.
Default Timeout Duration (Sec)
Time Out in auto scroll mode for switching display screens
Time Out in auto scroll mode after one complete display cycle
Time Out of manual mode display (switching to auto if no key is
pressed)
Table 310: Timeout Settings
4.2 Manual
Display parameters are grouped in to a number of pages. Each page parameters can be individually selected. A
total number of 200 parameters can be assigned in manual mode.
