5 Metering
5.1 Quadrant Metering
The Apex 100 conforms to IEC 62053-23 for quadrants see Figure 30Figure 29.

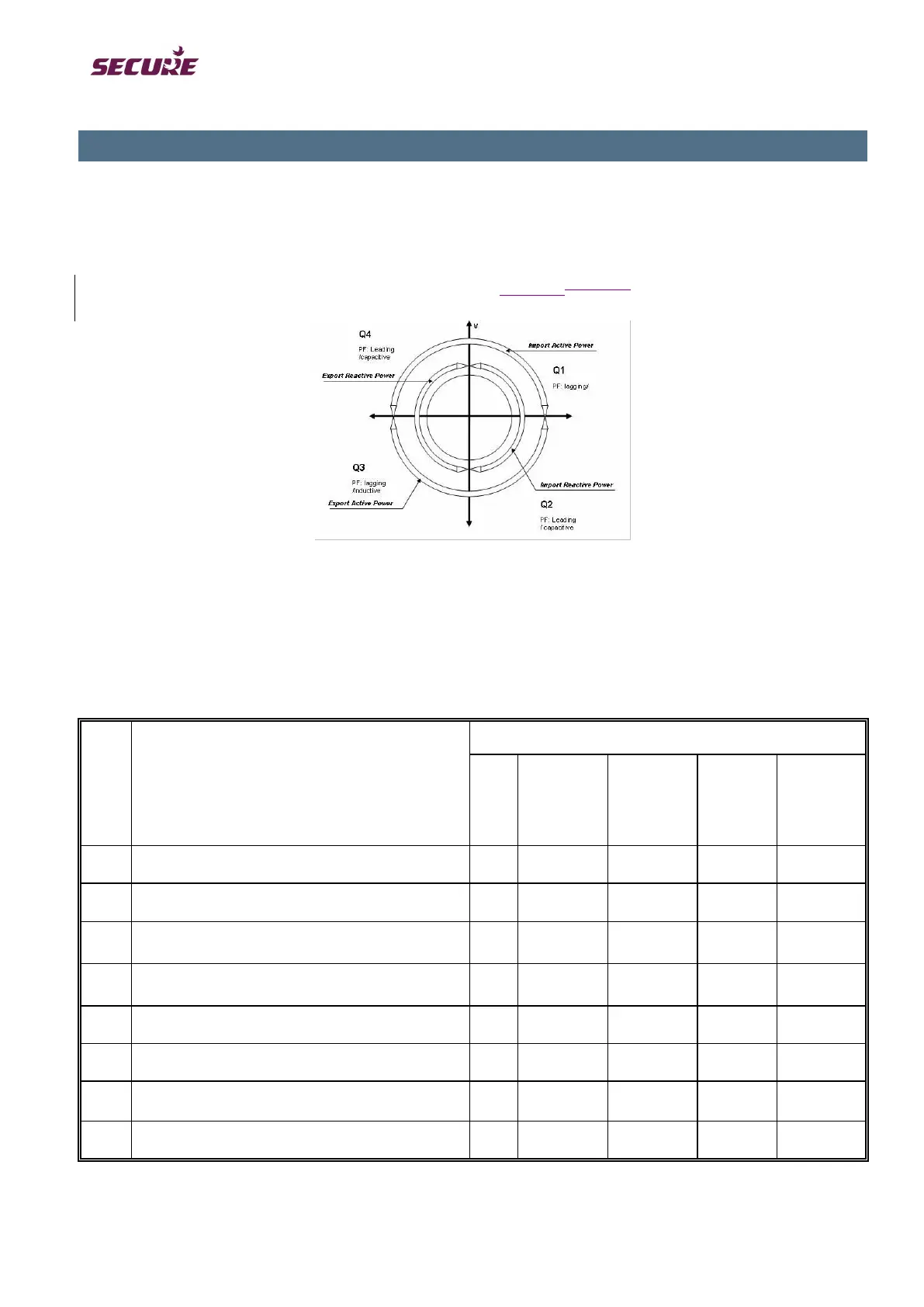

Figure 30: Quadrant Metering
5.2 Energy Registers
The Energy Channel Registers with their availability are shown in the table below.
Sl.
No.
Name of the Energy register
Availability for
Dis
play
TOD
MD
Register
TOD
Rate
Register
Load
Survey
Daily
Energy
Register
1.
Active Import Total (Q1+Q4)
Y
Y
Y
Y
Y
2.
Active Export Total (Q2+Q3)
Y
Y
Y
Y
Y
3.
Active Import Fundamental (Q1+Q4)
Y
Y
Y
D
D
4.
Active Export Fundamental (Q2+Q3)
Y
Y
Y
D
D
5.
Reactive Import while Active Import – Q1
Y
Y
Y
D
D
6.
Reactive Import while Active Export – Q2
Y
Y
Y
D
D
7.
Reactive Export while Active Export – Q3
Y
Y
Y
D
D
8.
Reactive Export while Active Import – Q4
Y
Y
Y
D
D
