BGX501-742-R01, APEX 100 User Manual
Page 13 of 104
2.2 Rear Details of Meter

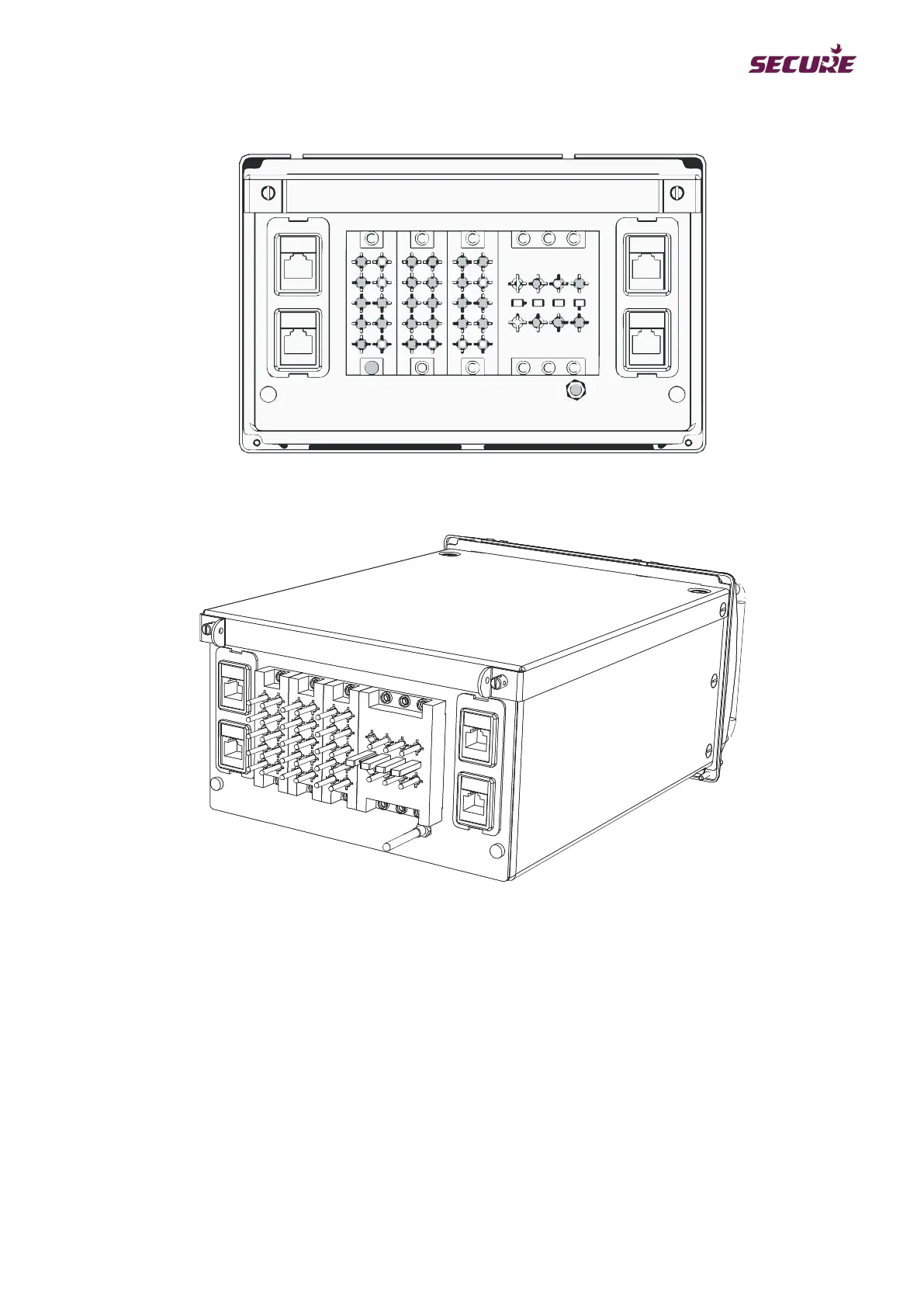

Figure 9: Rear view showing connectors
Figure 10: Rear Isometric View
Rear Connections
The Apex 100 uses standard Essailec connectors with the following connections:
1. Connector for current & voltage terminals (6+4 pins)
2. Pulse i/o pins (Table shows the five possible variants)
3. Auxiliary pins (4 terminals for AC supply & 2 terminals for DC supply)
