BGX501-742-R01, APEX100 User Manual
PICS

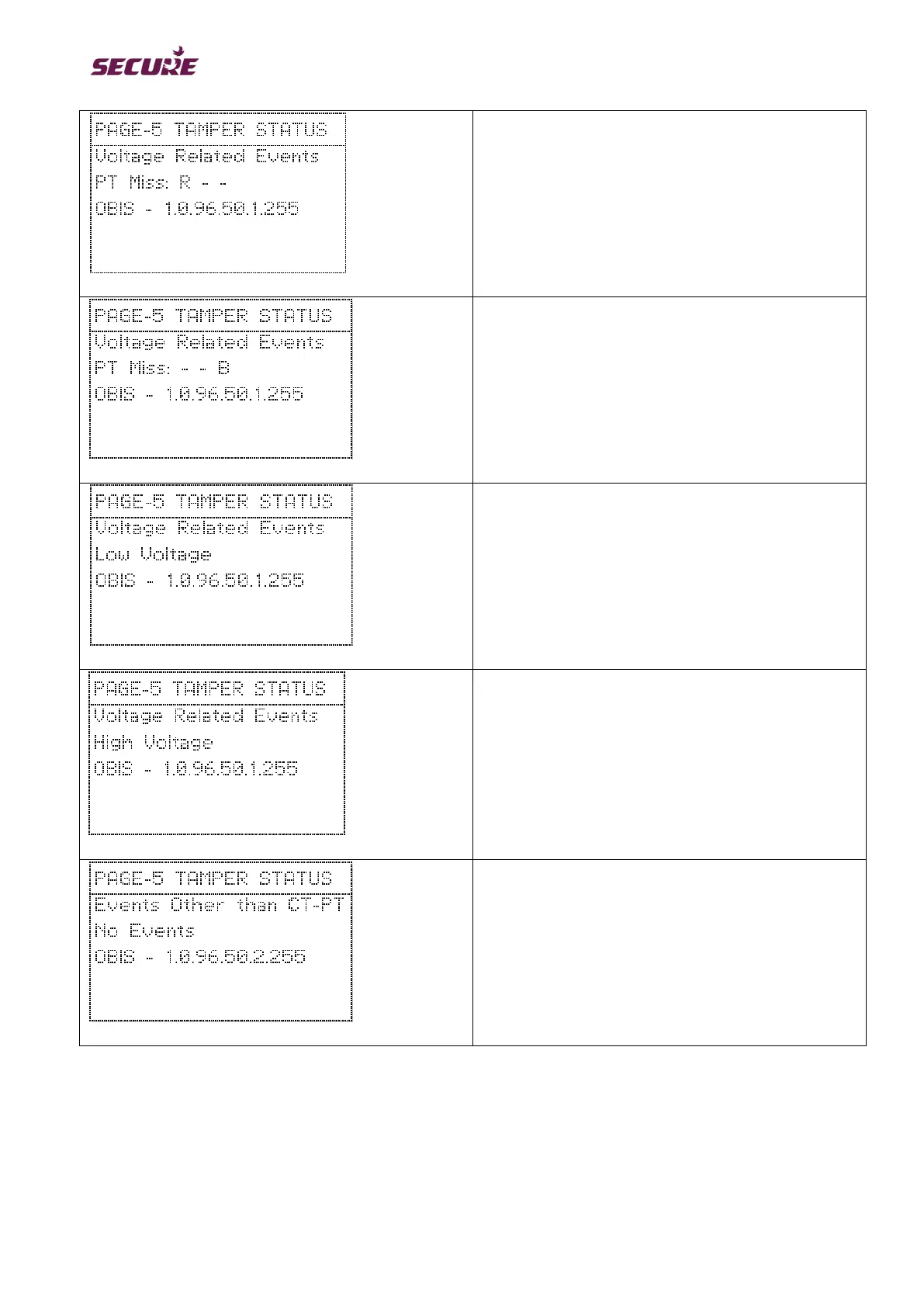

This screen will display if an R-phase PT missing
event has been detected.
This screen will display if a B-phase PT missing event
has been detected.
This screen will display if a voltage related event has
been detected.
The display indicates a low voltage event has
occurred.
This screen will display if a voltage related event has
been detected.
The display indicates a high voltage event has
occurred.
This screen will display if an event other than CT-PT
has occurred such as magnetic influence.
The display shows that no other event has been
detected.
