FUSE REPLACEMENT
122
FUSE 0.2 A 250 V
(1P SENSOR UNIT)
514-5143-200
FUSE 2 A 250 V (1P SOLENOID)
514-5143-2000
FUSE 0.2 A 250 V (2P SENSOR UNIT)
514-5143-200
FUSE 2 A 250 V
(2P SOLENOID)
514-5143-2000
2
Unlock the side service door to gain access to the fuses.
3
Identify the fuse to replace and replace with the same type and value. Failing to replace with the same type
and value will cause component damage and may cause a re.

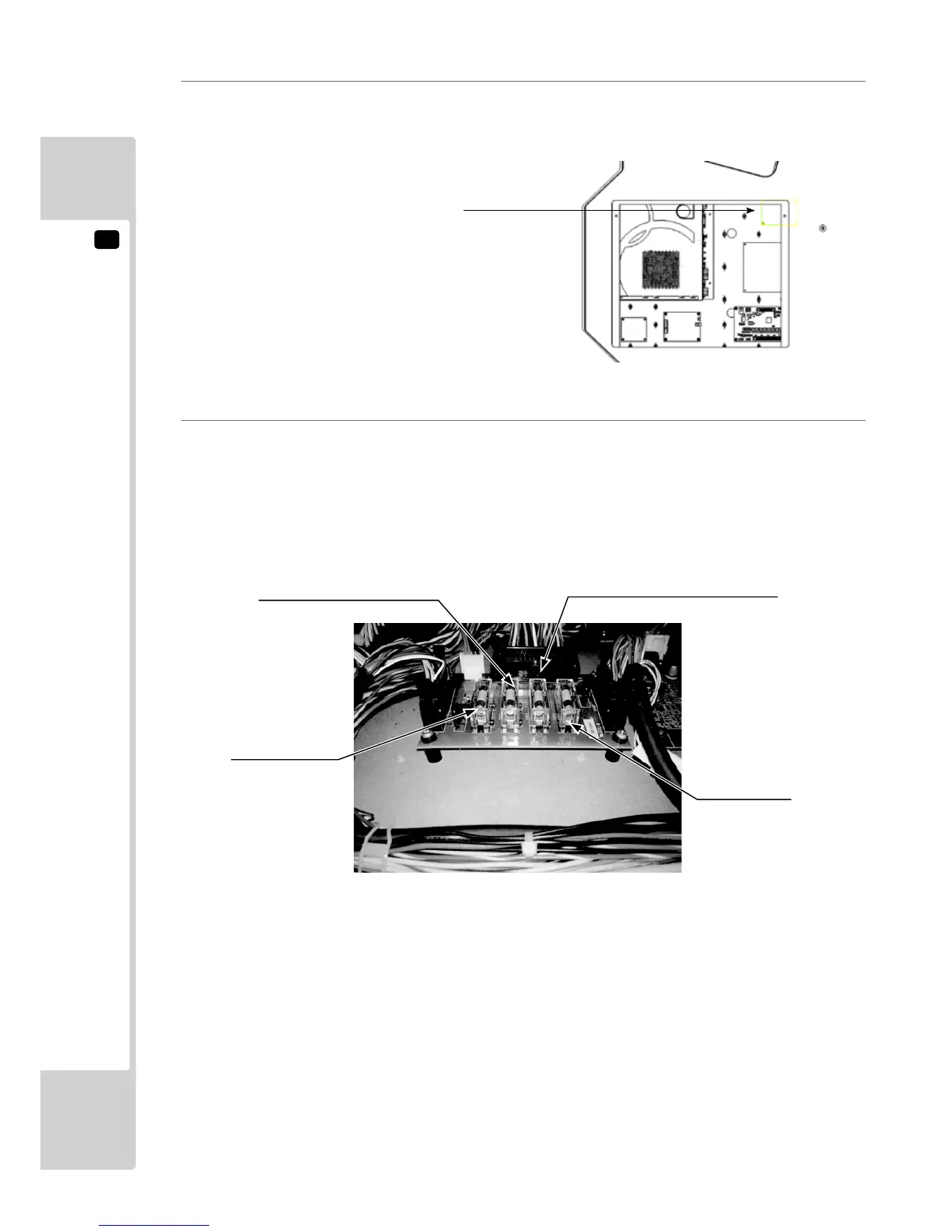

Fuse Bd Location
