1
Remove the 2x M6x20 Hex Bolt Black from the side of the cabinet where the Reector Assemblies are to
be tted.
Have another person offer the Assy Reflector L up to the cabinet and secure using the M6 Hex Bolts
removed earlier.
Carry out the same procedure for the Right Hand Side.

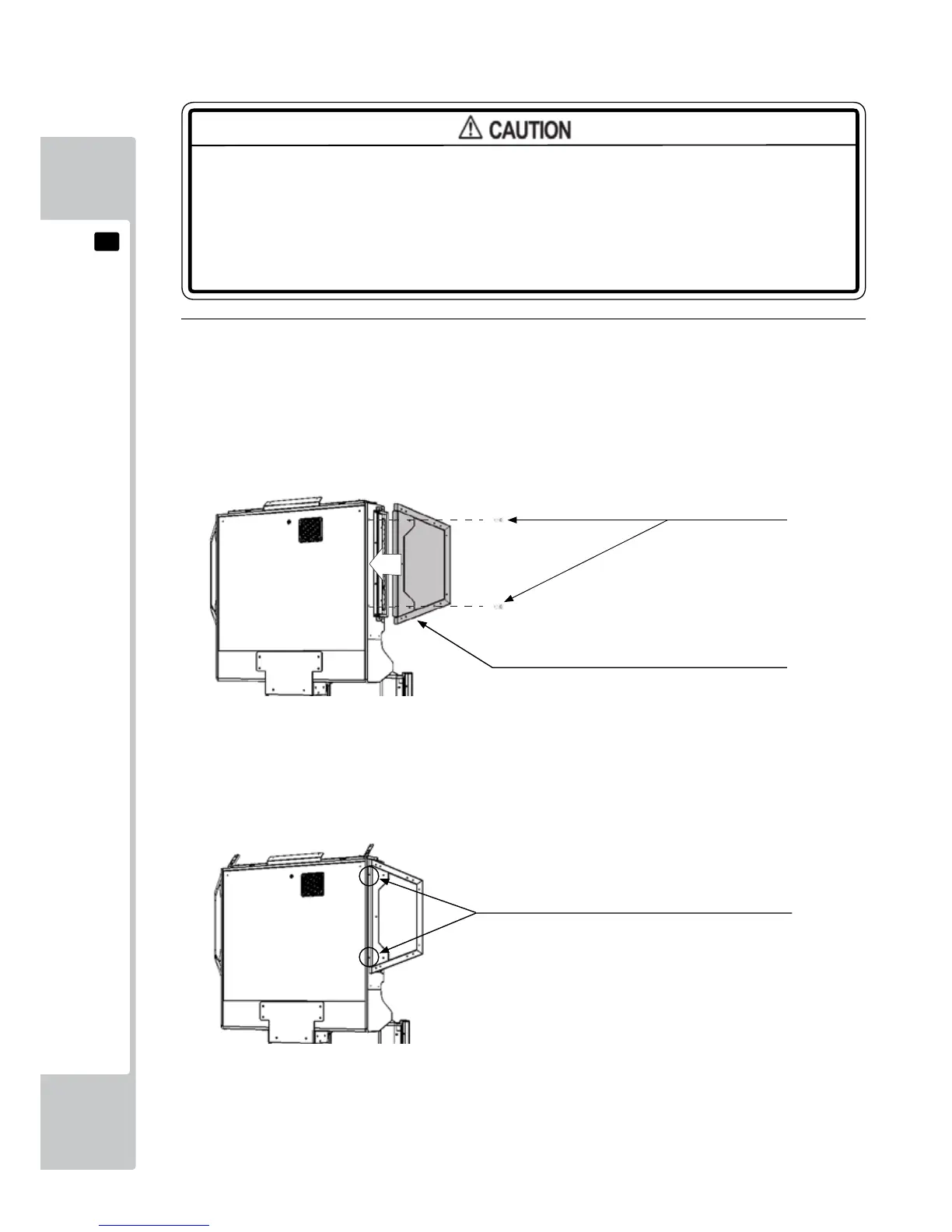

6-1-1 INSTALLING THE ASSY REFLECTOR L & R
M6x20 Hex Bolt Black (2)
Assy Reector L
Secure points
• The Side Reectors weigh approx 3kg and the Upper Reector approx 5kg.
Have at least 2 people performing this operation. Working alone could result in
personal injuries, etc.
• To perform work safely and securely, be sure to prepare a step which is in a
safe and stable condition. Performing work without using a step may lead to
injury or damage to components.
To Next Page
