1

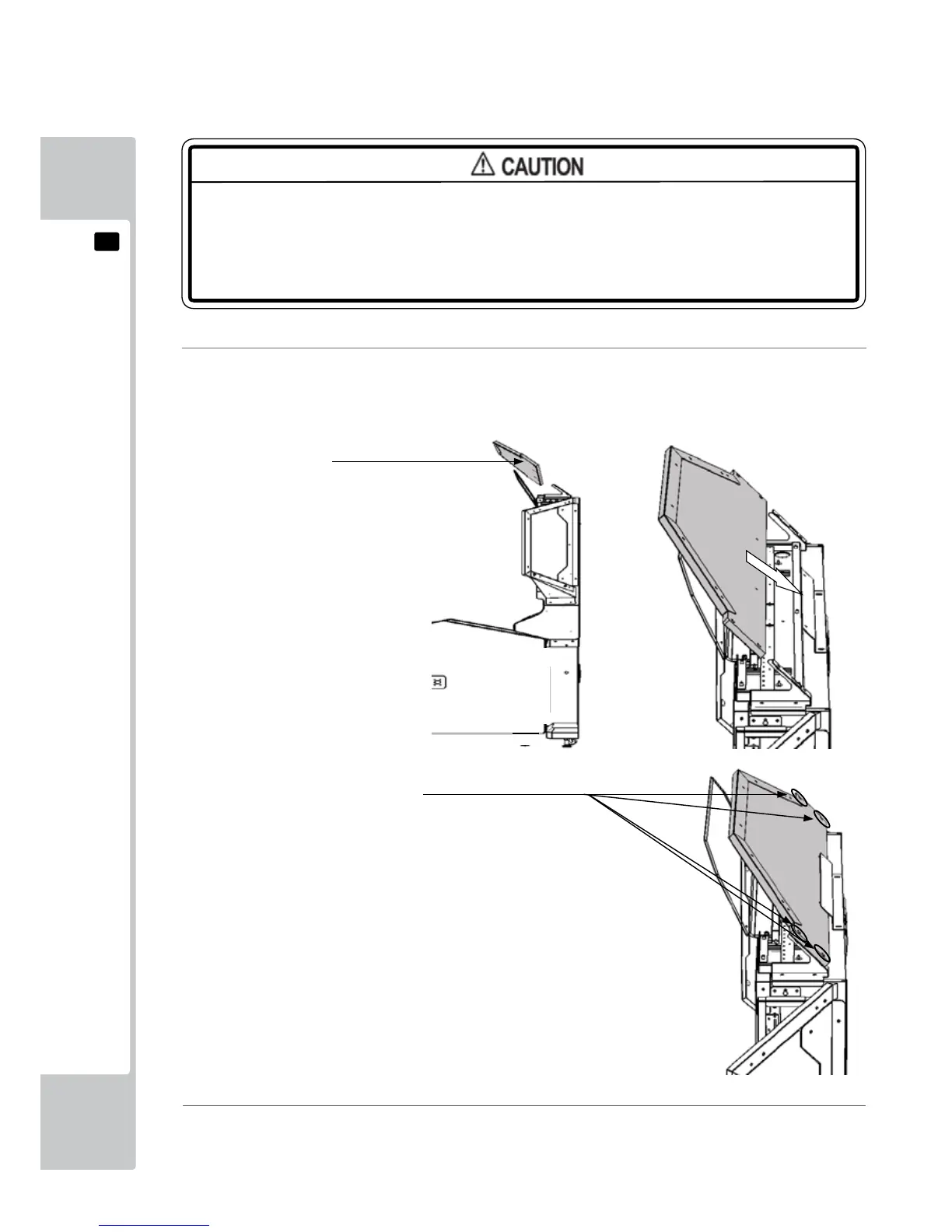

Fit and secure the Assy Upper Reector to the top of the Display Cabinet in the position shown using the
M6x25 HEX BLT W/S BLK (4). The xings are already placed within the locations and will need to be
removed prior tting.
6-1-3 INSTALLING THE ASSY UPPER REFLECTOR
• The Upper Reector weighs approx 5kg. Have at least 2 people performing
this operation. Working alone could result in personal injuries, etc.
• To perform work safely and securely, be sure to prepare a step which is in a
safe and stable condition. Performing work without using a step may lead to
injury of damage to components.
Assembly Upper Reector
M6x25 HEX BLT BLK (4)
2
Once all installation parts have been tted, please take the time to review to work to ensure all parts are
securely tted to the cabinet.
