OmniHub CMP201– User Manual
Page 87 of 103

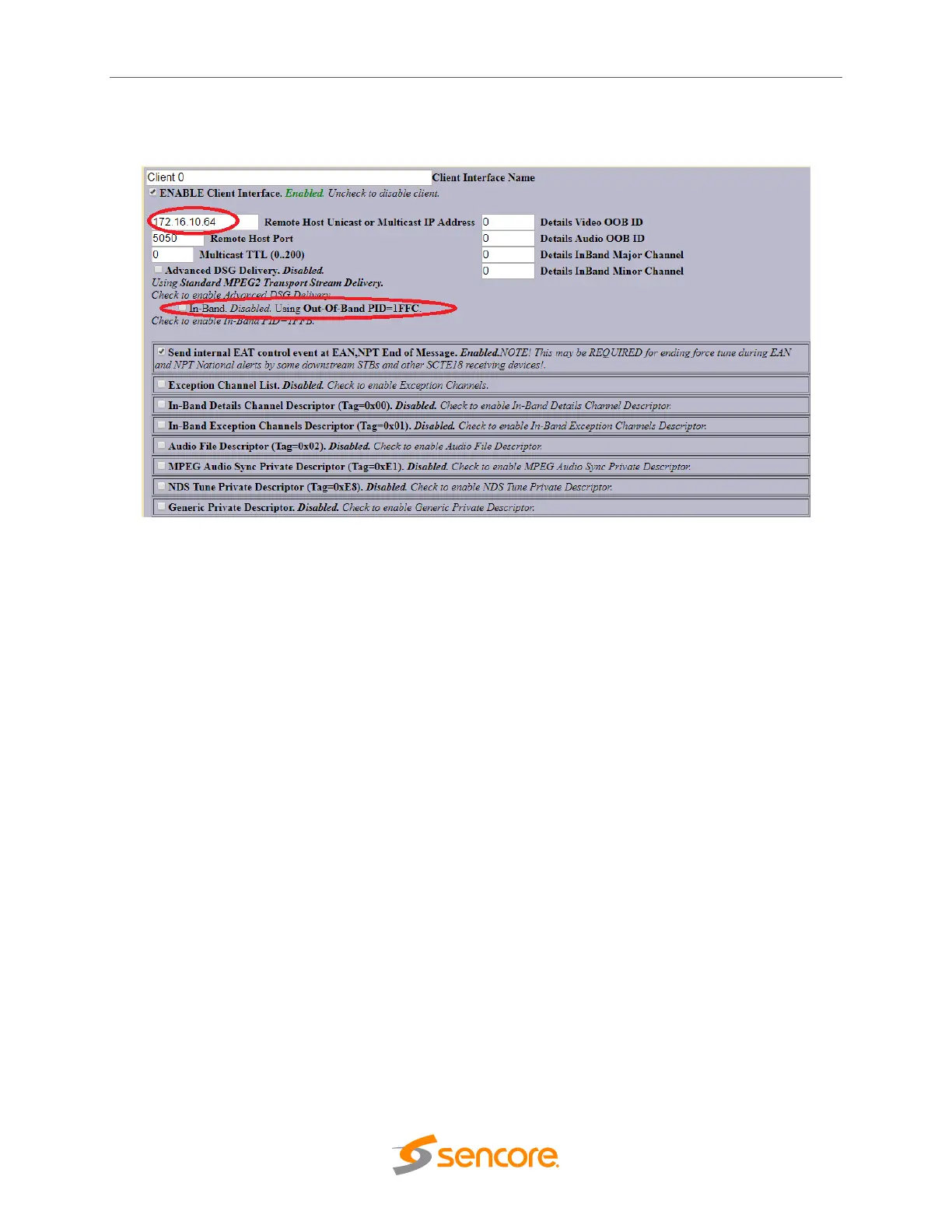

5. Make sure Client 0 is enabled and then input the unicast of multicast address into the
“Remote Host Unicast or Multicast IP Address” text box. It is suggested the unicast
normally be used, so what should be put in this box is the management IP address of the
CMP201. It is also possible to input a multicast address (224.x.x.x – 239.x.x.x).
6. Make sure the “Remote Host Port” is configured to be 5050 as this is the default port for
SCTE18 messages and it is not planned to have the CMP201 listen for SCTE18
messages on any other port.
7. Also make sure the In-Band checkbox is disabled. The CMP201 will be using the Out-
Of-Band PID = 0x1FFC.
8. Another very important configuration is that the Alert Repeat Control must be set to
“Always repeat alert send” and the Alert Message Repeat Period should be set to 6
seconds.
