OmniHub CMP203– User Manual
Page 29 of 109

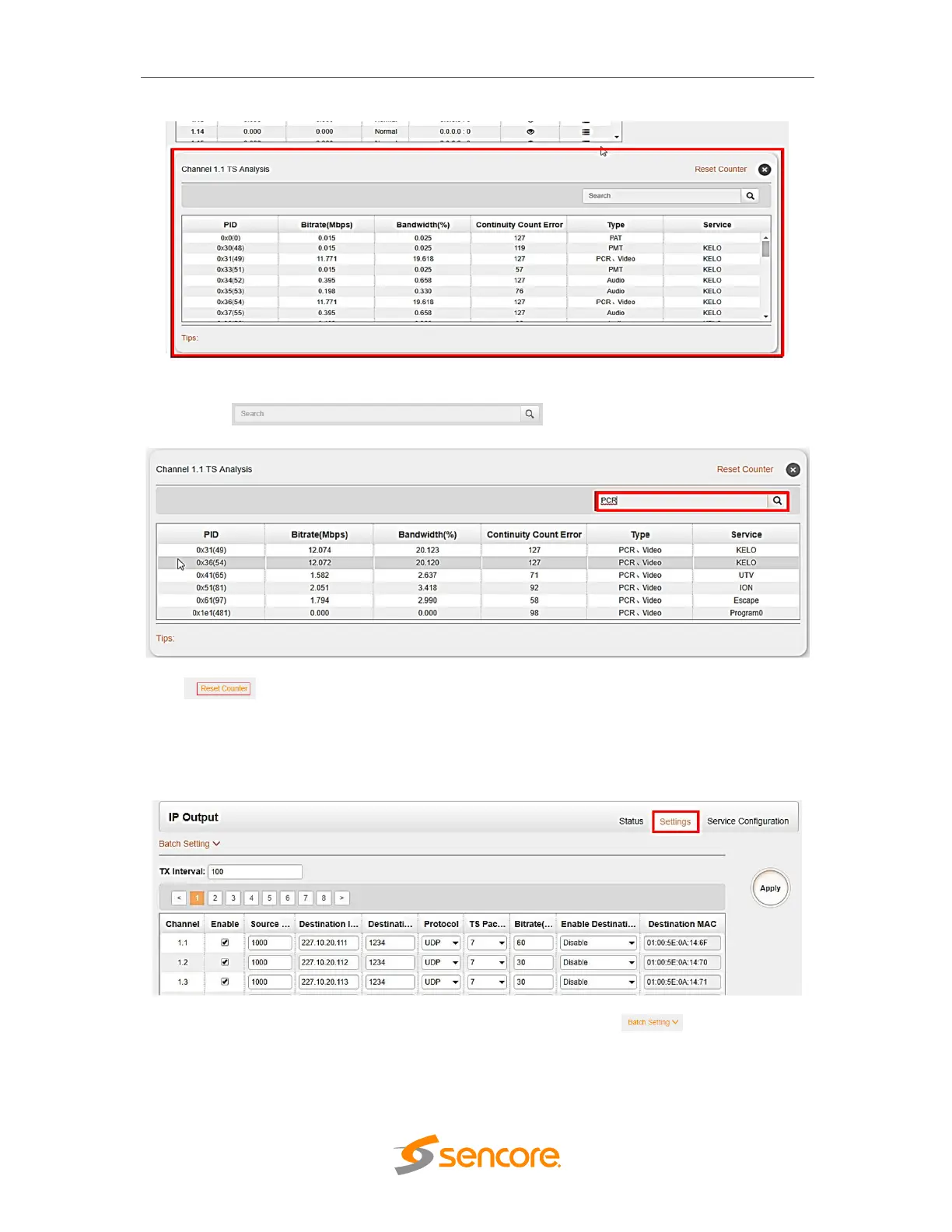

Fill the key words of PID, Bit rate, bandwidth, table type or service name using the
search box to check the info you want to find.
Click button to clear continuity count error and restart counting.
Use Settings tab to make the configuration ofoutputstreams. Enter source port,
destination IP address, destination port, choose protocol (UDP/RTP) and number of
transport stream packets inside IP frame, bitrate for stream.
In order to create or edit a larger number of IP outputs, use the button. Batch
configuration allows to auto assign IP address or UDP/RTP port.
