OmniHub CMP203– User Manual
Page 91 of 109
Webpage Configuration
1. The webpage for the Monroe box requires login. The Monroe box has been
configured with this login information (The capital “A” in the username is
required):
User: Admin
Password: sencore12
2. Once logged into the unit, browse to the Setup tab and select Net Alerts.
3. Configure the DVS644 (SCTE18) settings in the Monroe exactly like are shown
in this document. Enable Alert Forwarding and Encoder Originated Alerts to be
sent to DVS644/SCTE18 devices.

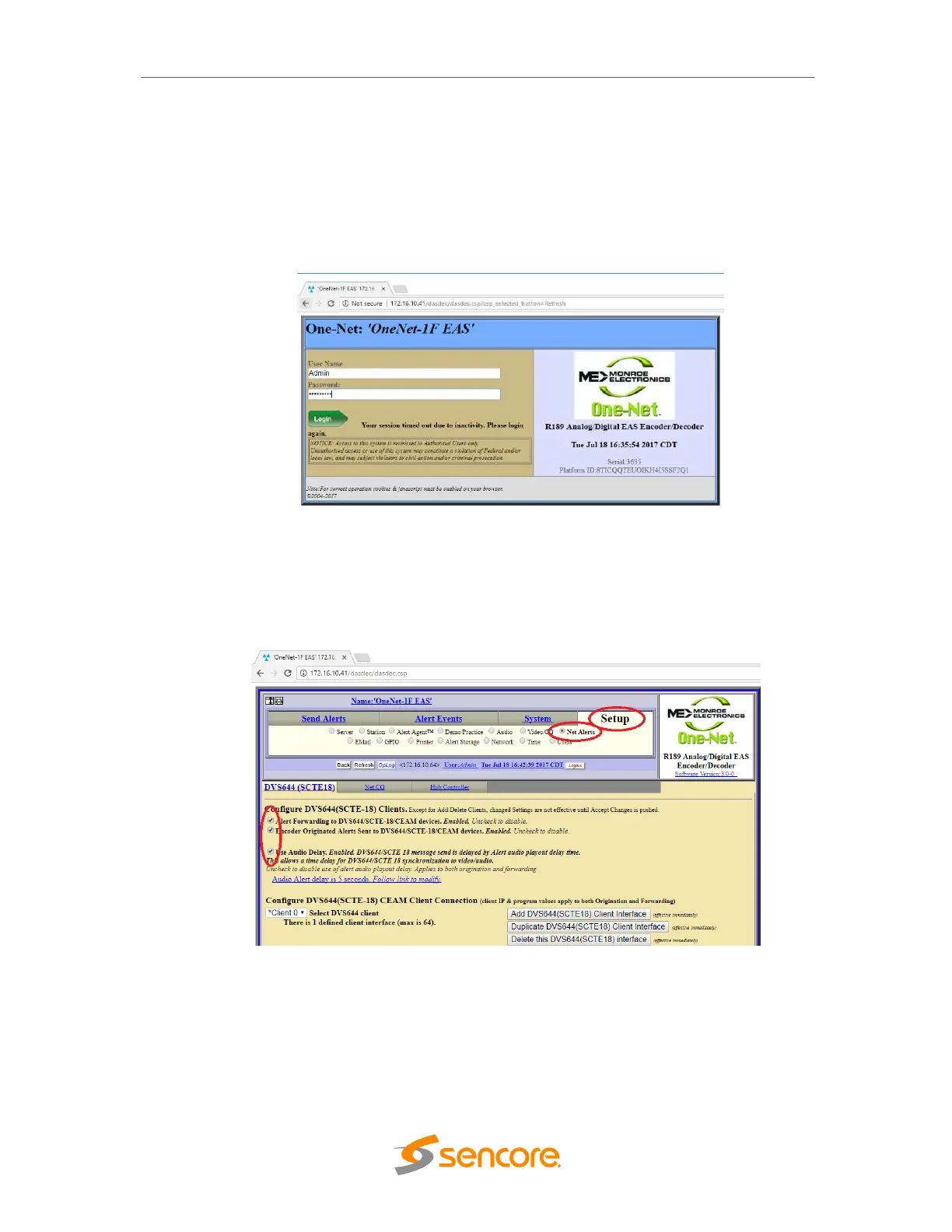

Setup Page (Monroe R189SE)
4. A DVS644(SCTE-18) CEAM Client Connection should already be configured. If
not, click the Add DVS644(SCTE18) Client Interface button.
5. Make sure Client 0 is enabled and then input the unicast of multicast address
into the “Remote Host Unicast or Multicast IP Address” text box. It is suggested
To Next Page
