OmniHub CMP203– User Manual
Page 97 of 109
Bandwidth 6/7/8MHz
Constellation DVB-T: QPSK / 16QAM / 64QAM
DVB-T2: QPSK / 16QAM / 64QAM /
256QAM
Guard Interval DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/128,
19/256, 19/128
FFT Size DVB-T: 2K, 8K
DVB-T2: 1K, 2k, 4K, 8K, 16k, 32K
Signal Level -80~-20dBm
CA system Supports mainstream CAS

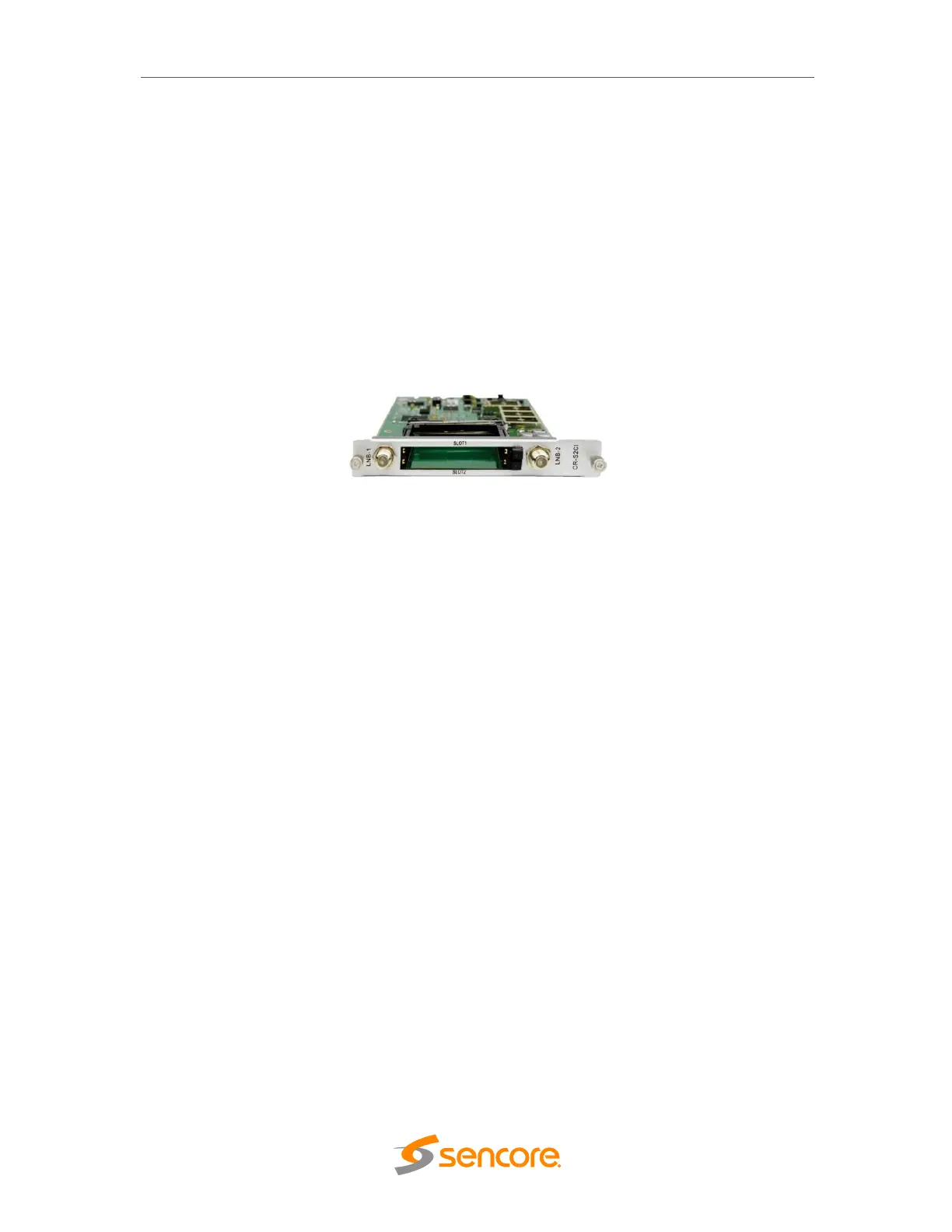

DVB-S/S2 with CI Receiver
Input C/Ku Band, 4 channels via 2 RF
Female connectors
CH1 & CH2 via LNB-1
CH3 & CH4 via LNB-2
LNB Power Independent power supplies for each
LNB
LNB Voltage 13V / 18V
LNB Current Max. 400mB
CI 2 x PCMCIA CI slots
CAM Descrambled channel quantity
depends on CAM capability, 2 CAMs
could be different
Constellation QPSK, 8PSK
Frequency Range 950 - 2150MHz
Signal Level -70~-20dBm
Roll-off Factor 0.15, 0.20, 0.25, 0.35
Symbol Rate DVB-S: 1~45Msps
DVB-S2: 1~45Msps
FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,
8/9, 9/10
CA System Supports mainstream CAS
