OmniHub CMP203– User Manual
Page 98 of 109

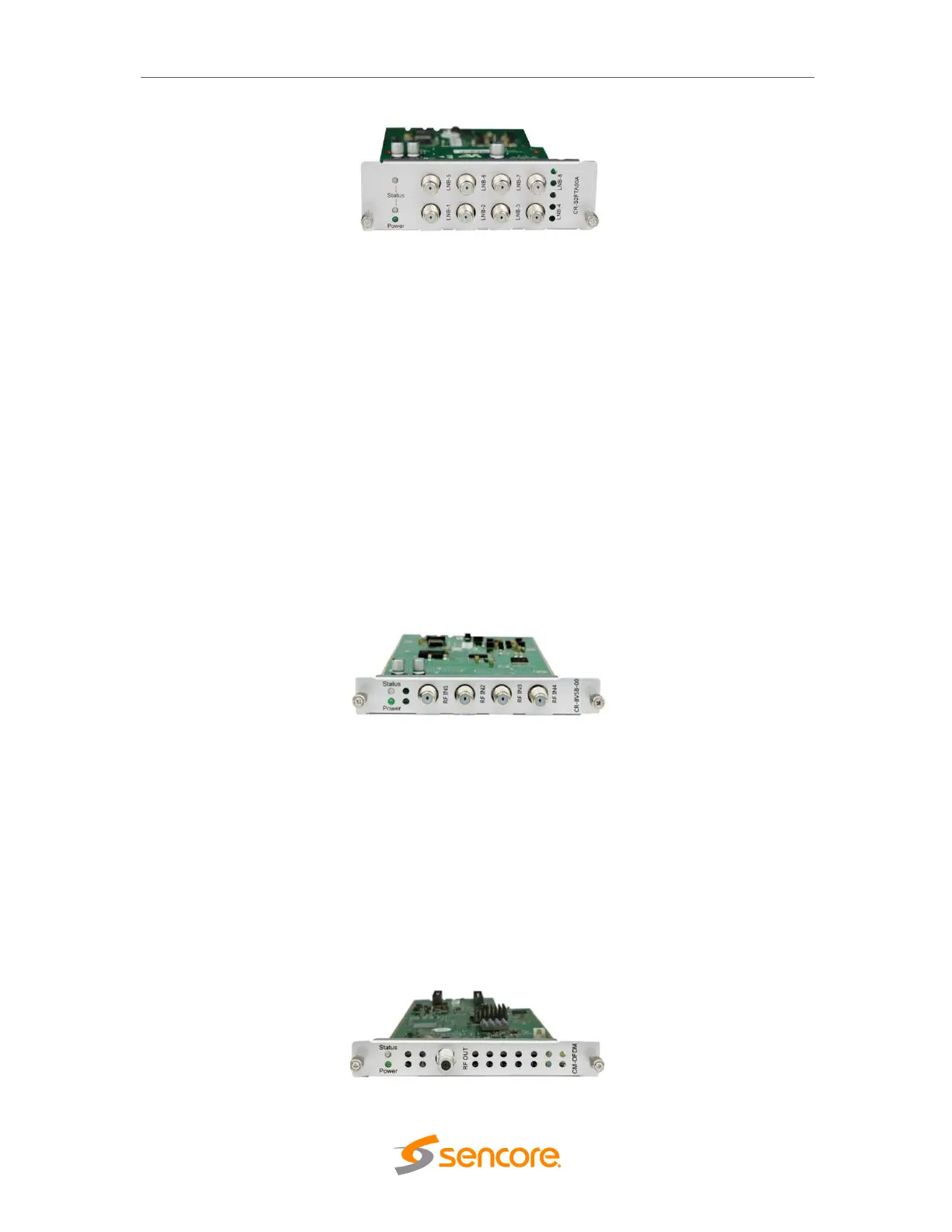

DVB-S/S2 FTA Receiver
Input C/Ku Band, 8 channels via 8 RF
female connectors
LNB Power Independent power supplies for LNB-1
& 3, LNB-5 & LNB-7
LNB Current 13V / 18V
LNB Current Max. 400mA
Constellation QPSK, 8PSK
Frequency Range 950 - 2150MHz
Signal Level -70~-20dBm
Roll-off Factor 0.15, 0.20, 0.25, 0.35
Symbol Rate DVB-S: 1~45Msps
DVB-S2: 1~45Msps
FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,
8/9, 9/10
8VSB Receiver
Input 4 channels via 4 RF Female
connectors
Frequency Range 50 - 860MHz
Bandwidth 6MHz
Modulation 8VSB
Signal Level -80~-20dBm
Modulator Module Specification
OFDM Modulation
