Sensitron PL4 +D - 2.7 STG;8 REL Relay Expansion Board

ENGLISH
Pag. 41

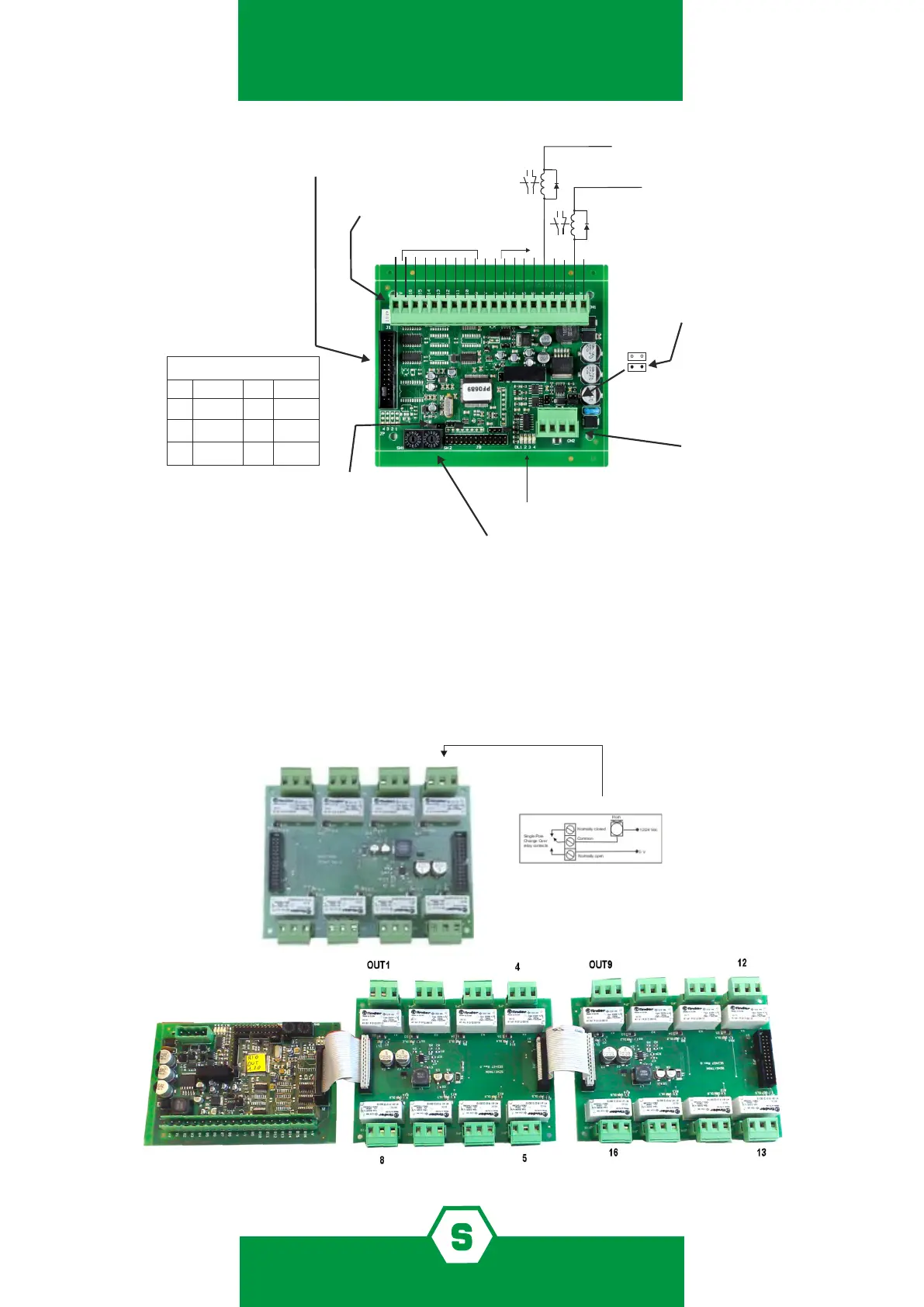

Figure 15) STG/OUT16S module
2.11 STG/8REL relay expansion board
The STG/8REL 8-relay expansion board converts the O/C outputs of the STG/OUT16S output
module into voltage-free exchange contacts. Up to two relay boards can be connected to
each output module. A relay board is directly connected to the output module (J1 connec-
tor) and a second relay board is connected to the former.
Figure 16) Relay board and connection to the output module
Power supply (-/+)
RS485 serial line (B/A)
JP13 Communication Baud Rate setting:
Closed 115.000 bps
(Multiscan++ and PL4+D control panels)
Open 9.600 bps
(old Galileo Multiscan control panel & Sentox IDI)
LED
DL1: WD Fault
DL2: TX Data
DL3: RX Data
DL4: RTS
EOL resistor
close if the module
is the last of the bus line
-V
+V -V
O/C output connections
Outputs 9-16
Out 1-8
Relay board connection (optional)
Jumpers not to be touched
JP5
JP6
JP7
JP8
JP9
JP11
JP12
Closed
Open
Open
Open
Open
Rotary switches
for the module address
+V
+
+
v
v
C
C
O
O
M
M
N
N
O
O
R
R
L
L
2
2
N
N
C
C
+
+
v
v
C
C
O
O
M
M
N
N
O
O
R
R
L
L
2
2
N
N
C
C
+V
+V
Example of relay connection
Open
Open
Connection example
