5
Electrical installation
Electrical connections
Assembly and Operating Instructions – MAXO-MS/M/SM-GIOP Sensor Module
26

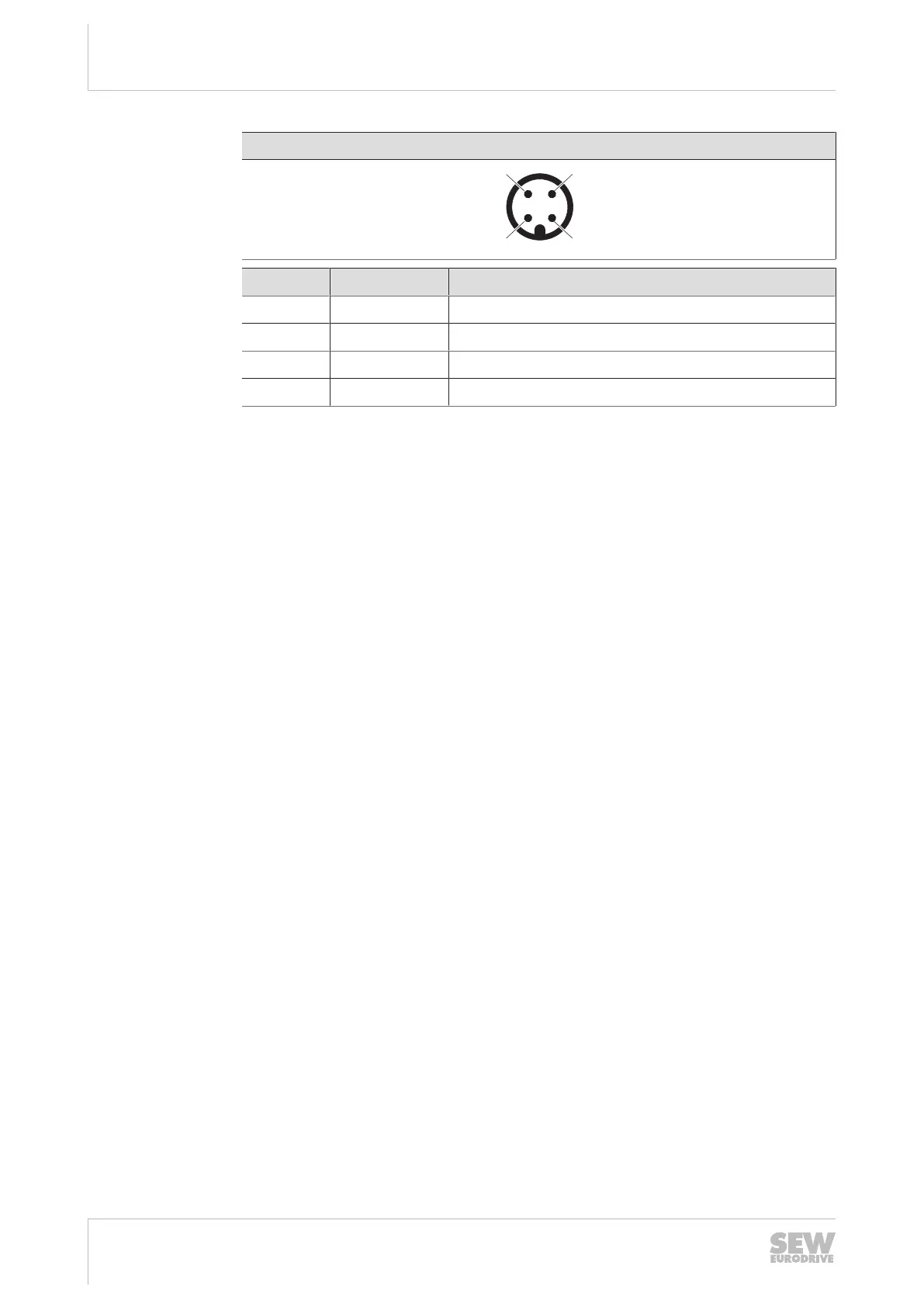

Connection diagram
4
3
2
1
No. Name Function
1 +24V DC24V supply
2 n.c. Not assigned
3 0V24 0V24 reference potential
4 n.c. Not assigned
26868113/EN – 03/2021
