10
Manual – MOVI-PLC® advanced DHE41B/DHF41B/DHR41B Controller
3
MOVI-PLC® advanced DH.41B controller
Introduction
Automation
topologies
Use as a standalone machine controller
You can also use the MOVI-PLC
®
advanced DH.41B controller as a control unit for an
entire machine.
If used without a higher-level PLC, the MOVI-PLC
®
advanced DH.41B controller takes
over all control tasks, including controlling drives and other actuators, as well as evalu-
ating decentralized inputs and outputs.
In a stand-alone topology, operator terminals (DOP11B) function as the interface be-
tween the operator and machine.
You can connect MOVI-PLC
®
advanced DH.41B directly to the company’s Ethernet net-
work.
60544AXX

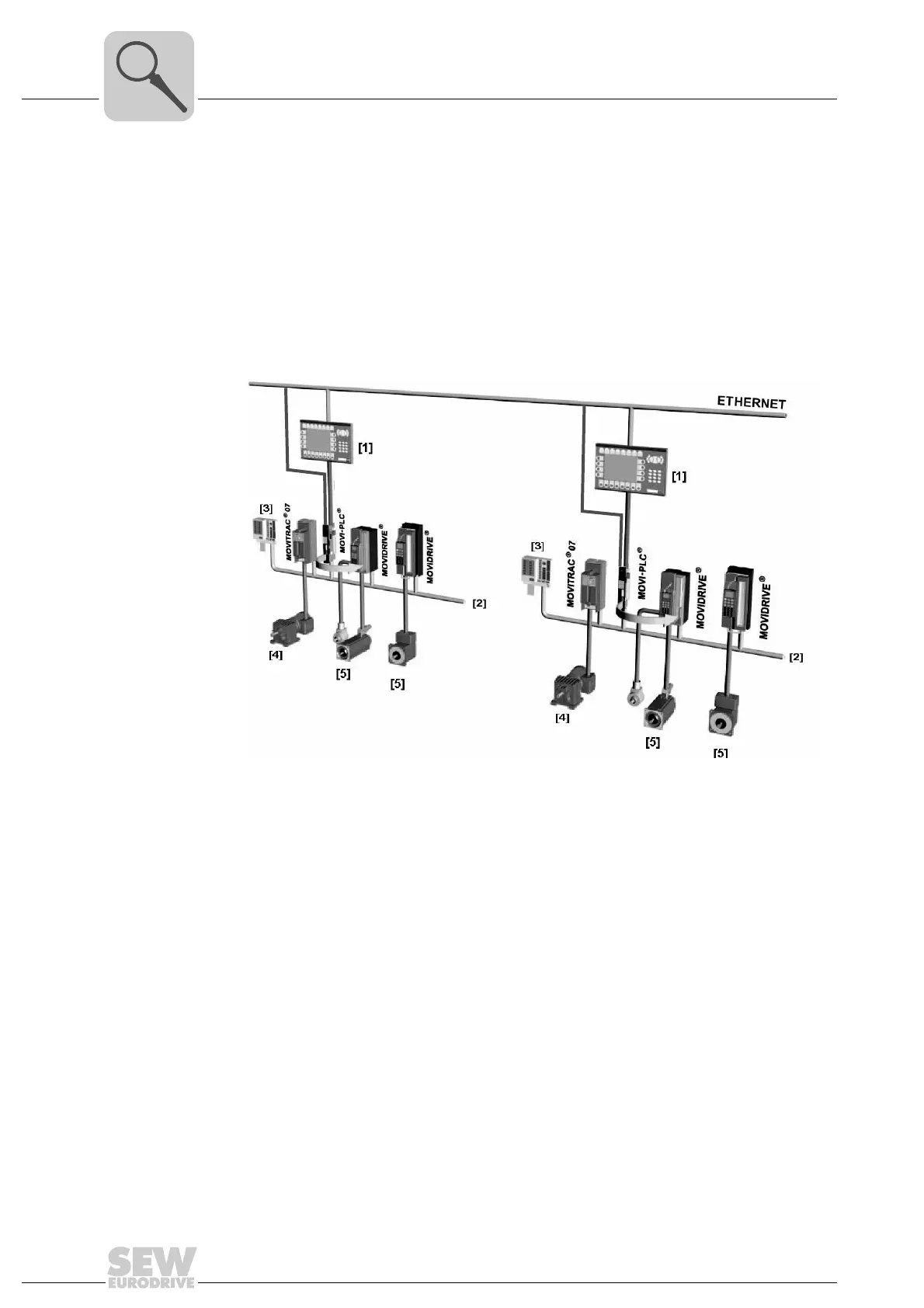

Figure 1: Example of a topology when using MOVI-PLC
®
advanced DH.41B as the standalone
control for a complete machine
[1] Operator terminal (e.g. DOP11B drive operator panel)
[2] System bus (CAN 1, CAN 2, Ethernet 1)
[3] Inputs and outputs (terminals)
[4] Asynchronous motor
[5] Synchronous servomotor/asynchronous servomotor
RS485
RS485
ETHERNET
ETHERNET
