Manual – MOVI-PLC® advanced DHE41B/DHF41B/DHR41B Controller
11
3
MOVI-PLC® advanced DH.41B controller
Introduction
Use as a module controller
You can also use the MOVI-PLC
®
advanced DH.41B controller for decentralized auto-
mation of a machine module (→ following figure). In this way, the MOVI-PLC
®
advanced
DH.41B controller coordinates motion sequences in the axis system.
The controller is connected to a higher-level PLC via the PROFIBUS interface or via one
of the integrated fieldbus interfaces.
58621AXX

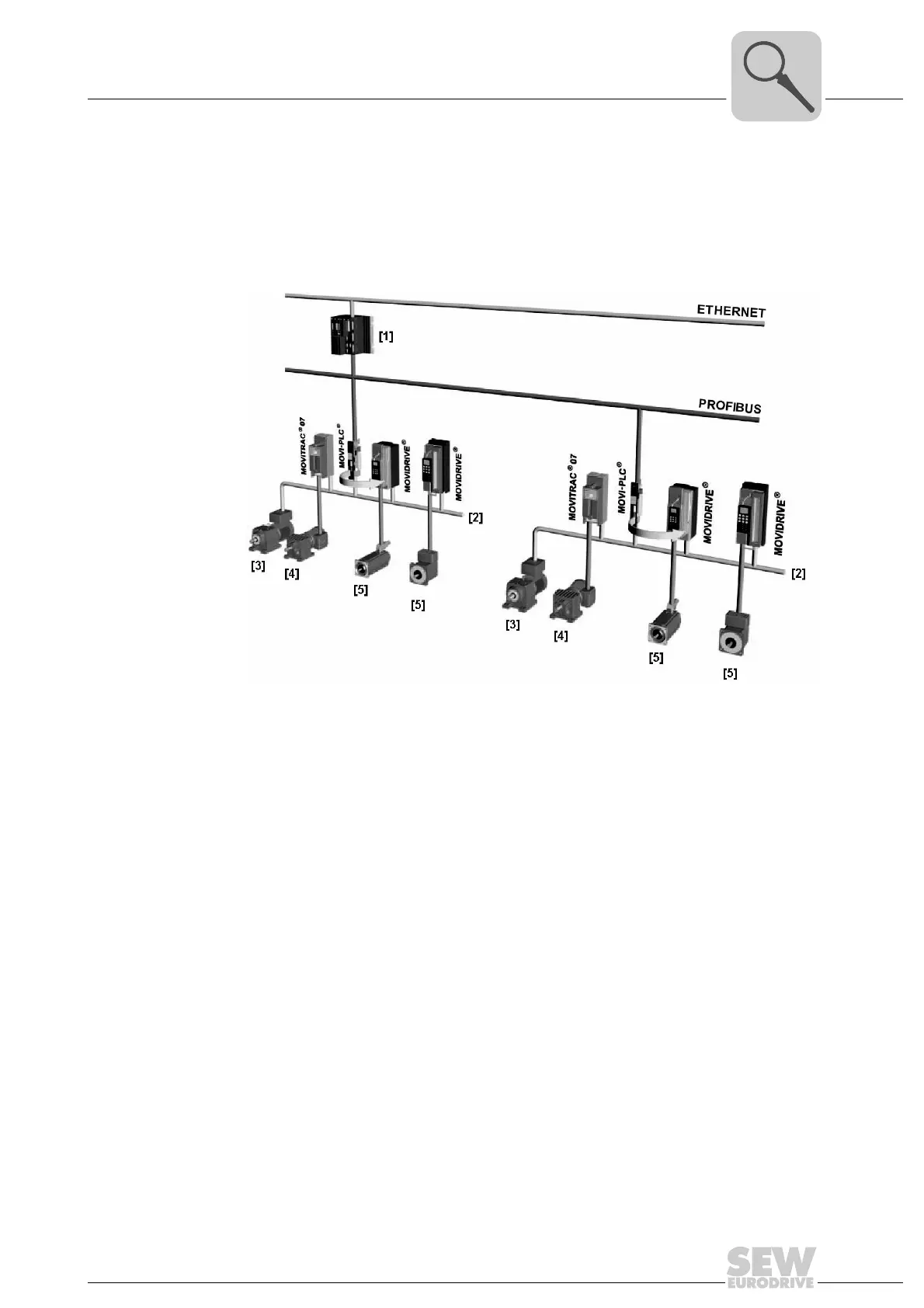

Figure 2: Example of a topology for controlling each machine module using
a MOVI-PLC
®
advanced DH.41B controller
[1] Higher-level PLC
[2] System bus (CAN 1, CAN 2)
[3] MOVIMOT
®
(via fieldbus interface DeviceNet MFD.../connected directly to
MOVI-PLC
®
via RS485 interface COM2)
[4] Asynchronous motor
[5] Synchronous servomotor/asynchronous servomotor
