BEFORE USING THE MACHINE

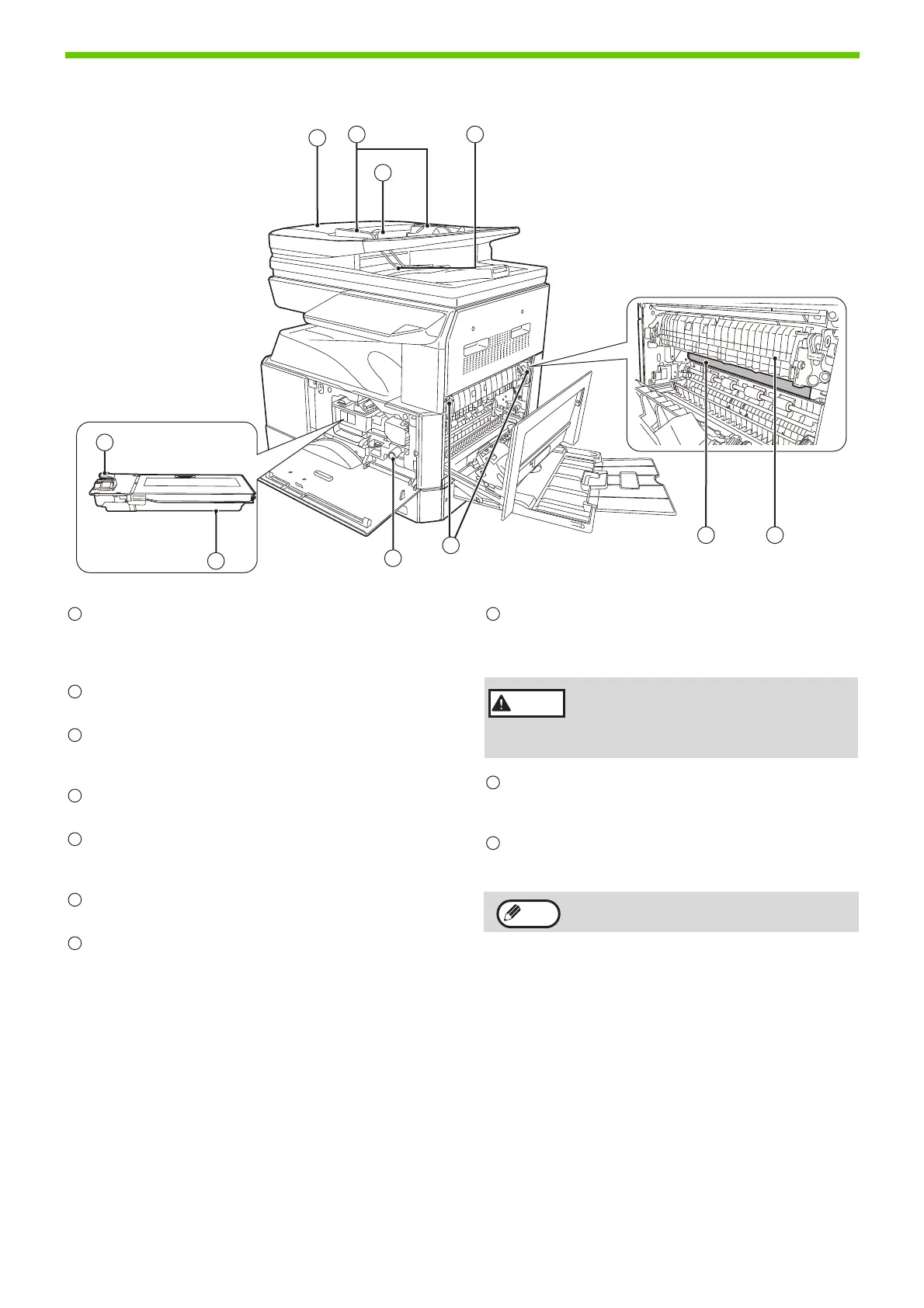

Document feeder tray (when the RSPF is
installed)
Place the original(s) that you wish to scan face up
here. Holds up to 100 originals. (p.46)
Original guides (when the RSPF is installed)
Adjust to the size of the originals. (p.45)
Feeding roller cover (when the RSPF is
installed)
Open to remove misfed originals. (p.114)
Exit area (when the RSPF is installed)
Originals exit the machine here after copying.
Toner cartridge lock release lever
To replace the toner cartridge, pull out the toner
cartridge while pushing on this lever. (p.121)
Toner cartridge
Contains toner. (p.121)
Roller rotating knob
Turn to remove misfed paper. (p.116, p.117)
Fusing unit release levers
To remove a paper misfeed from the fusing unit, push
down on these levers and remove the paper. (p.117)
Photoconductive drum
Copy images are formed on the photoconductive
drum.
Fusing unit paper guide
Open to remove misfed paper. (p.118)
20
18
22
23
24
25
19
2726
21
The fusing unit is hot. Do not touch
the fusing unit when removing misfed
paper. Doing so may cause a burn or
injury.
