Sharp LC-46LX650H User Manual

12
Preparation
• Beforeattaching(ordetaching)thestand,unplugtheACpowercordfromtheACpoweroutlet.
• Beforeperformingwork,spreadcushioningoverthesurfaceonwhichyouwillbelayingtheTV.Thiswillpreventitfrombeingdamaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
H
LC-46LX650H/LC-52LX650H
3
2
Softcushion

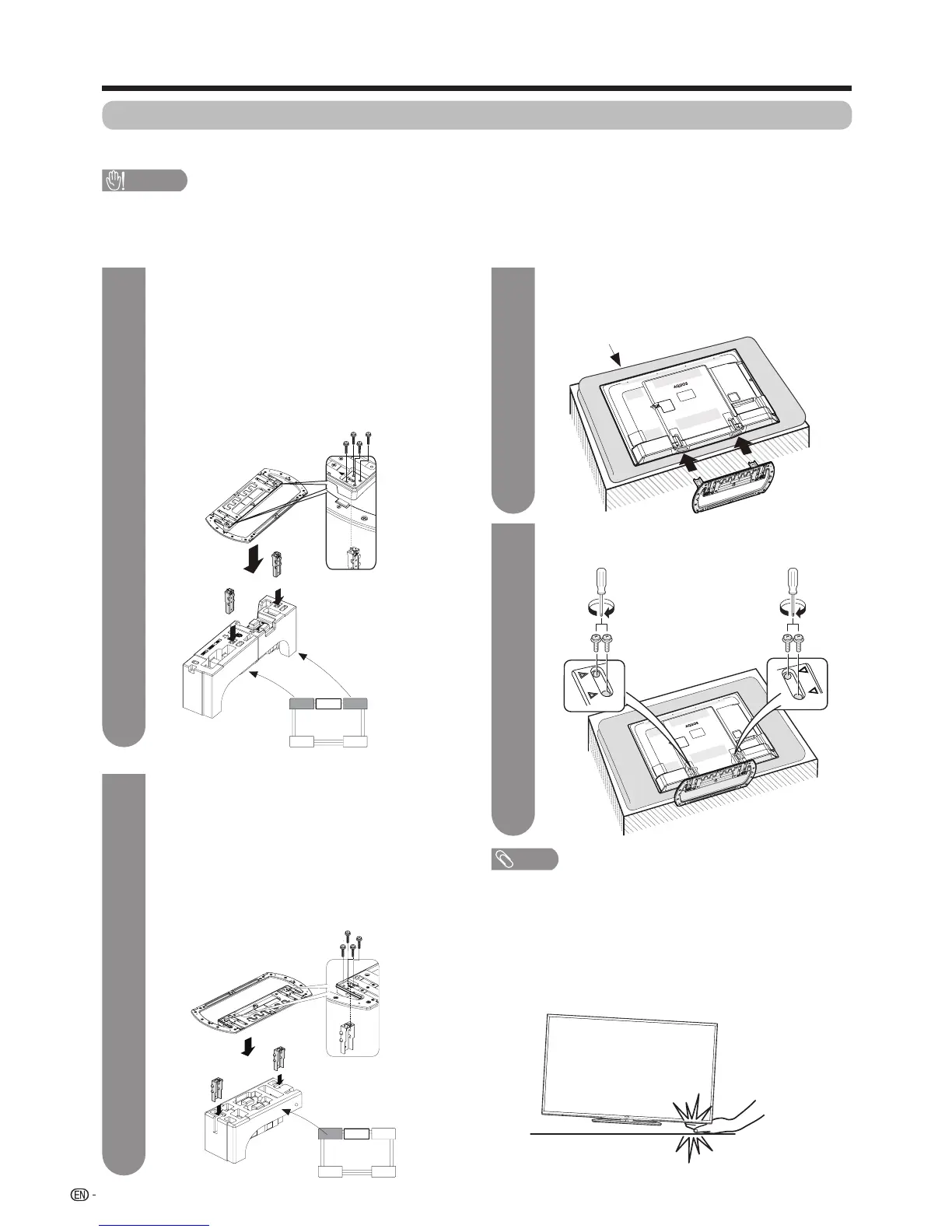

Attaching the stand unit
Step 1 below is only applicable to LC-46LX650H
1
1
Insert the supporting post into the foam blocks
TOP-L and TOP-R , as shown in the figure
below.
2
As illustrated in the following figure,attach the
supporting post onto the stand.
3
Insert the eight screws into the eight holes on
the bottom of the stand, and tighten them.
•
To install the stand correctly, hold the stand
with one hand securely, and tighten the
screws with the other hand.
①
①
②
TOP-L TOP-R
FRONT
③
1
FRONT
①
①
②
TOP-L
Insert the base into the slot on the bottom
of the TV(while holding the base to avoid it
falling over).
Insert the four screws into the four holes on
the back of the TV, and tighten them.
Step 1 below is only applicable to LC-52LX650H
1
Insert the supporting post into the foam block
TOP-L, as shown in the figure below.
2
As illustrated in the following figure, attach the
supporting post onto the stand.
3
Insert the eight screws into the eight holes on
the bottom of the stand, and tighten them.
•
To install the stand correctly, hold the stand
with one hand securely, and tighten the
screws with the other hand.
NOTE
•Wheninstallingthestand,youneedtoputyourTVonaat
surface.Beforethat,putasoft cushion on the surface.
•Theangleofthestandisnotadjustable.
•Todetachthestandunit,performthestepsinreverse
order.
•Ascrewdriverisnotsuppliedwiththisproduct.
•Duringinstallation,pleasebecarefultoavoidgettingyour
handtrappedbetweentheTVbottomandthefloor.

Sharp LC-46LX650H Specifications

General

Brand	Sharp
Model	LC-46LX650H
Category	LCD TV
Language	English
