PART NAMES AND FUNCTIONS

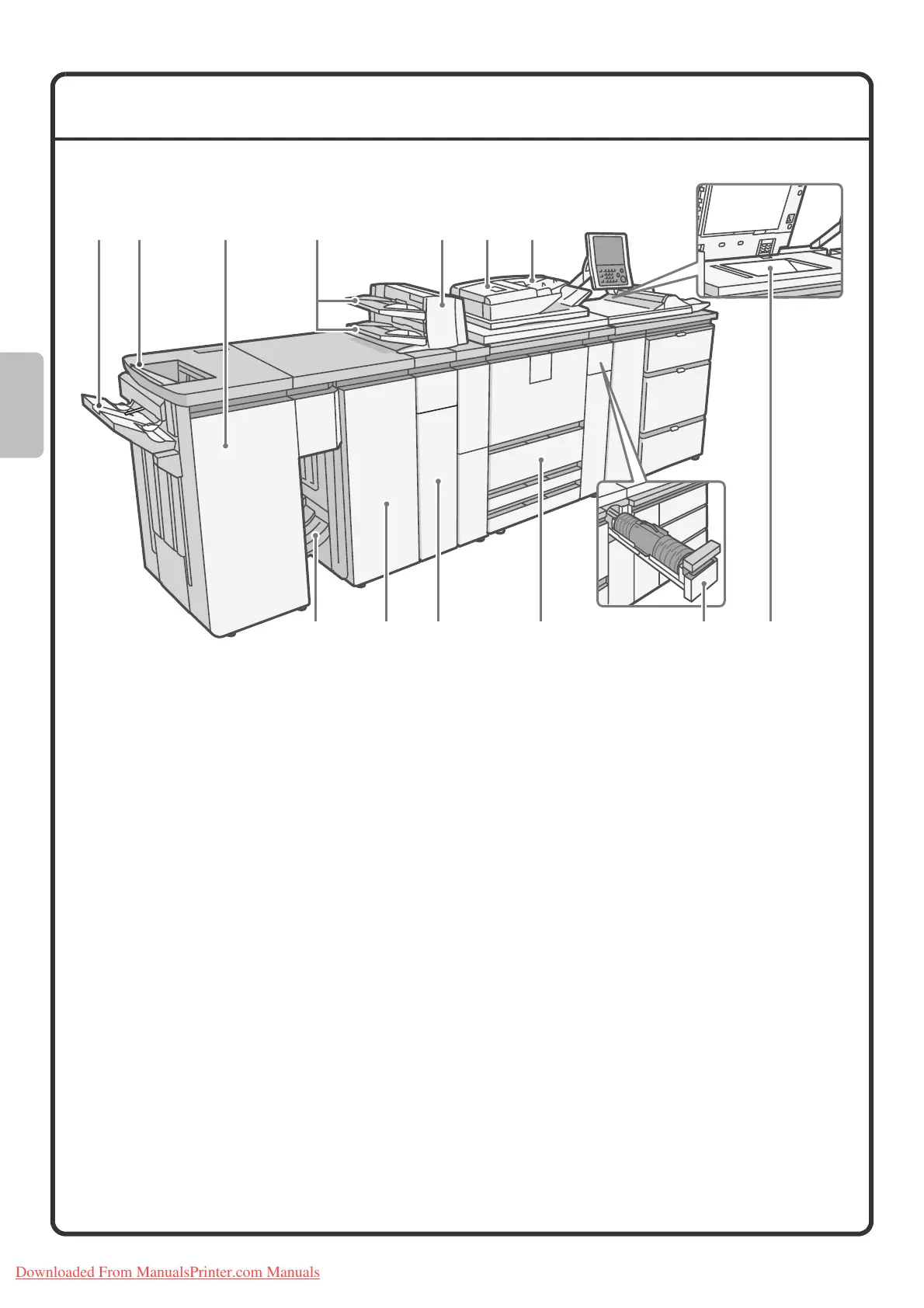

(1) Offset tray
Offset and stapled output are delivered to this tray.
(2) Top tray
Printed output is delivered to this tray.
(3) Finisher*
This can be used to staple output. When an optional
punch unit is installed, holes can be punched in
output.
(4) Paper trays
When using the inserter, load paper in this tray.
(5) Inserter*
This inserts covers and inserts into copy and print
output. Paper loaded in the inserter can be stapled,
punched, or folded.
(6) Automatic document feeder
This automatically feeds and scans multiple originals.
Both sides of 2-sided originals can be scanned at
once.
(7) Document feeder tray
Place the originals in this tray when using the
automatic document feeder.
(8) Saddle stitch tray
Output folded at the centreline and stapled output are
delivered to this tray.
(9) Saddle unit*
This is equipped with the pamphlet staple function,
which staples output at the centreline.
(10) Folding unit*
Use this to fold the loaded paper in half.
(11) Machine trays
These hold paper. The machine has four trays.
(12) Toner cartridge installation cover
Open this cover to replace a toner cartridge.
(13) Document glass
Use this to scan a book or other original that cannot
be fed through the automatic document feeder.
* Peripheral device. For more information, see "4. PERIPHERAL DEVICES" in the User's Guide.
(3)(1) (2) (4) (5) (7)(6)
(8) (9) (10) (11) (13)(12)
