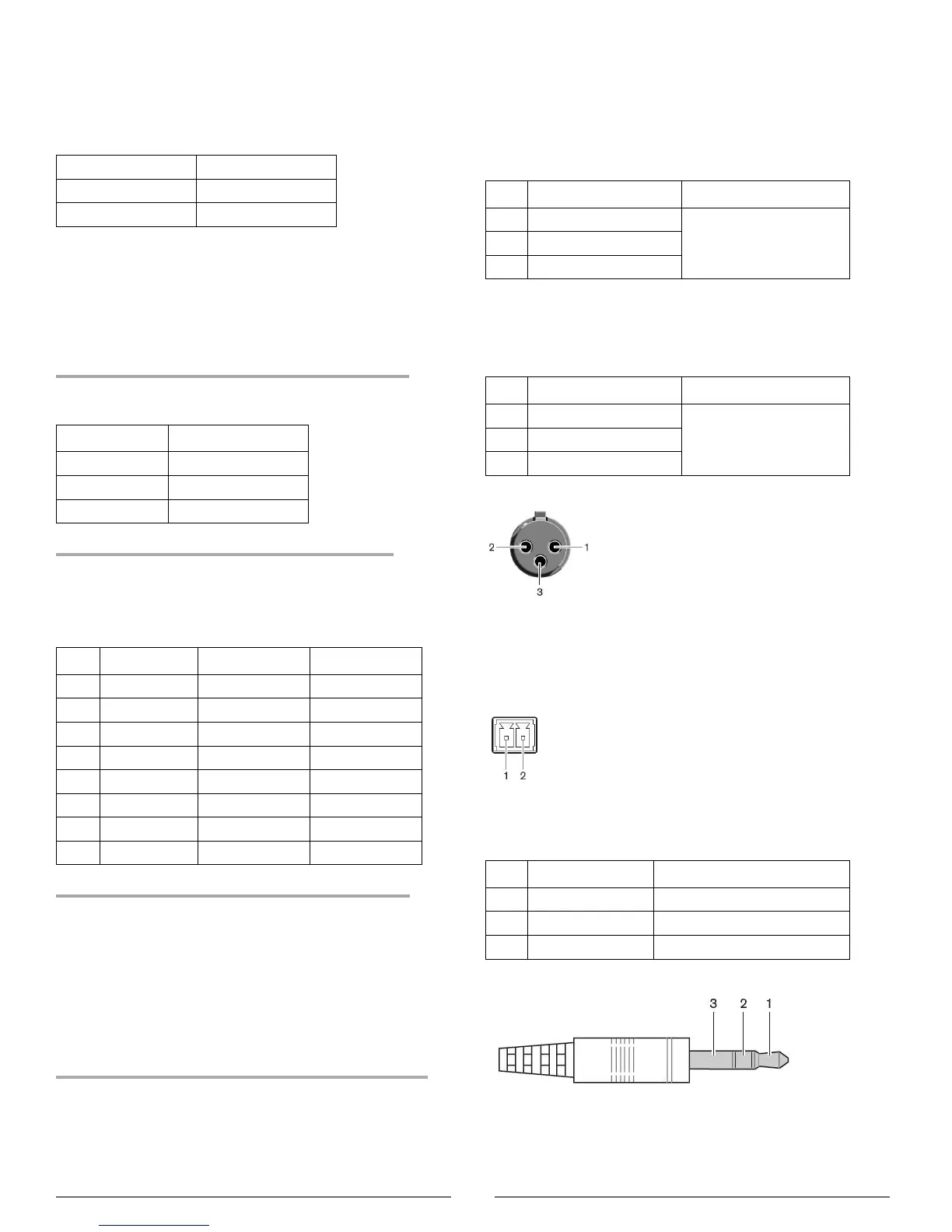

Wiring Details
Main Power
Blue Neutral
Brown Live
Green/Yellow Earth (Ground)
DCS-LAN Chain
The DIS-CCU uses Cat5e, Cat6 or Cat7 F/UTP or U/FTP
cables with shielded RJ45 connectors.
EIA 568-B wiring must be used.
Important: The names of Cat5/6/7 cable type have
changed.
Old Name New Name
FTP F/UTP
STP U/FTP
UTP U/UTP
Important: Use only F/UTP or U/FTP (screened)
cables and screened RJ45 connectors and not U/UTP
cable, which is unscreened.
How to wire a Cat5e (EIA 568-B) cable to a RJ45 con.:
Pin Function Connector #1 Connector #2
1 In-going + ORG/WHT ORG/WHT
2 In-going - ORG ORG
3 +48V GRN/WHT GRN/WHT
4 0V BLU BLU
5 0V BLU/WHT BLU/WHT
6 +48V GRN GRN
7 Outgoing - BRN/WHT BRN/WHT
8 Outgoing + BRN BRN
If other color codes are used then the four pairs are
connected as follows:
Pair 2: Pin 1 & 2
Pair 3: Pin 3 & 6
Pair 1: Pin 4 & 5
Pair 4: Pin 7 & 8
The phase of the pairs must be correct and the wiring
specification EIA 568-B (Cat5e).
Cat6 and Cat7 cables are normally only be terminated
in sockets (female) and not in cable plugs.
Cat6 and Cat7 can only be used for feeding cables
terminating in wall outlets or patch panels.
Analog Audio Out
XLR3 male
Pin Signal Cable type
1 Earth 2 x 0.25 mm2
shielded.
2 Signal +
3 Signal –
Analog Audio In
XLR3 female
Pin Signal Cable type
1 Earth 2 x 0.25 mm2
shielded.
2 Signal +
3 Signal –
Emergency switch
Terminal block
Connect the emergency switch to pin 1 and 2.
Earphones
3.5 mm Jack plug
Pin Connector Function
1 Tip Signal left
2 Ring Signal Right
3 Sleeve Electrical earth/screen
