SICK DL100 Pro CANopen - Display

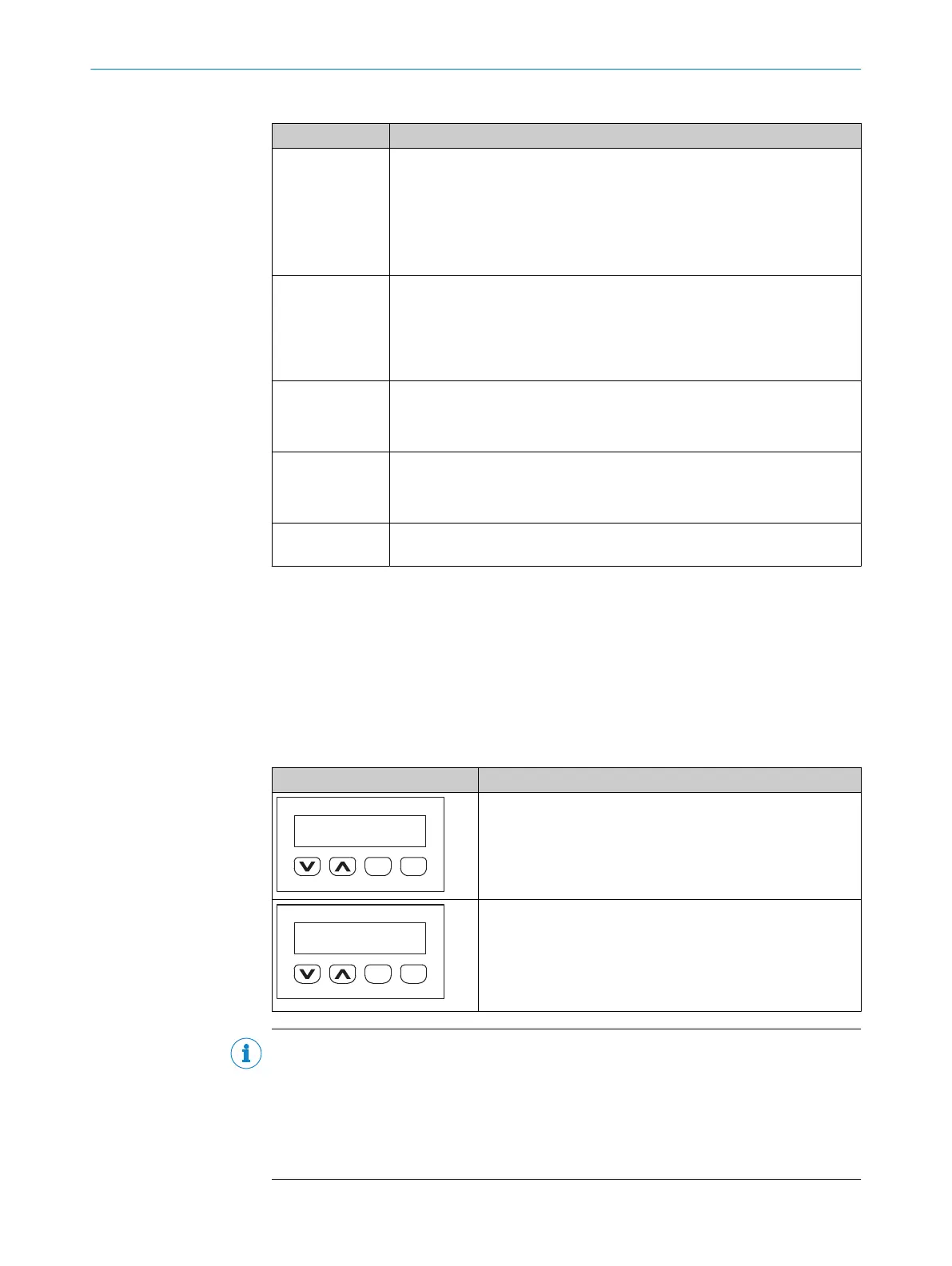

Table 3: LEDs
LED Description
PWR Device status display
For measures, see "Troubleshooting", page 94.
■
LED off: No operation
■
LED green: Interference-free operation
■
LED flashes orange: Warning
■
LED flashes red: Error
LNK Connection status (link) Ethernet port
■
LED flashes orange: Data exchange active
■
LED green: Connection (link) to the next participant available.
■
LED off: No physical connection to the next participant available. For
measures, see "Ethernet problems", page 96.
MF1 Multifunctional input/output MF1
•
LED on: Output level HIGH
•
LED off: Output level LOW
MF2 Multifunctional output MF2
•
LED on: Output level HIGH
•
LED off: Output level LOW
STA Interface (CANopen)
Status LED see "Bus status (LED STA)", page 96.
3.4.2 Display
The device has a display which provides a range of information. You can also call up
and set parameters using the display.
Symbols for operating modes
The device has two different operating modes, “measured value display” and “menu
display”, which are indicated on the display by the symbols RUN and MEN.
Table 4: Symbols for operating modes
Icon Description
EscSet
250000
RUN
The device is in “measured value display” operating mode
when it is switched on. The RUN symbol and the current dis‐
tance value are displayed. This operating mode enables you
to display other process values.
EscSet
Menu
MEN
The MEN symbol is displayed in “menu display” operating
mode. In this operating mode, device parameters can be read
out or set depending on the interface.
When it comes to setting parameters in devices with fieldbus
interface, make sure to observe the notes in see "Operation",
page 35.
NOTE
In the display, distance values always have the resolution “mm”, speed values the reso‐
lution “mm/s”. Positive numerical values do not have a sign, negative numerical values
have the “-” sign. This limits the display range to 5decimal places when numerical
values are negative. In the “measured value display” operating mode, the sign and
the highest decimal place are cut off and replaced by a "!" when the value -99,999 is
undercut.
FUNCTION AND USE 3
