5 Mounting
5.1 Safety
WARNING
E
lectrical voltage
There is a risk of injury from electrocution while connecting the devices.
b
Disconnect the power for the entire plant/machine.
WARNING
Unintended start of the plant/machine
The plant/machine could inadvertently start while you are connecting the devices.
b
Disconnect the power for the entire plant/machine.
NOTICE
Enc
losure rating IP20 only applies if the front connector is mounted.
5.2 Mounting procedure
Prerequisites
En
vironment meets the requirements of IP54 or higher, e.g., IP54 control cabinet.
Mounting on a 35 mm × 7.5 mm mounting rail in accordance with IEC 60715.
The mounting rail is connected to the functional earth.
Mounting rail is mounted on a mounting plate.
Mounting plate is connected to functional earth.
Mounting in a vertical orientation (on a horizontal mounting rail). figure 16
There is at least 30 mm of space for air circulation above and below the module.
There is at least 25 mm of space in front of the module (front side). More space
may be needed depending on the connections.
Take suitable ESD protection measures.
Approach
1. Attach main module to mounting rail.
Click

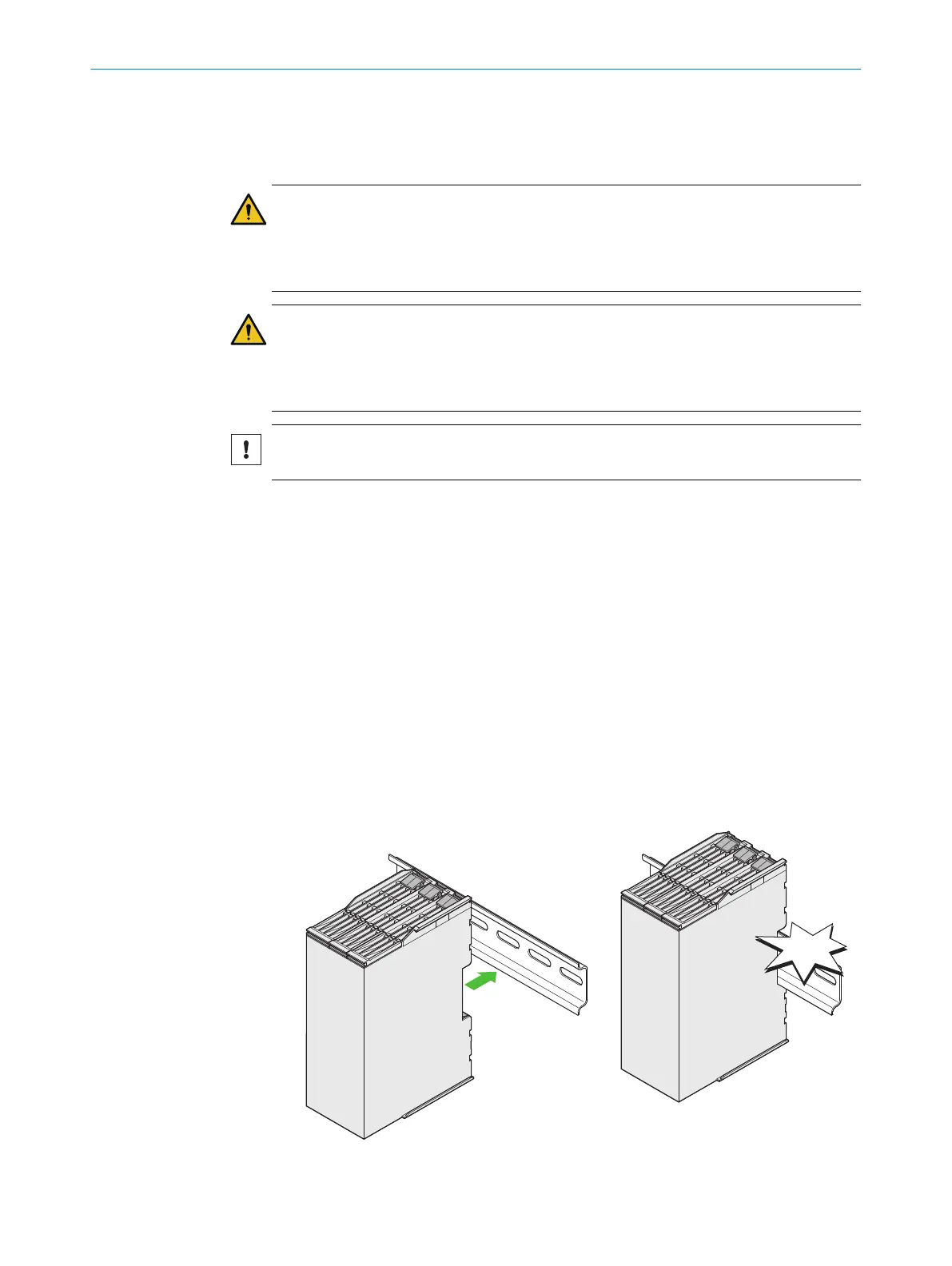

Figure 16: Main module mounting
T
he main module engages with an audible click.
5 MOUN
TING
30
O P E R A T I N G I N S T R U C T I O N S | Flexi Compact 8024589/2020-11-10 | SICK
Subject to change without notice
