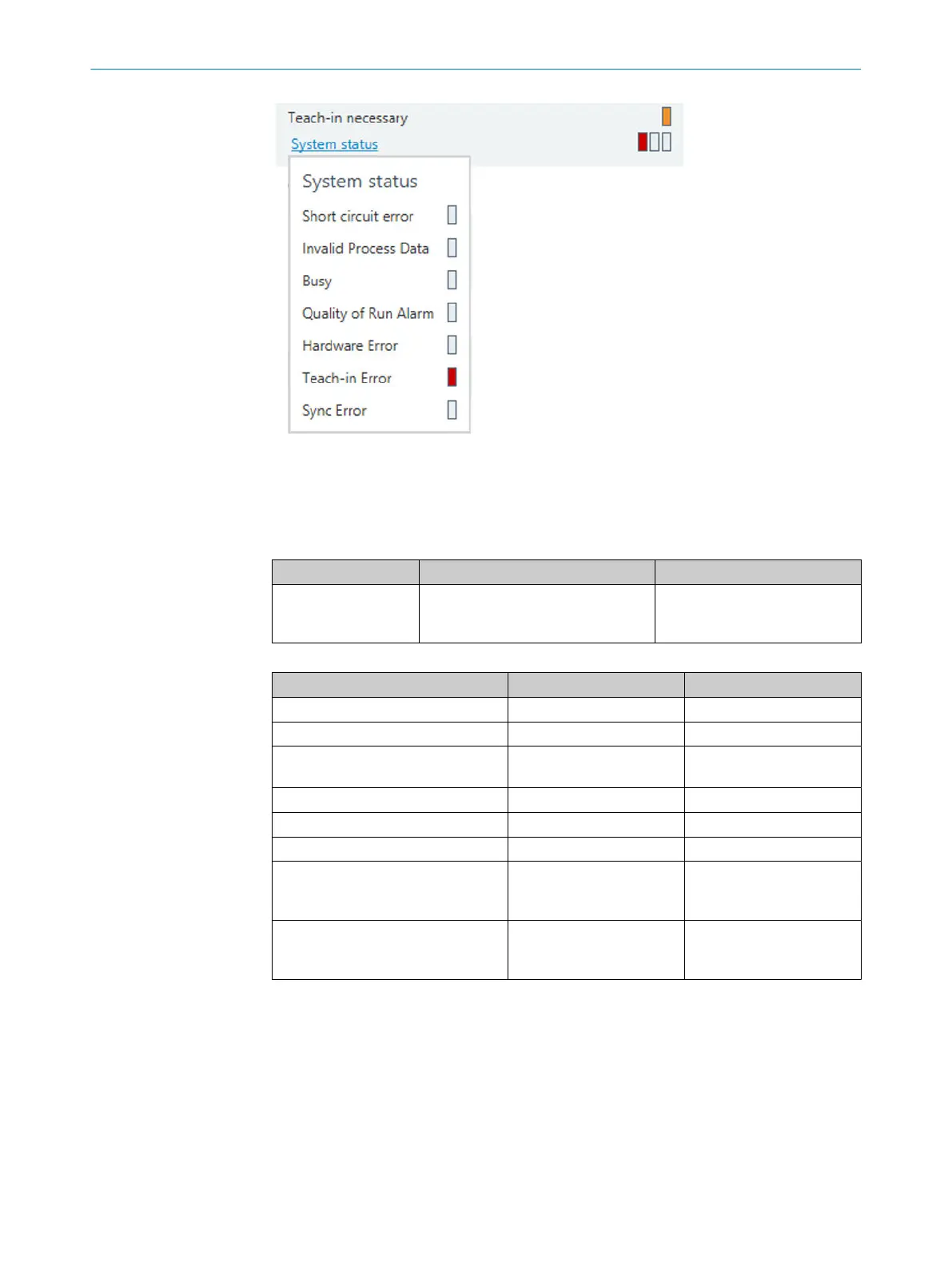

Figure 35: System status in SOPAS
The system status contains device-specific diagnostic information and has a length of
one byte. Each bit represents different diagnostic information.
Table 16: IO-Link index of device-specific diagnostic information
IO-Link Index Object name Description
100 System status Device-specific diagnostic infor‐
mation transmittable via the
process data
Table 17: Bits of the device-specific diagnostic information
Bit number System status Type
Bit 0 Pin short circuit error Error
Bit 1 Invalid process data Error
Bit 2 Temperature or operating
hours alarm
Warning
Bit 3 Busy Note
Bit 4 Quality of run alarm Warning
Bit 5 Hardware error Error
Bit 6 Teach-in error Error
(a warning in IO-Link
Events)
Bit 7 Sync error Error
(a warning in IO-Link
Events)
The system status can be transmitted cyclically via the process data. Configuration of
the process data is described in chapter 7.8.
In addition, the System statusinformation can also be transmitted as a 1-bit value “OR”
function via pin 2 / MF. A selection of diagnostic information relevant for the application
is possible here (see "Diagnostic settings", page 39).
8.3
Diagnostic information via the display LEDs
Three different diagnostic classes are available as diagnostic information via the dis‐
play:
8 DIAGNOSTICS AND TROUBLESHOOTING
46
O P E R A T I N G I N S T R U C T I O N S | SLG-2 8026014/2021-06-10 | SICK
Subject to change without notice
