NOTE
Detailed information on the subindices and access can be found in the IO-Link supple‐
ment (8389226). For additional information on the Smart Task, refer to instructions
8022709, chapter 7.9.1.
7.8 Process data
Various output states as well as measurement and diagnostic information can be
transmitted via IO-Link. The process data word has a length of 32 bytes. Each of these
bytes can be individually populated with the desired data.

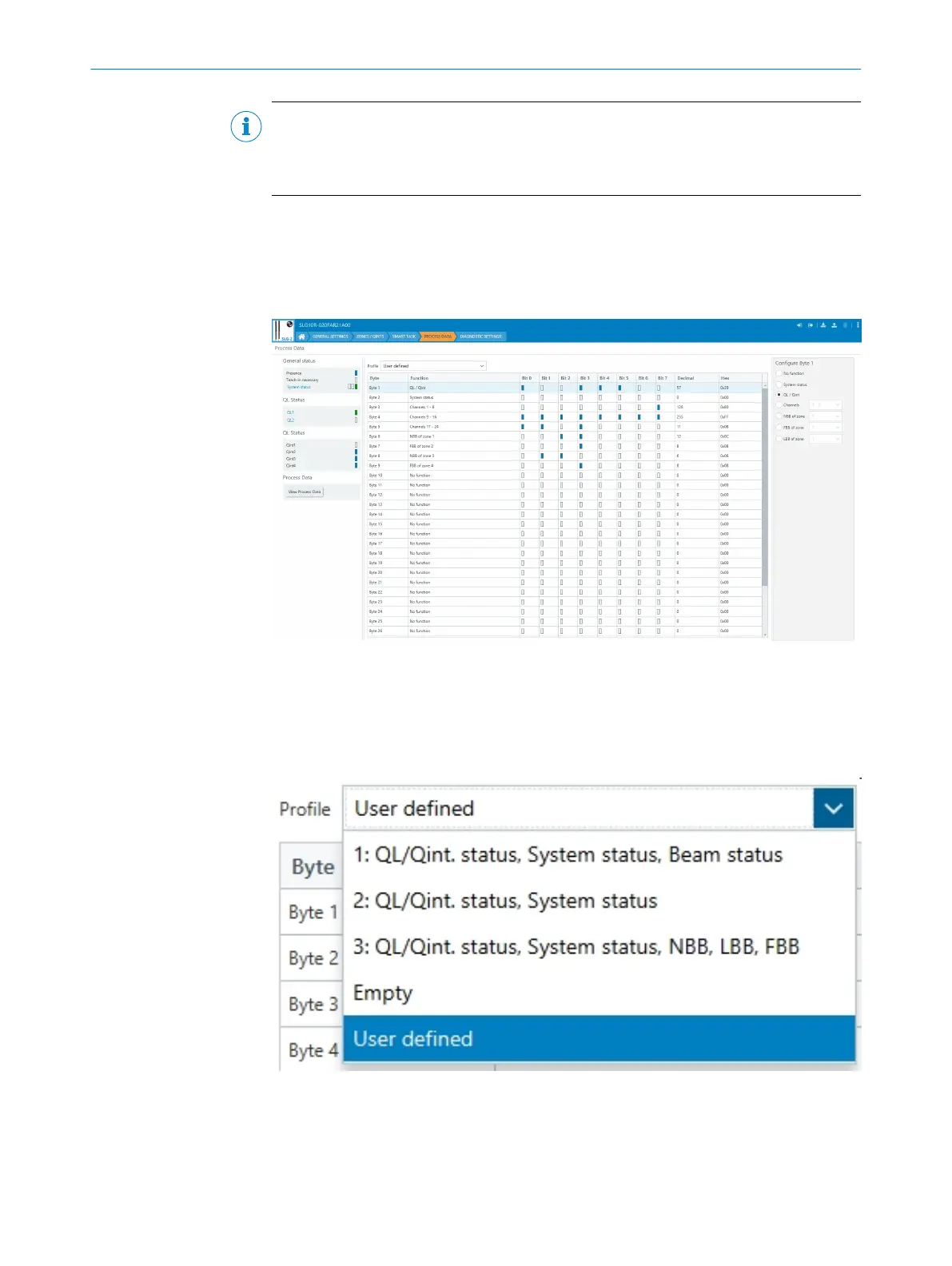

Figure 30: SOPAS – Process Data tab
Load process data via profiles (only available for SOPAS):
A number of pre-defined process data profiles are available that can be selected
to populate the process data word. Common constellations are already stored for a
simplified configuration.
Figure 31: Load process data via profile.
7
OPERATION
38
O P E R A T I N G I N S T R U C T I O N S | SLG-2 8026014/2021-06-10 | SICK
Subject to change without notice
