SICK SLG-2 User Manual

11.2 Dimensional drawings
11.7 (0.46)
Sender
169 (6.65)
4.6 (0.18)
Receiver Sender
5.6 (0.22)
9 (0.35)
1 (0.04) 3.8 (0.15) 24.1 (0.95)
11.8 (0.47)
A
B
L
RM
1
2
3
4
5

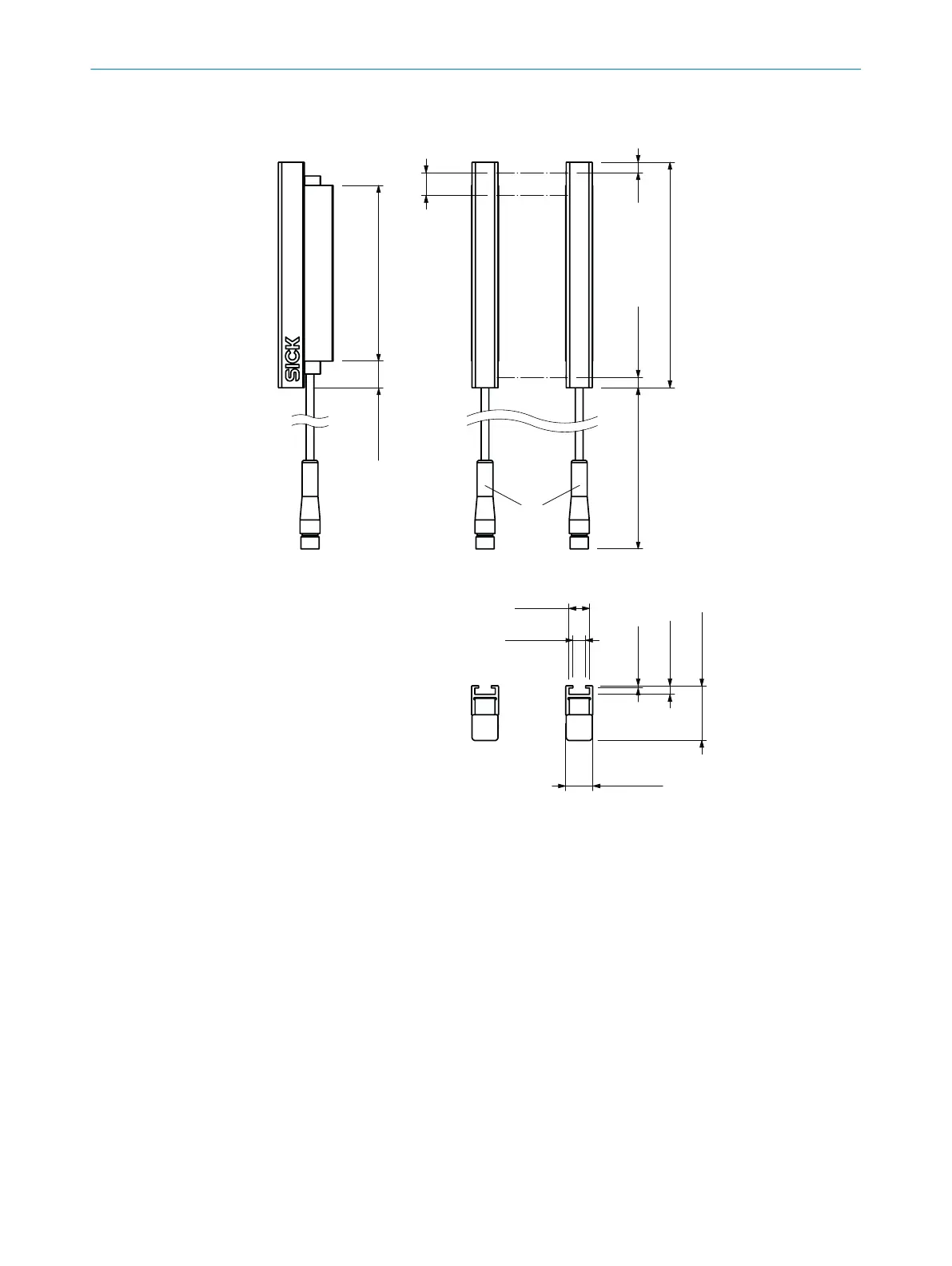

Figure 40: SLG-2 Flat dimensional drawing
1
First light beam
2
Last light beam
3
Beam separation d
c
4
Detection height
5
Cable with male connector
