3 Product description
3.1 Product ID
3.1.1 Type labels
1
2
3
4
5

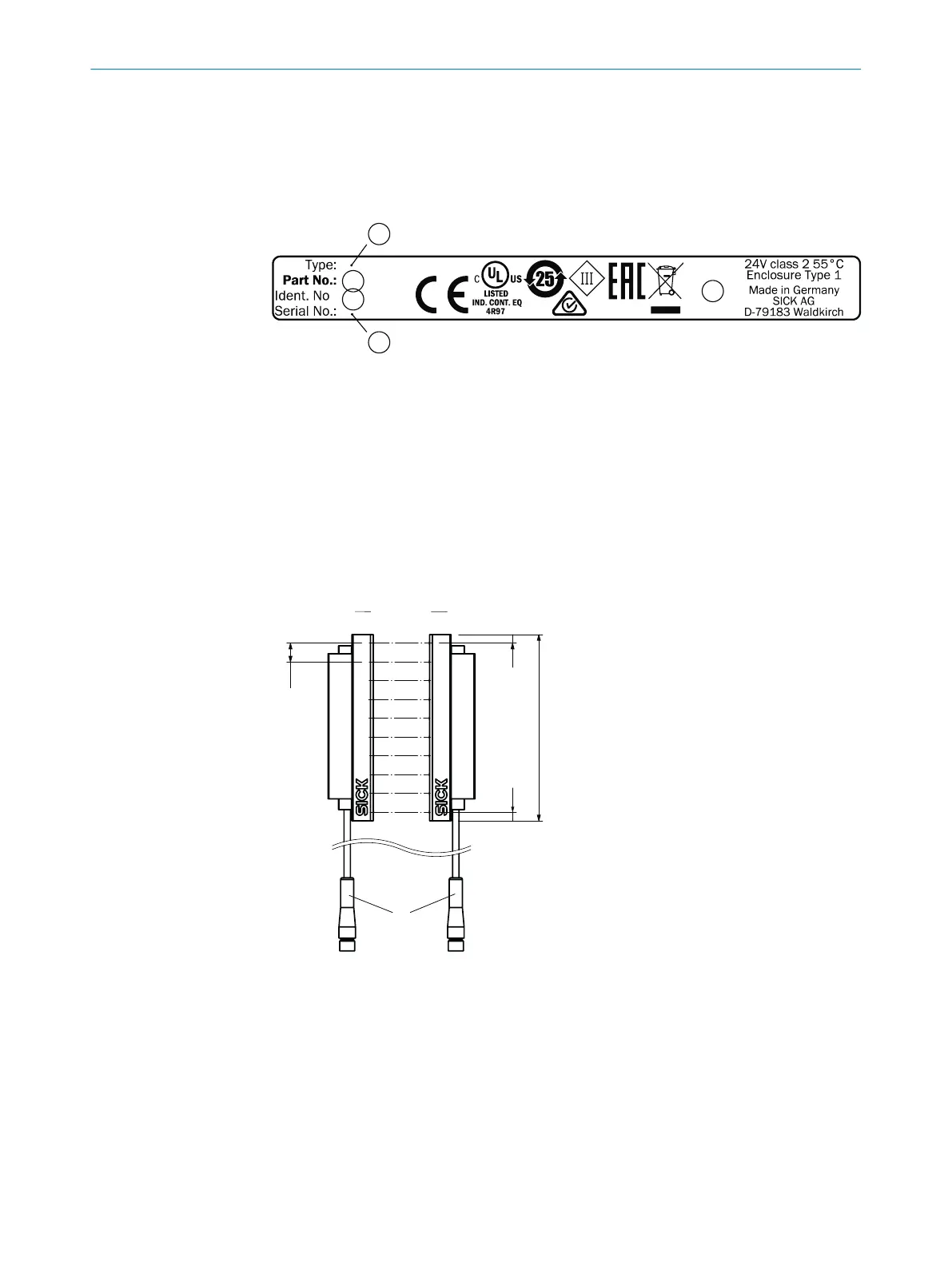

Figure 1: Type label
1
Device type
2
Part number (1xxxxxx)
3
Part number sender / receiver only (2xxxxxx)
4
Serial number: Dat.code + 4-digit sequential number + UL site identifier
5
Data Matrix code (part number 1xxxxxx + part number 2xxxxxx + serial number)
3.2 Product features and functions
3.2.1 Device view
B
3
1
2
4
5
A
r
s
Figure 2: Device view
r
Receiver (R)
s
Sender (T)
1
First light beam
2
Last light beam
3
Detection height
4
Beam separation d
c
5
Cable with male connector
