SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4200/5200
3.2 System components

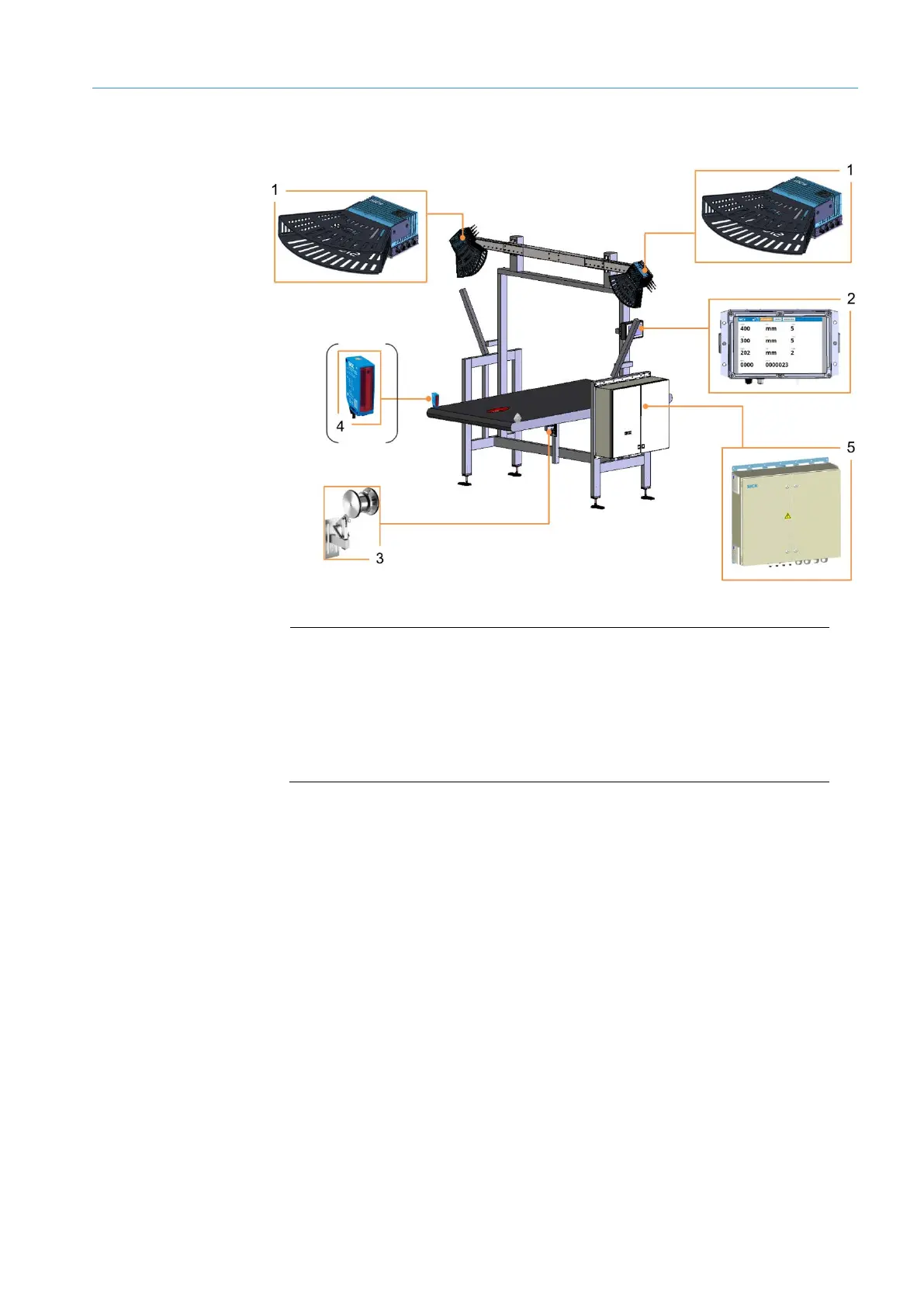

Fig. 1: Components of the VMS4200/5200
Legend
1 LMS4x21 2D LiDAR sensors with laser protective cover
2 LFT display - VMS5200 only
3 Incremental encoder (e.g., DFV60)
4 Photoelectric retro-reflective sensor for triggered systems (e.g., RAY26)
5 Cabinet with a SIM2000-2 Prime controller and power supply units
• Mount the system components according to the technical drawing on a frame provided
by the customer.
• Additional glare protection on the frame (beam blocker) prevents objects located
outside of the measuring range from being included in the calculation of measured
values.
