5.1 Connection overview

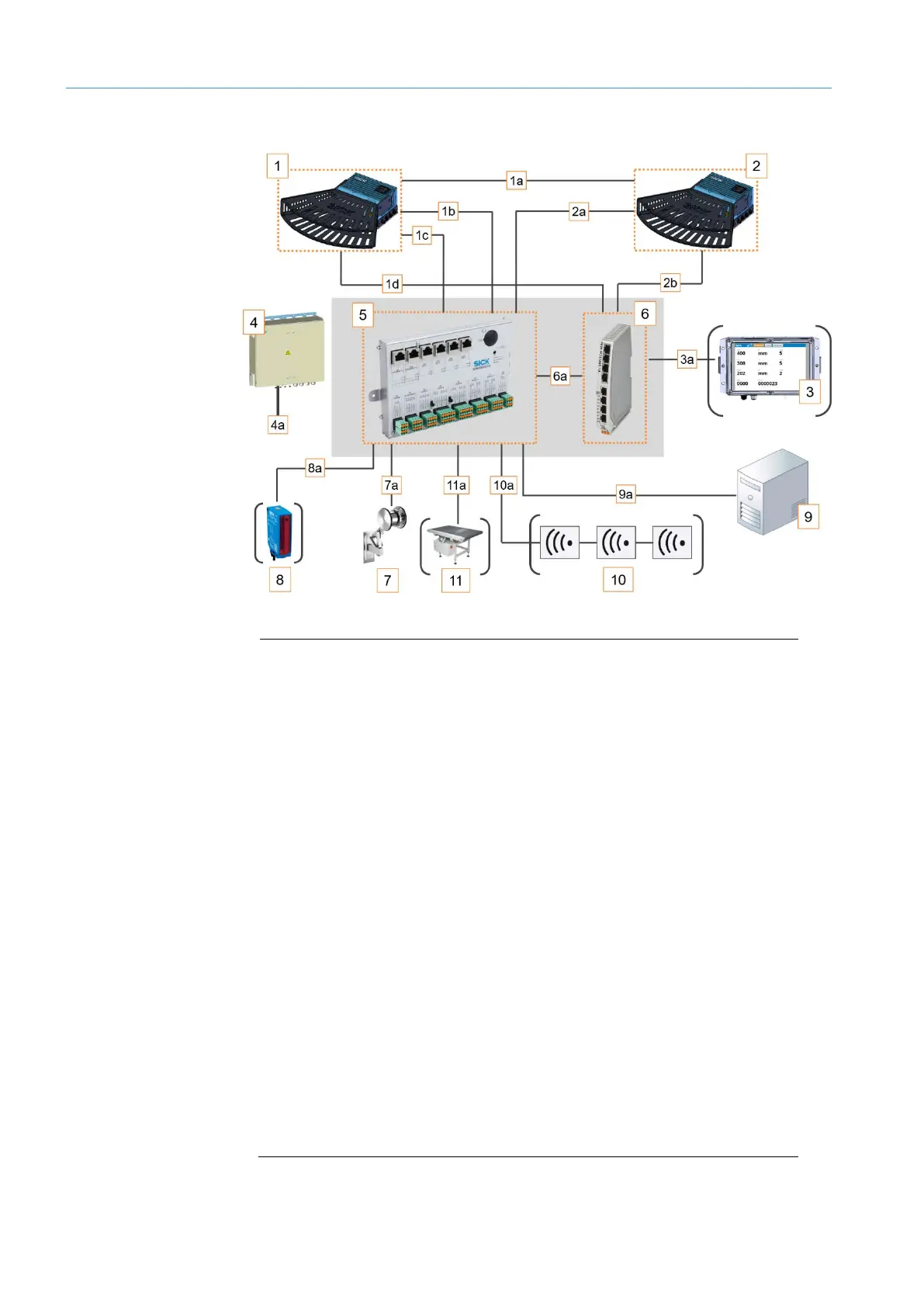

Fig. 55: Connection overview for the VMS4200/5200
Legend
1
2D LiDAR sensor (master)
1a CAN bus
1b
Increment and synchronization
1c
CAN bus
1d
Ethernet
2 2D LiDAR sensor (slave)
2a
Synchronization
2b
Ethernet
3
LFT display - VMS5200 only
3a Ethernet
4
Cabinet
4a
Feed 100 ... 264 V AC / 50 ... 60 Hz
5
SIM2000-2 Prime controller
6 LFT Ethernet switch
6a
Ethernet
7
Incremental encoder
7a
Encoder signal
8 Photoelectric retro-reflective sensor (optional)
8a
Trigger signal
9
Customer server
9a
Data output via Ethernet, fieldbus, or serial connection
10 Reading station (optional)
10a
CAN bus
11 Weighing station (optional)
11a
Data connection
