SICK VMS4200

3 SYSTEM DESCRIPTION
44
8026364 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4200/5200
Subject to change without notice

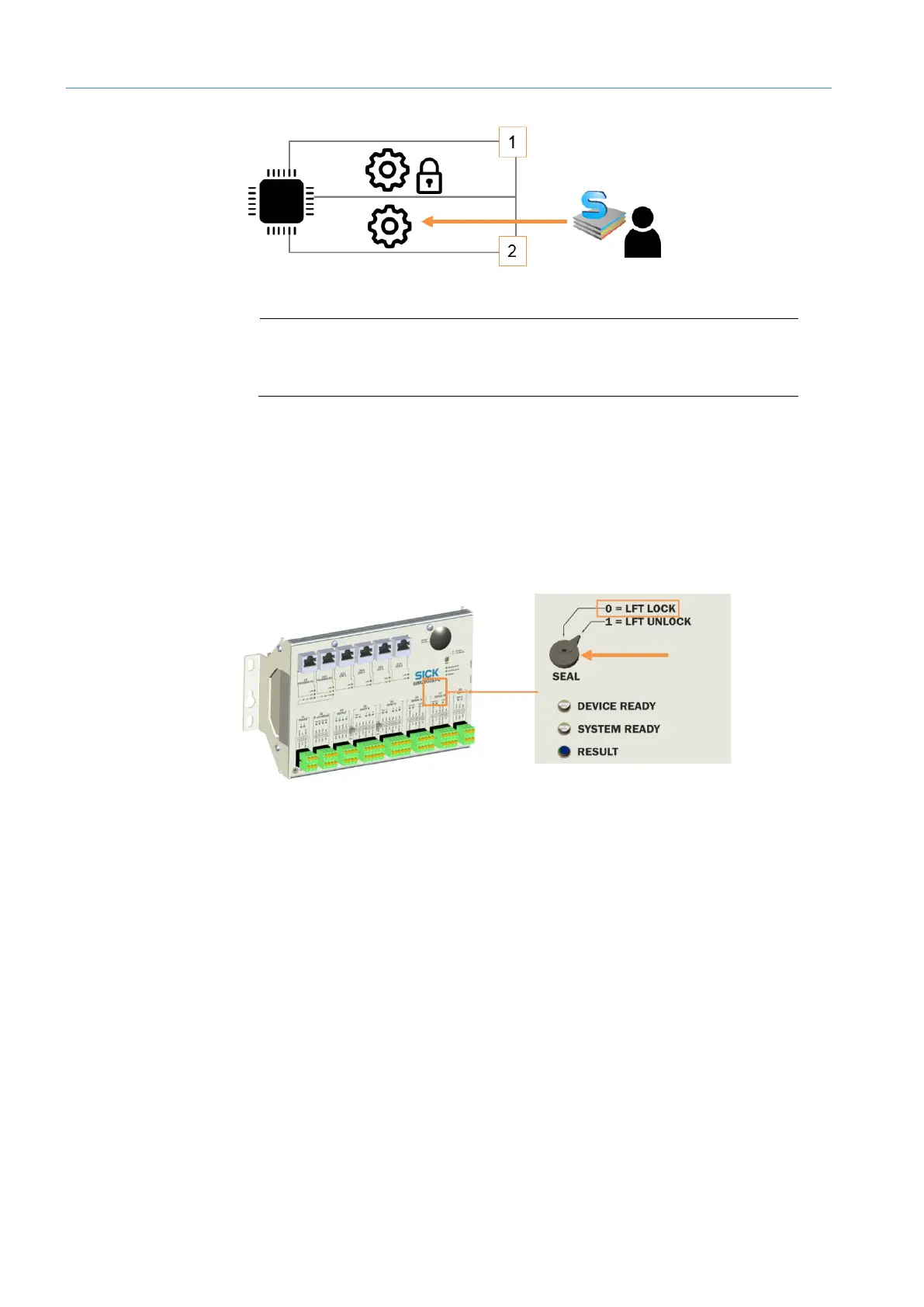

Fig. 35: Separation of firmware into an application part and a metrologically relevant part
Legend
1 Metrologically relevant part
2 Application
• The firmware is separated into an application part and a metrologically relevant part.
• The separation allows customer-specific parameters to be changed via the SOPAS
configuration software without violating the LFT conformity of the multi-dimensional
measurement system.
Fig. 36: Calibration switch for interlocking the metrological software parameters
• The software relevant to the LFT conformity with the accompanying LFT parameters is
protected by a calibration switch.
• The calibration switch is located on the front of the SIM2000-2 Prime ST-E controller.
• It is interlocked by turning the calibration switch to the zero position.
Firmware
Calibration switch
