Documentation and software
•
IODD: Device description file
•
IODD overview: List of IODD contents
•
IO-Link description: detailed description of the process data, service data, and
events of the IO-Link device
Technical Information: Photoelectric sensors, SICK Smart Sensors / IO-Link
•
SDD: Graphical user interface
•
Function Block Factory
•
SOPASET: Configuration software
Accessories
•
IO-Link-Master
•
Connecting cables
4 Mounting
Mount the sensorusing a suitable mounting bracket (see the SICK range of accesso‐
ries).
NOTE
Note the sensor’s maximum permissible tightening torque of < 0,4Nm.
Mounting with the background suppression principle of operation
Note the preferred alignment of the sensor relative to the movement direction of the
object, see figure 2.

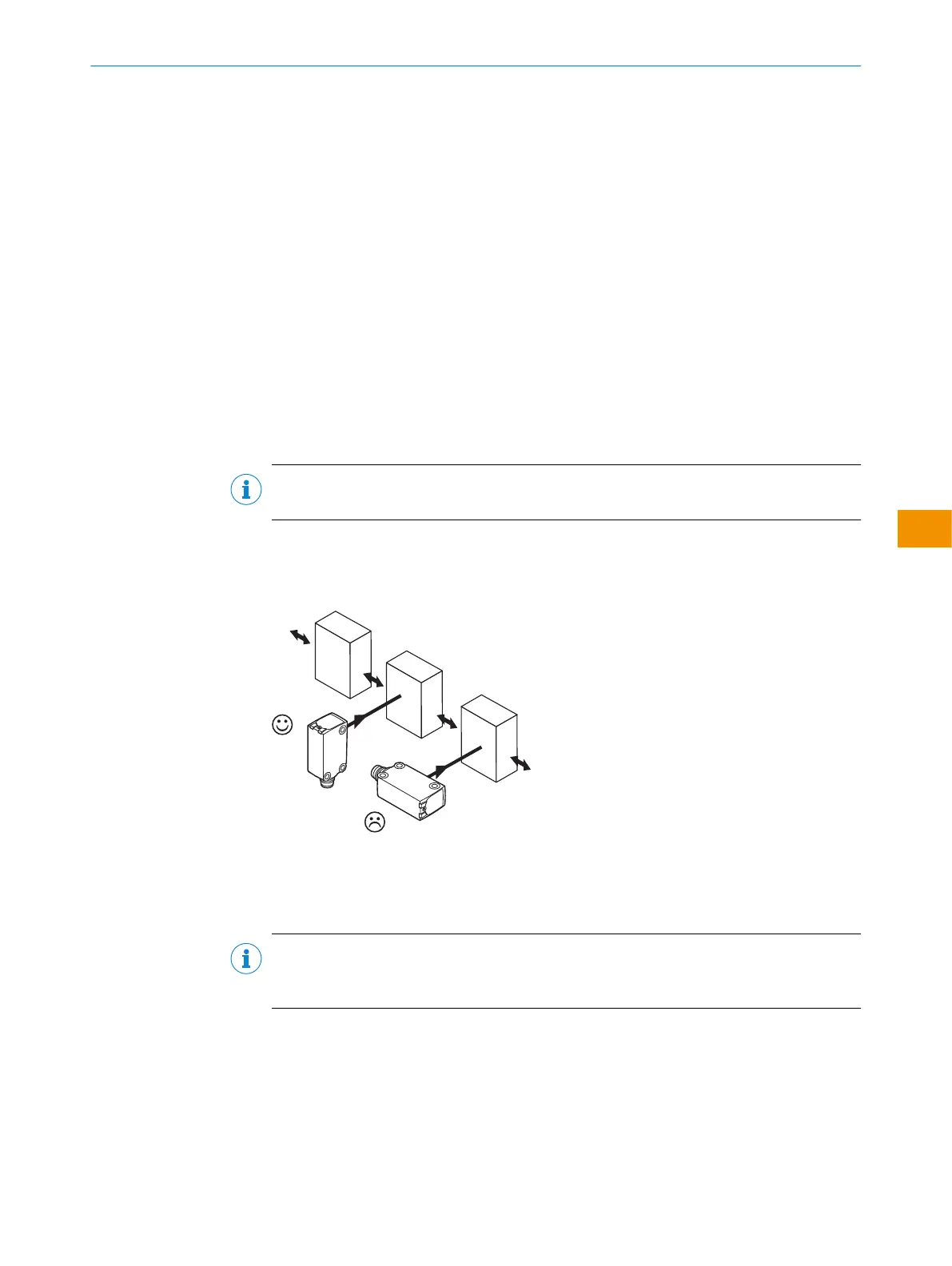

Figure 2: Alignment of the sensor relative to the object direction
Note the preferred direction of the object relative to the sensor, cf. see figure 11,
page 47.
NOTE
For the WTB4ST with linear light spot, there is no preferred direction that must be
observed.
