6.4 Configuration
Sensing range adjustment
NOTE
Allowed range of switching threshold values for background suppression:
•
WTB4SP-xxxxx1xx: 10mm … 250mm
•
WTB4SP-xxxxx2xx: 10mm … 130mm
•
WTB4ST-xxxxx1xx: 10mm … 150mm
NOTE
Configuration via BluePilot is shown in the following tutorial:
WTB4Sx-xxxxxx1x/WTB4Sx-xxxxxx1xAxx with potentiometer
Counterclockwise rotation: Sensing range reduced.
Clockwise rotation: Sensing range increased.

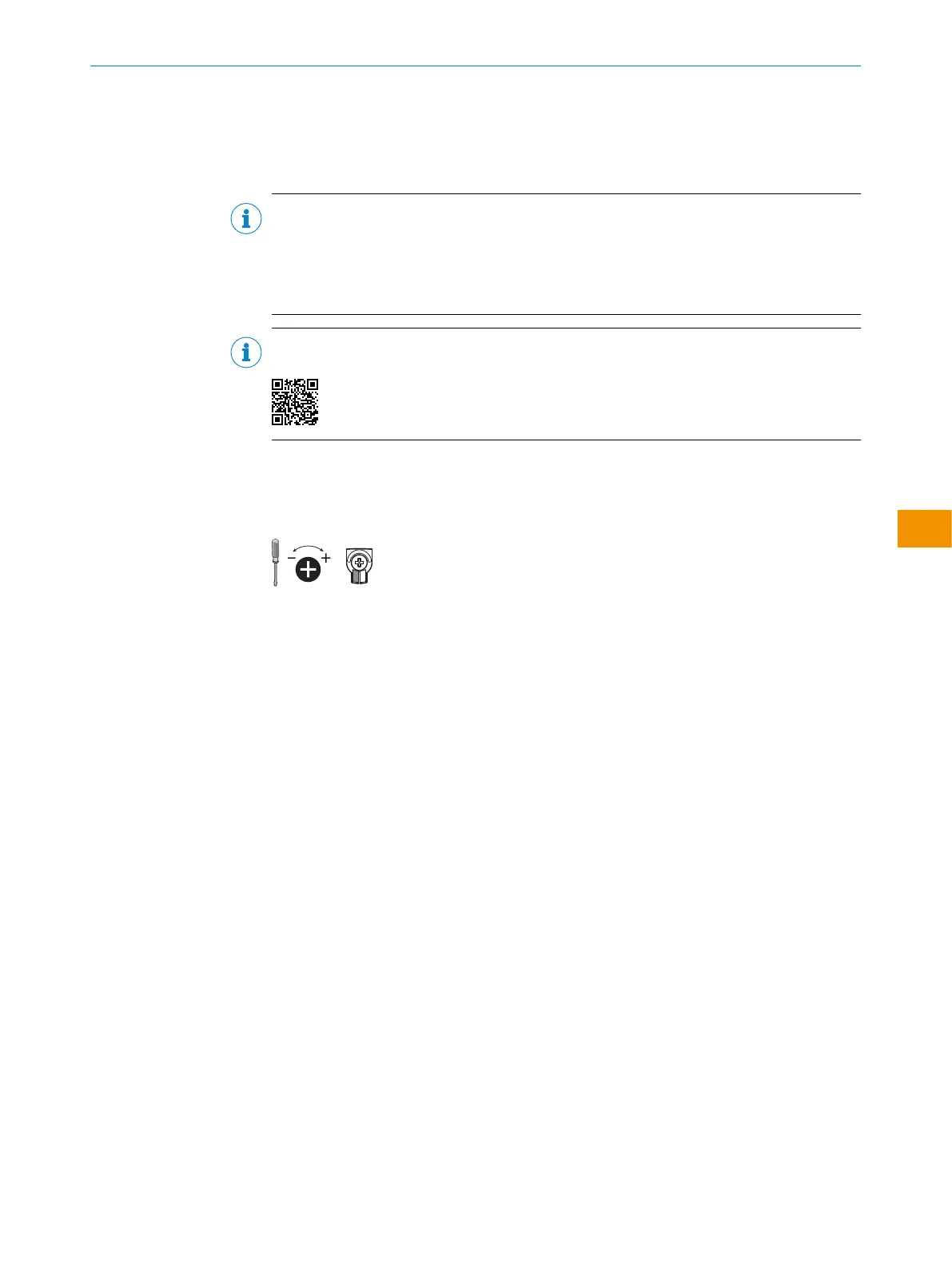

Figure 10: Adjustment via potentiometer
