Siegenia GENIUS 2.2 - Page 22



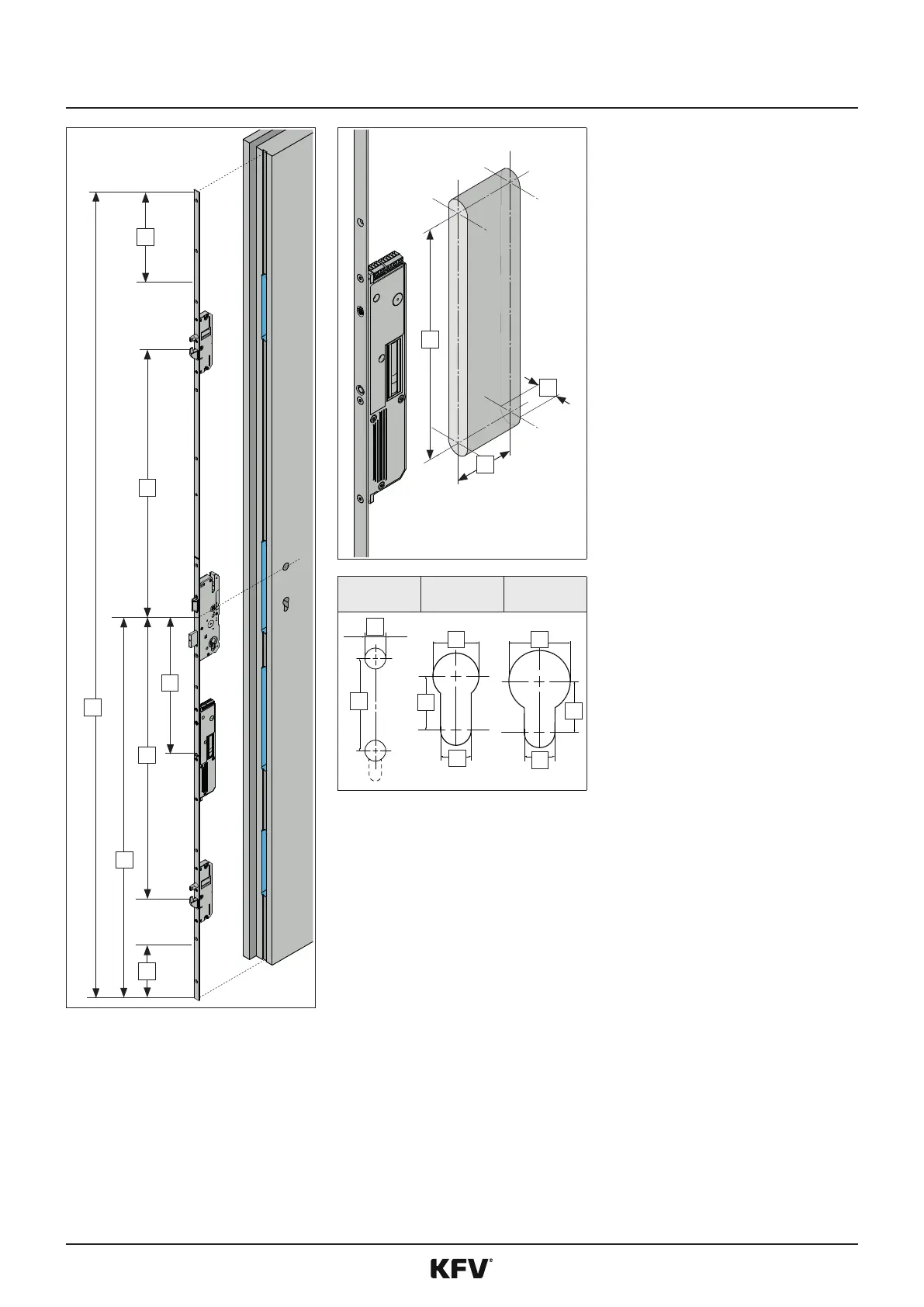

GENIUS 2.2, Electromechanical mul-point lock
02.202022/44 H39.ELEKS013EN-00
K
I
F
B
G
A
C
3
2
1

[1] 16,0 mm
[2] 55.0 mm
[3] 270.0 mm
Lever handle
milling
Prole cylin-
der milling
Round cylin-
der milling
E
1
2 5
6
3
4
4

[1] Ø 18.0 mm
[2] Ø 18.0 mm
[3] 21.0 mm
[4] 12.0 mm
[5] Ø 24.0 mm
[6] 20.0 mm
[E] PZ dimension
