Siegenia GENIUS 2.2 - AT Piece Adjustment

33/44

GENIUS 2.2, Electromechanical mul-point lock
33/4402.2020H39.ELEKS013EN-00
 

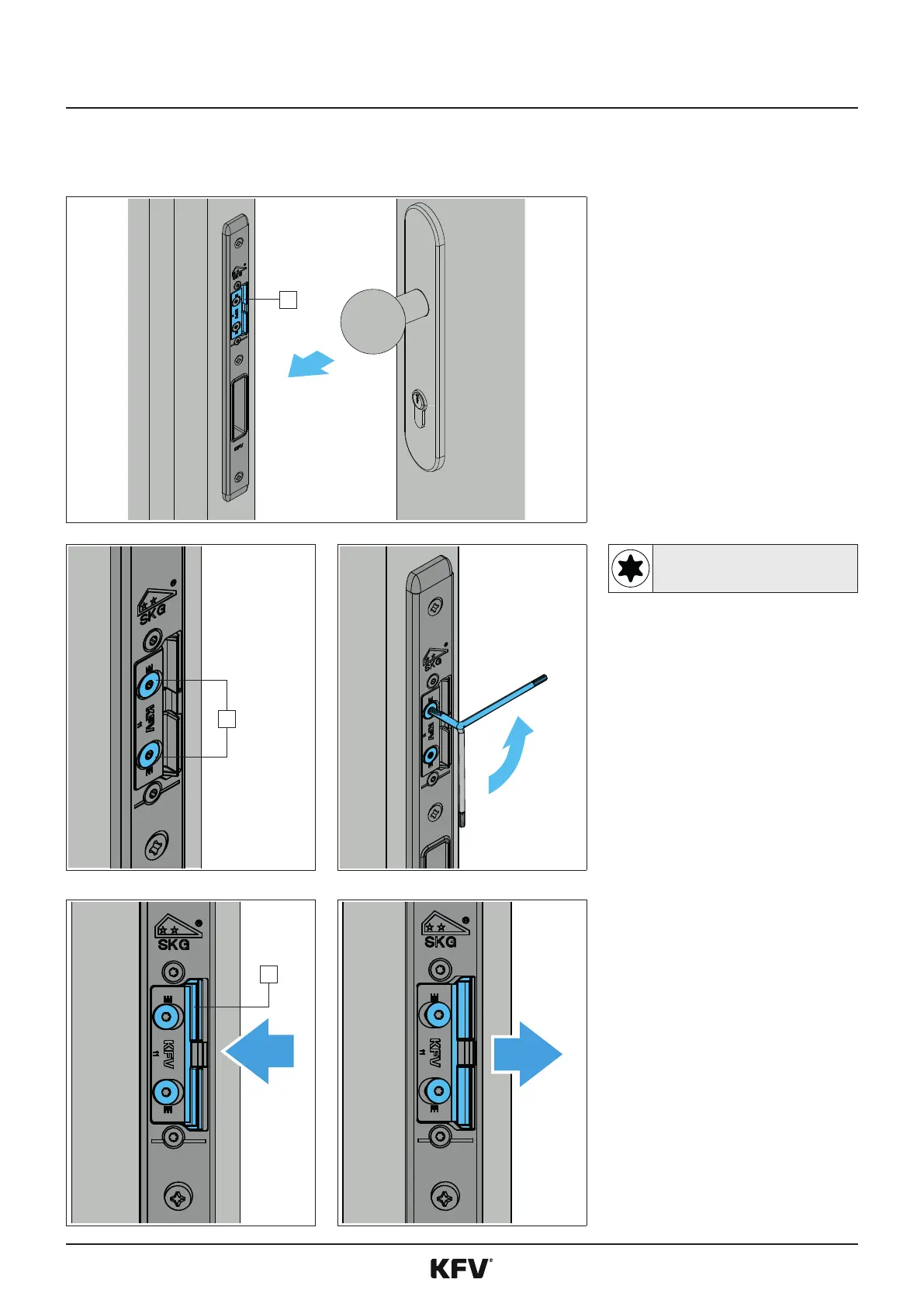

When the door is closed, the latch must engage in the AT piece with as lile play as possible. The AT piece is hori-
zontally adjustable for this purpose.
1
f
Close the door.
The latch must engage in the AT
piece [1] and the door must remain
locked.
• If the latch does not engage, or
if the pressure on the door seal
is too high, the AT piece must
be adjusted in the direcon of
the door leaf.
• The AT piece must be adjusted
in the direcon of the frame if
the latch has too much play.
1
T 10
f
Loosen the two adjustment
screws [1] .
1
f
Slide the ng part [1]
• The pressure will decrease in
the direcon of the door leaf.
• The pressure will increase in
the direcon of the frame.
