Siegenia GENIUS 2.2 - Frame Parts and Magnet Assembly; Magnet Variants Explained


GENIUS 2.2, Electromechanical mul-point lock
02.202028/44 H39.ELEKS013EN-00
 
 
The GENIUS 2.2. detects whether the door is open or shut via the magnec sensor.
The magnec sensor is triggered by the opposite magnets on the frame side.
Never allow the magnet to come into direct contact with the faceplate. This would magnese
the faceplate and the drive rods behind it. This will cause malfuncons in the magnec sen-
sor. For dimension [F], see chapter 3.1.
 


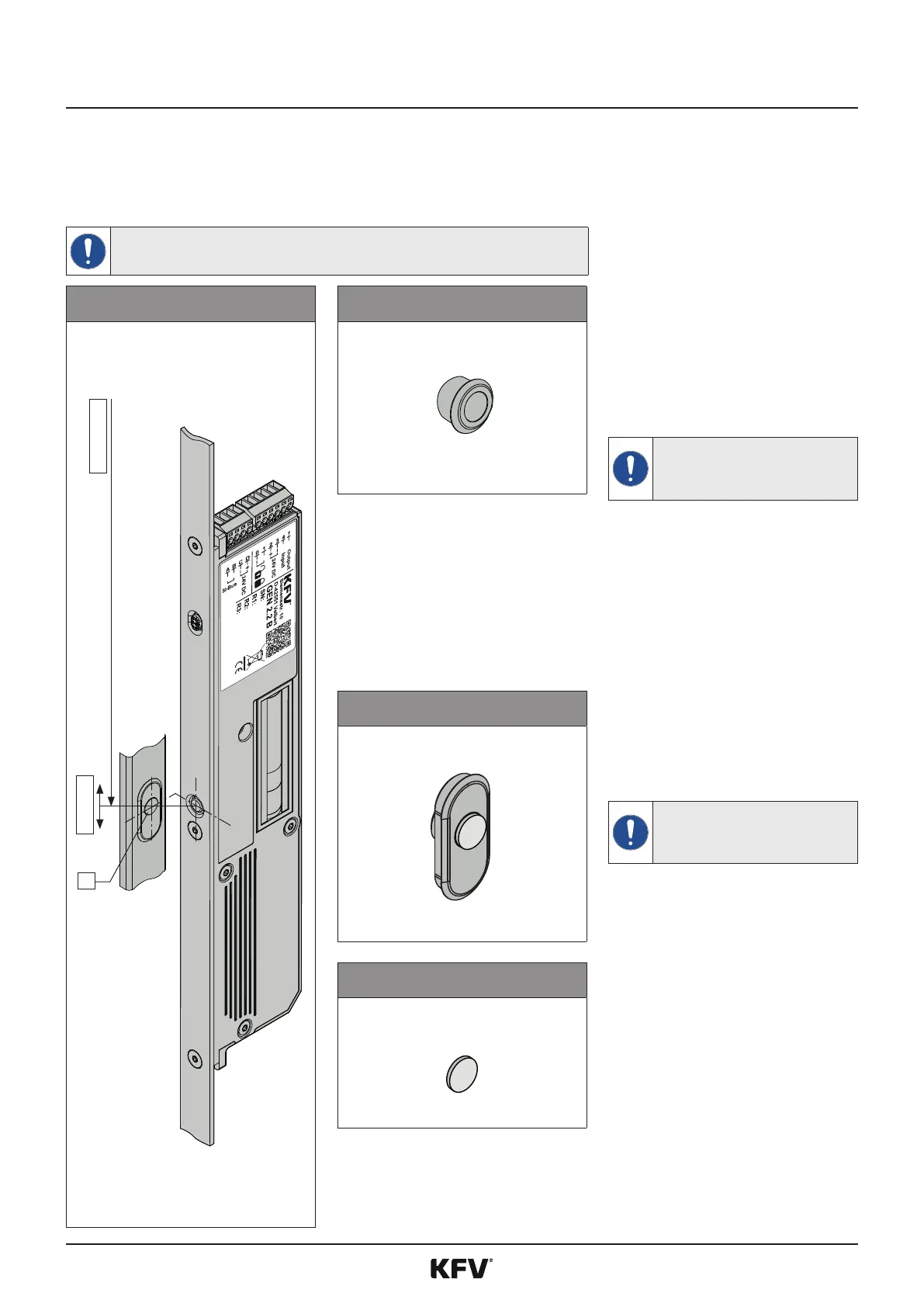

• According to the delivered ver-
sion, the locking rail is predrilled
(Ø 13 mm), or marked at the
relevant point, or has a fastening
hole at this point that must be
drilled to Ø 13 mm.
According to the prole of the locking
rail and prole of the frame, a milling
must be set for the magnet in the
frame.


• If using striker plates for mber
doors, the magnet and holder
can be recessed directly in the
frame.
± 3 mm
F + 1mm
1

-

• A single striker plate from series
23xx (without backing) must be
used.
According to the prole of the striker
plate and the frame, milling must
be carried out for the magnet in the
frame.


• As holes must not be drilled
through the secondary sash lock
bolt because of the drive rods
located behind, the self-adhe-
sive magnet must be used.
