Siegenia GENIUS 2.2 - Door Leaf Milling

21/44

GENIUS 2.2, Electromechanical mul-point lock
21/4402.2020H39.ELEKS013EN-00
 

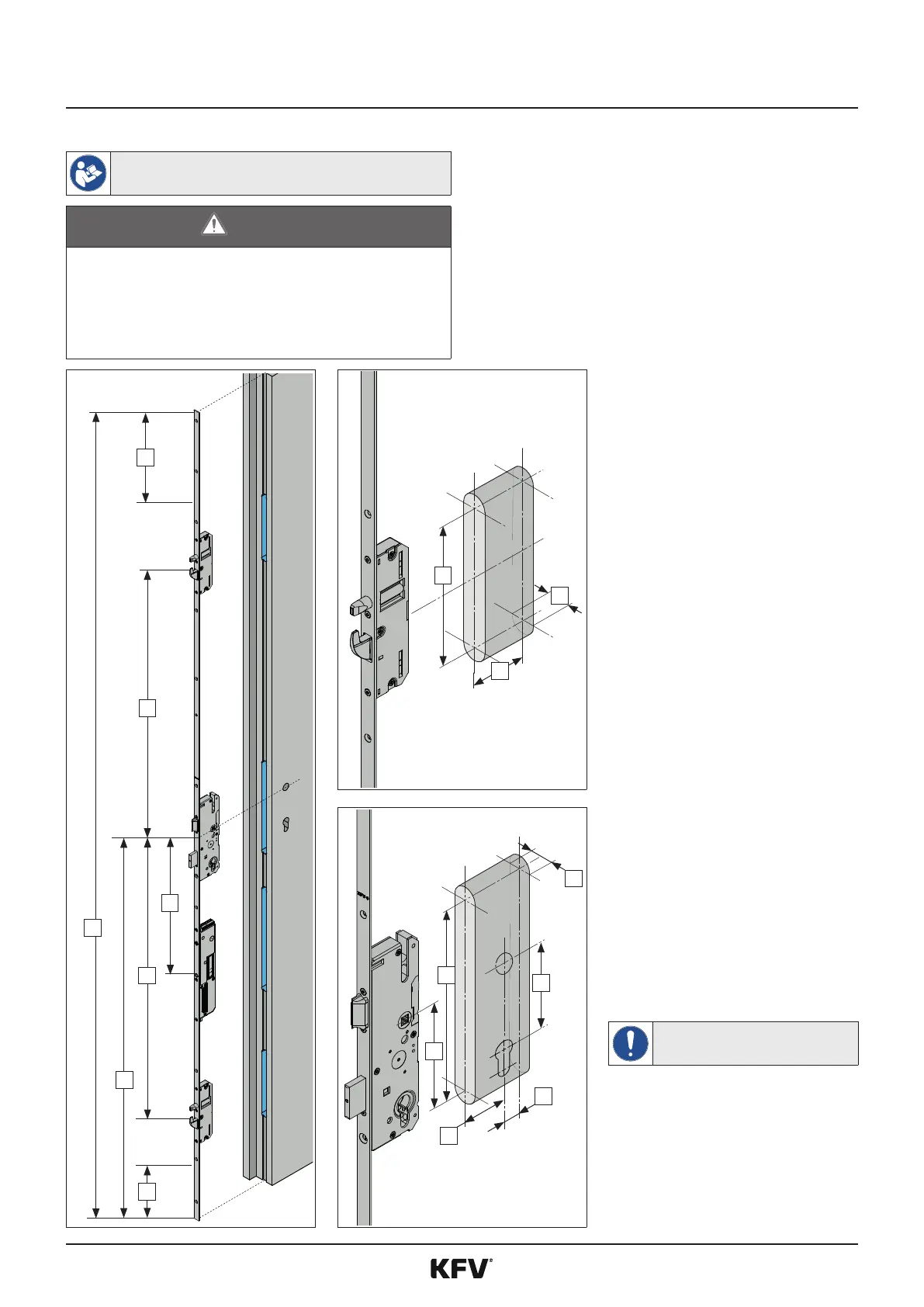

For determinaon of posion and dimensions, see chapter 3.1.
WARNING

During milling work, there will be swarf ying
around. You could suer eye injuries.
• Wear protecve goggles.
K
I
F
B
G
A
C
3
2
1

[1] 16,0 mm
[2] 42.5 + 1 mm
[3] 164.0 mm
2
3
D
L
E
1

[1] 16,0 mm
[2] 224.0 mm
[3] see dimensions for main lock
types
[L] Rear backset dimensions +
1 mm
[D] Backset
[E] PZ dimension
For all dimensions of the main lock,
see chapter 3.1.1.
