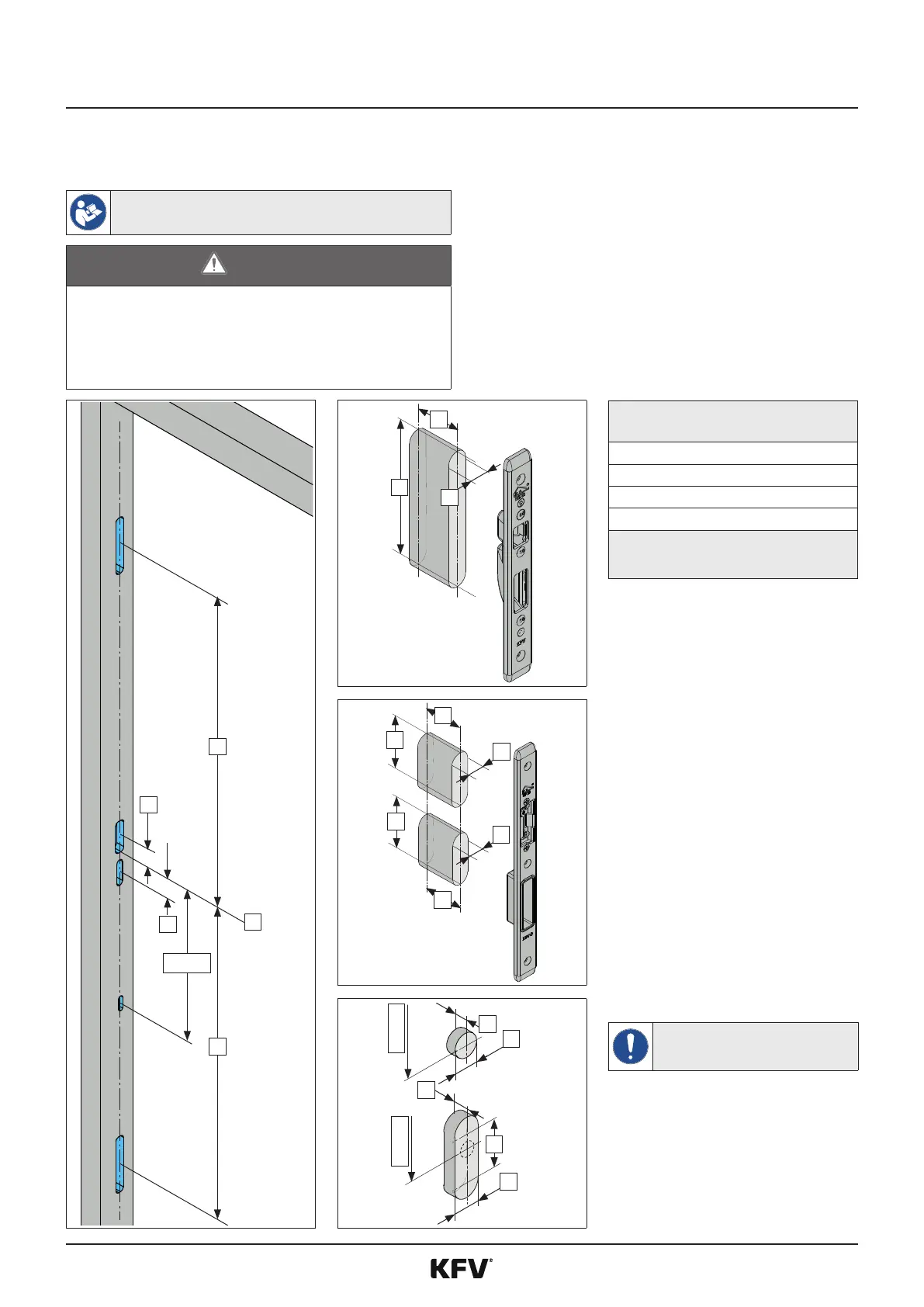

Siegenia GENIUS 2.2 - Frame Side Assembly; Frame Milling

27/44

GENIUS 2.2, Electromechanical mul-point lock
27/4402.2020H39.ELEKS013EN-00
6 
 
For determinaon of posion and dimensions, see chapter 3.1.
WARNING

During milling work, there will be swarf ying around.
You could suer eye injuries.
• Wear protecve goggles.
F +1 mm
C
B
M
N
X
2
3
1

E8H striker plate: Main lock
Q striker plate: Auxiliary box
E8QH: Locking rail
23xx: Bolt striker plate




[1] 21.0 mm
[2] 135.0 mm
[3] component depth + 1 mm
2
4
3
3
1
5
-

[1] 23.0 mm
[2] 72.0 mm
[3] component depth + 1 mm
[4] 62.0 mm
[5] 16.0 mm
4
1
3
2
2
F + 1 mm
F + 1 mm

According to the prole of the door, a
hole or milling must be carried out for
the round or oval magnets.
[1] 8.0 mm
[2] 13.0 mm
[3] 4.0 mm
[4] 17.0 mm
