Siegenia GENIUS 2.2 - Q Adjustment Procedure

35/44

GENIUS 2.2, Electromechanical mul-point lock
35/4402.2020H39.ELEKS013EN-00
 

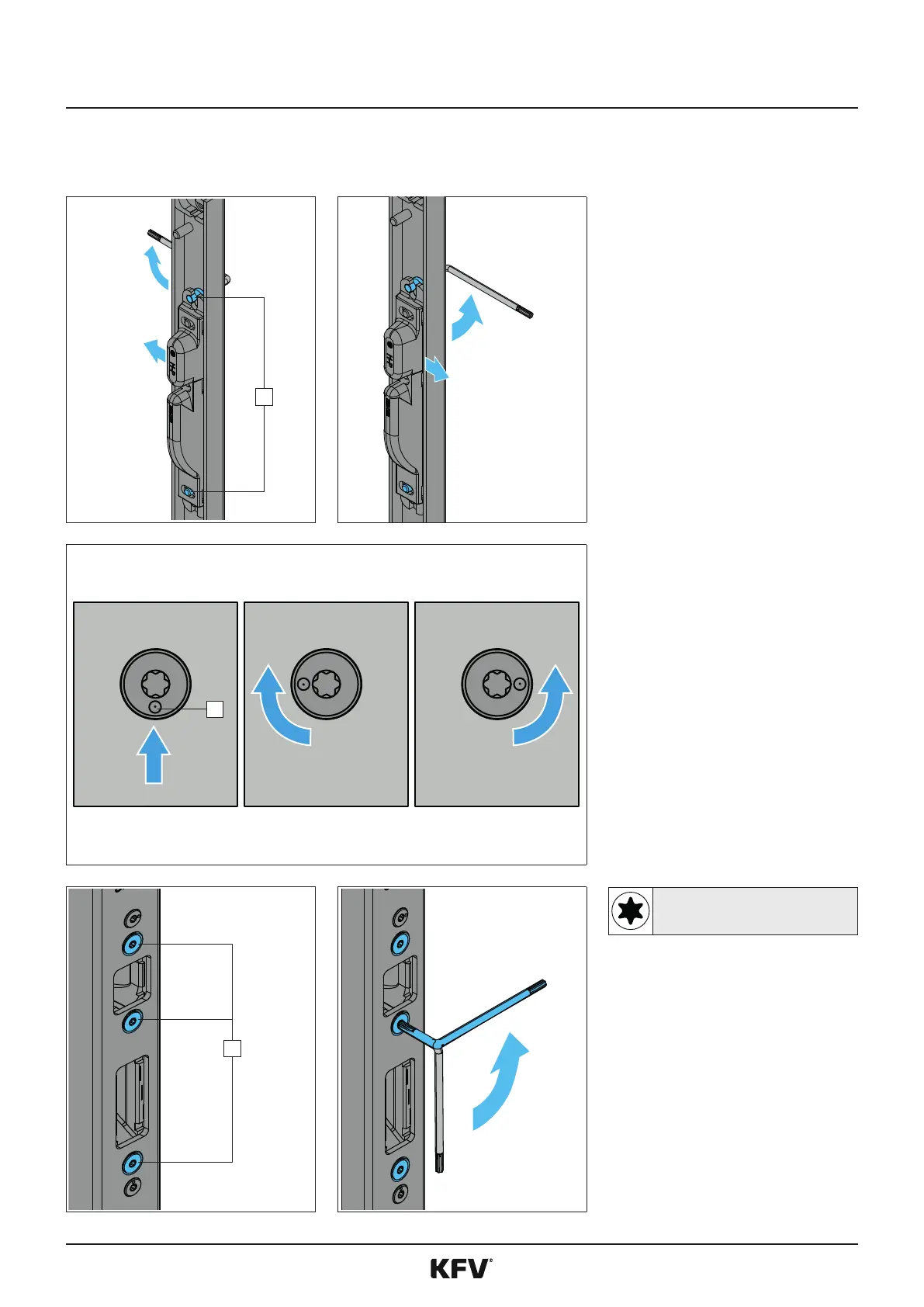

The Q adjustment is moved laterally by ± 2.5 mm via two eccentric screws [1]; this lateral adjustment changes the
contact pressure of the door on the frame seal.
1
• If the contact pressure of the
door on the frame seal is too
low, the Q adjustment must be
moved in the direcon of the
frame seal.
• If the contact pressure of the
door on the frame seal is too
high, the Q adjustment must
be moved in the direcon of
the door leaf.
1
There is a marking [1] on the eccen-
tric screw.
The default seng of the Q ad-
justment is in neutral posion. The
marking points downwards.
The max. travel range of the Q
adjustment is reached when the
marking is in a 90° posion.
1
T 10
f
Loosen the three xing screws
[1] of the Q adjustment.
