Siei ARTDriveG - Analog Inputs Regulation Board

110 • Chapter 7 - Parameters Description ARTDriveG Instruction manual
Analog Inputs Regulation Board

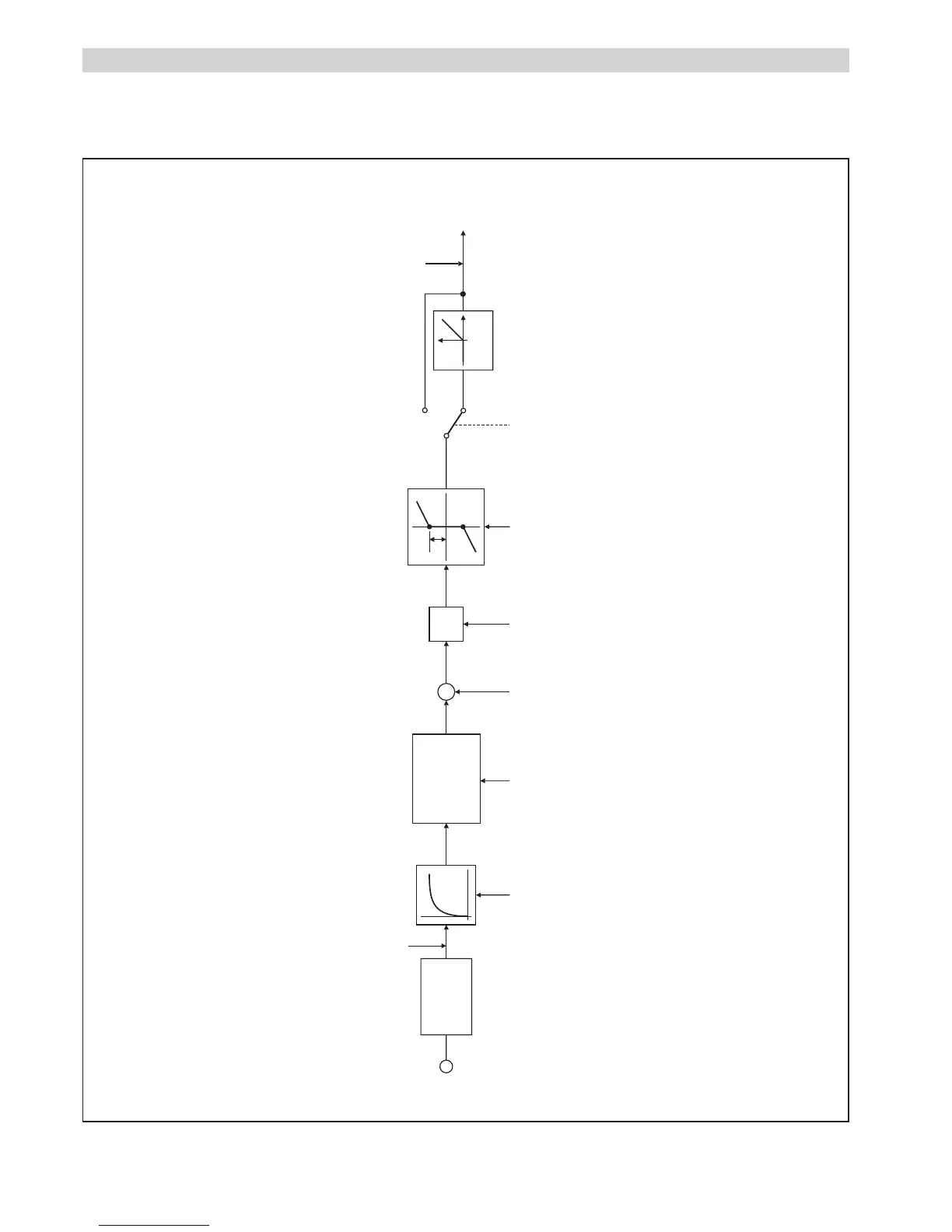

The figure below describes the block diagram of the standard "Analog Inputs" of the drive.
10 bits + sign
Converter
Selection Ref. Type
+
+
I204 I214 I224
I200 I210 I220
I201 I211 I221
X
Offset
I202 I212 I222
Gain
min
I203 I213 I214
Clamp neg
value
0 Bipolar
1-2 Unipolar
I200 I210 I220
To Drive
Terminal
LPF
Monitor
d202 d212 d222
Monitor
d201 d211 d221
Figure 7.4.1: Analog Inputs
