Siei ARTDriveG - Internal Fuses; Chokes; Filters (Optional)

48 • Chapter 5 - Wiring Procedure ARTDriveG Instruction manual
5.6.3 Internal Fuses
Table 5.6.3.1: Internal Fuses
Drive type Designation Protection of Fuse (source) Fitted on:
Power card PG33-4
Power card PG33-5
6750 ... 71320
F3
Fans
transformer
2.5A 6.3x32
(Bussmann: MDL 2.5, Gould
Shawmut: GDL1-1/2, Siba: 70 059
76.2,5 , Schurter: 0034.5233)
Bottom cover (power terminals side)
6110 … 8200
F3
Fans
transformer
2.5A 6.3x32
(Bussmann: MDL 2.5, Gould
Shawmut: GDL1-1/2, Siba: 70 059
76.2,5 , Schurter: 0034.5233)
Bottom cover (power terminals side)
agy0702
4025…5075
AGy…-5 (575V) AGy…-4 (230V…480V)
Power card PG33-4N
2Afast5x20mm(Bussmann:
SF523220 or Schurter:
FSF0034.1519 or Littlefuse:
217002)
4220...71320
F1 +24V
2Afast5x20mm(Bussmann:
SF523220 or Schurter:
FSF0034.1519 or Littlefuse:
217002)
+24VF1
5.7 Chokes / Filters (Optional)
NOTE!
A three-phase inductance should be connected on the AC Input side in order to limit the input RMS
current of AGy series Drives. The inductance can be provided by an AC Input choke or an AC Input
transformer.
NOTE!
For the use of output sinusoidal filters, please contact the nearest SIEI office.

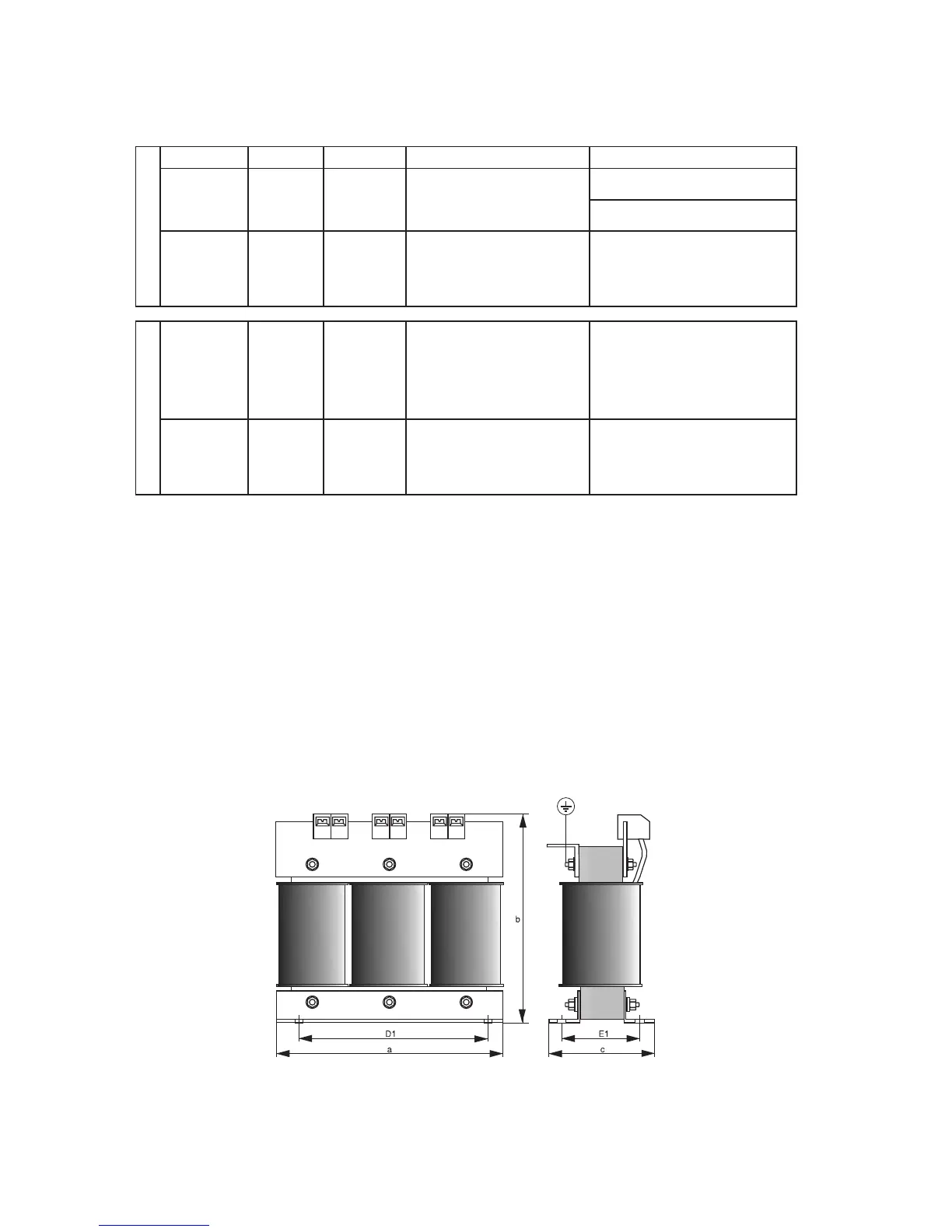

Figure 5.7.1: Input / output chokes dimensions
