P.206
n
t
Ramp Profile
Set
P.201
I
t

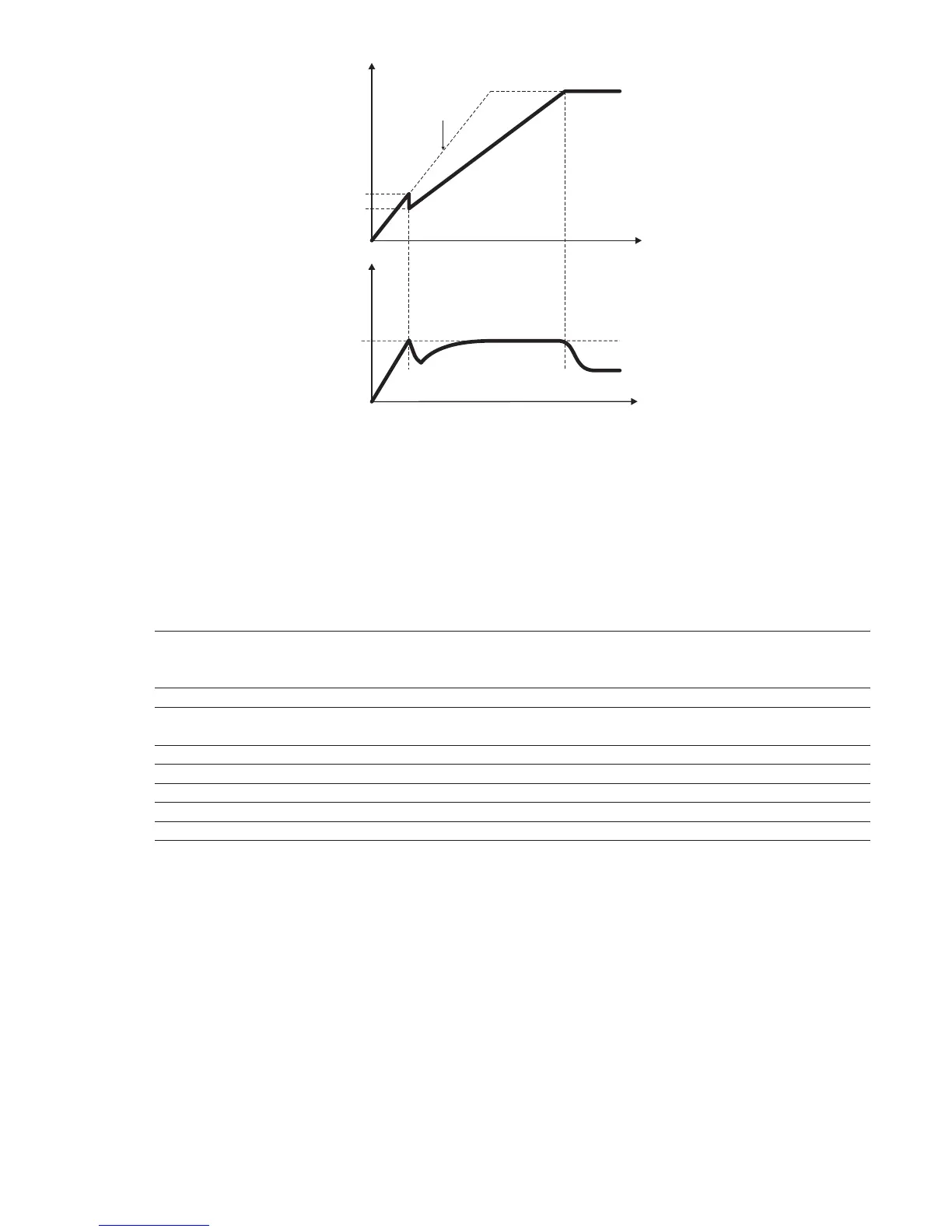

Figure 7.6.9: Current Limit Control in Ramp
A signalling of the "current limit" condition is available on the digital output as "Current limit".
A signalling of the "overcurrent" condition is available on the digital output as "Alarm state".
P.207 Decel curr lim (Current limit in deceleration ramp)
Value of the current limit during the deceleration ramp.
It is expressed as percentage of the nominal current of the drive (see also parameter d.950, chapter DISPLAY).
Code LCD display [Code] & LCD select. Default MIN MAX Unit Variation IPA
P.200 Ramp Currlim Mode [0] None 0 0 2 427
[1] PI Limit regulator
[2] On/Off Ramp
P.201 Accel curr lim (*) 20 (*) % of I nom 1 428
P.202 En lim in steady [0] Disable 0 0 1 429
[1] Enable
P.203 Curr lim steady (*) 20 (*) % of I nom 1 430
P.204 Curr ctrl P-gain 10.0 0.1 100.0 % 0.1 431
P.205 Curr ctrl I-gain 30.0 0.1 100.0 % 0.1 432
P.206 Curr ctr feedfwd 0 0 250 % 1 433
P.207 Decel curr lim (*) 20 (*) % of Inom 1 494
